Fairchild FDD2572 FDU2572 N-Channel UltraFET® Trench MOSFET 150V, 29A, 54mOhm Data Sheet

Summary

This datasheet details the FDD2572/FDU2572 N-Channel PowerTrench MOSFET, a robust high-voltage switch built for demanding automotive applications. The manual provides comprehensive technical specifications, including electrical characteristics, thermal performance curves, and detailed switching parameters. It is essential reading for engineers designing reliable power conversion solutions, such as DC/DC converters, Off-Line UPS systems, and advanced 24V/48V vehicle load control units.

📄 Preview PAGE OF 11

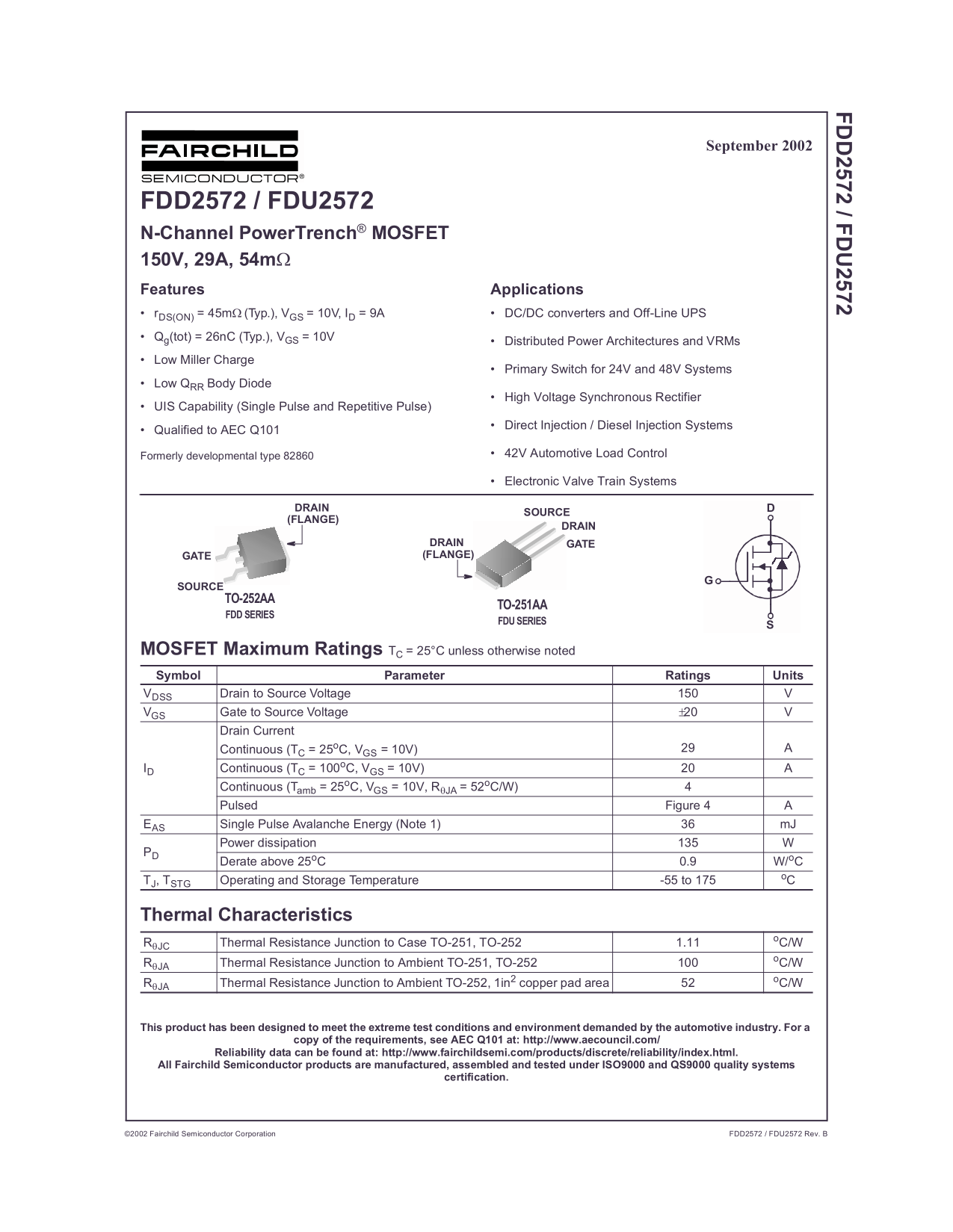

Page 1 Text Content

September 2002

FDD2572 / FDU2572 N-Channel Power Trench® MOSFET 150V, 29A, 54mΩ Features Applications r DS(ON) = 45mΩ (Typ.), VGS = 10V, ID = 9A DC/DC converters and Off-Line UPS Qg(tot) = 26n C (Typ.), VGS = 10V

Distributed Power Architectures and VRMs

Low Miller Charge

Primary Switch for 24V and 48V Systems

Low QRR Body Diode

High Voltage Synchronous Rectifier

UIS Capability (Single Pulse and Repetitive Pulse)

Direct Injection / Diesel Injection Systems

Qualified to AEC Q101

Formerly developmental type 82860 42V Automotive Load Control

Electronic Valve Train Systems

DRAIN

SOURCE

(FLANGE)

DRAIN

DRAIN GATE GATE (FLANGE)

SOURCE

TO-252AA

TO-251AA

FDD SERIES

FDU SERIES

MOSFET Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain to Source Voltage

VGS Gate to Source Voltage ±20 Drain Current

AContinuous (TC = 25o C, VGS = 10V)

ID Continuous (TC = 100o C, VGS = 10V)

Continuous (Tamb = 25o C, VGS = 10V, RθJA = 52o C/W) Pulsed Figure 4 EAS Single Pulse Avalanche Energy (Note 1) m J Power dissipation

Derate above 25o C 0.9 W/o C

TJ, TSTG Operating and Storage Temperature -55 to 175

Thermal Characteristics

RθJC Thermal Resistance Junction to Case TO-251, TO-252 1.11

RθJA Thermal Resistance Junction to Ambient TO-251, TO-252

RθJA Thermal Resistance Junction to Ambient TO-252, 1in2 copper pad area

This product has been designed to meet the extreme test conditions and environment demanded by the automotive industry. For a

copy of the requirements, see AEC Q101 at: http://www.aecouncil.com/

Reliability data can be found at: http://www.fairchildsemi.com/products/discrete/reliability/index.html.

All Fairchild Semiconductor products are manufactured, assembled and tested under ISO9000 and QS9000 quality systems

certification.

2002 Fairchild Semiconductor Corporation FDD2572 / FDU2572 Rev. B

Page Summary Contents For Fairchild FDD2572 FDU2572 N-Channel UltraFET® Trench MOSFET 150V, 29A, 54mOhm Data Sheet

Page 1 September 2002 FDD2572 / FDU2572 N-Channel Power Trench® MOSFET 150V, 29A, 54mΩ Features Applications r DS(ON) = 45mΩ (Typ.), VGS = 10V, ID = 9A DC/DC converters and Off-Line UPS Qg(tot) = 26n C (Typ....
Page 2 2572 / F Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD2572 FDD2572 TO-252AA 330mm 16mm 2500 units FDU2572 FDU2572 TO-251AA Tube N/A 75 units ...
Page 3 2572 / F Typical Characteristics TC = 25°C unless otherwise noted IS IP IO LT IP IE , P θJ , N IZ 1.2 IM VGS = 10V TC, CASE TEMPERATURE (o C) TC, CASE TEMPERATURE (o C) Figure 1. Normalized Power Diss...
Page 4 2572 / F Typical Characteristics TC = 25°C unless otherwise noted IN IS TA , D IN , D IN 10µs STARTING TJ = 25o C OPERATION IN THIS STARTING TJ = 150o C AREA MAY BE 10ms LIMITED BY r DS(ON) If R = 0 S...
Page 5 2572 / F Typical Characteristics TC = 25°C unless otherwise noted , C PA IT IZ VGS = VDS, ID = 250µA ID = 250µA TJ, JUNCTION TEMPERATURE (o C) TJ, JUNCTION TEMPERATURE (o C) Figure 11. Normalized Gate...
Page 6 2572 / F Test Circuits and Waveforms VDS BVDSS VARY t P TO OBTAIN REQUIRED PEAK IAS RG 0V IAS Figure 15. Unclamped Energy Test Circuit Figure 16. Unclamped Energy Waveforms VDD Qg(TOT) VGS = 10V DUT V...
Page 7 2572 / F Thermal Resistance vs. Mounting Pad Area The maximum rated junction temperature, TJM, and the thermal resistance of the heat dissipating path determines RθJA = 33.32+ 23.84/(0.268+Area) EQ.2 ...
Page 8 2572 / F PSPICE Electrical Model .SUBCKT FDD2572 2 1 3 ; rev April 2002 CA 12 8 5.5e-10 Cb 15 14 7.4e-10 LDRAIN Cin 6 8 1.7e-9 DPLCAP DRAIN Dbody 7 5 Dbody MOD RLDRAIN Dbreak 5 11 Dbreak MOD RSLC1 DBR...
Page 9 2572 / F SABER Electrical Model REV April 2002 ttemplate FDD2572 n2,n1,n3 electrical n2,n1,n3 var i iscl dp..model dbodymod = (isl=6.0e-11,nl=1.14,rs=3.9e-3,trs1=3.5e-3,trs2=3.0e-6,cjo=1.1e-9,m=0.63,t...
Page 10 2572 / F SPICE Thermal Model th JUNCTION REV 26 April 2002 FDD2572 CTHERM1 TH 6 3.8e-3 CTHERM2 6 5 4.0e-3 CTHERM3 5 4 4.2e-3 RTHERM1 CTHERM1 CTHERM4 4 3 4.3e-3 CTHERM5 3 2 8.5e-3 CTHERM6 2 TL 3.0e-2 R...
Page 11 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FACT...

Manual Details

Brand Fairchild
Pages 11
File Size 247.75 KB
Published July 07, 2026
3 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the maximum Drain to Source Voltage ($ ext{V}_{ ext{DSS}}$) rating?

The specified breakdown voltage ($ ext{V}_{ ext{DSS}}$) is 150 V.

Does this MOSFET meet automotive industry standards?

Yes, it is qualified to AEC Q101 and designed for extreme test conditions demanded by the automotive sector.

How do I determine if higher ambient temperatures limit current?

Power dissipation must be derated above 25°C, following equations shown in Figures 3 and 4, such as $ ext{I} = ext{I}_{25} ( ext{T}/ ext{T}_{ ext{max}})$.

What types of applications are suitable for this MOSFET?

It can be used in DC/DC converters, Offline UPS, Distributed Power Architectures, and various automotive systems like Diesel or Electronic Valve Train Systems.
