FAIRCHILD 74LCX04 Technical Data Sheet
Summary
This datasheet from Fairchild Semiconductor covers the 74LCX04 low-voltage hex inverter with 5 V tolerant inputs, fabricated in advanced CMOS technology for high-speed operation at low power. The device operates from a 2.3 V to 3.6 V supply with a maximum propagation delay of 5.2 ns at 3.3 V, supports 24 mA output drive at 3.0 V, and features patented noise and EMI reduction circuitry with power-down high-impedance inputs and outputs. Package options include 14-lead SOIC, SOP, TSSOP, and a leadl

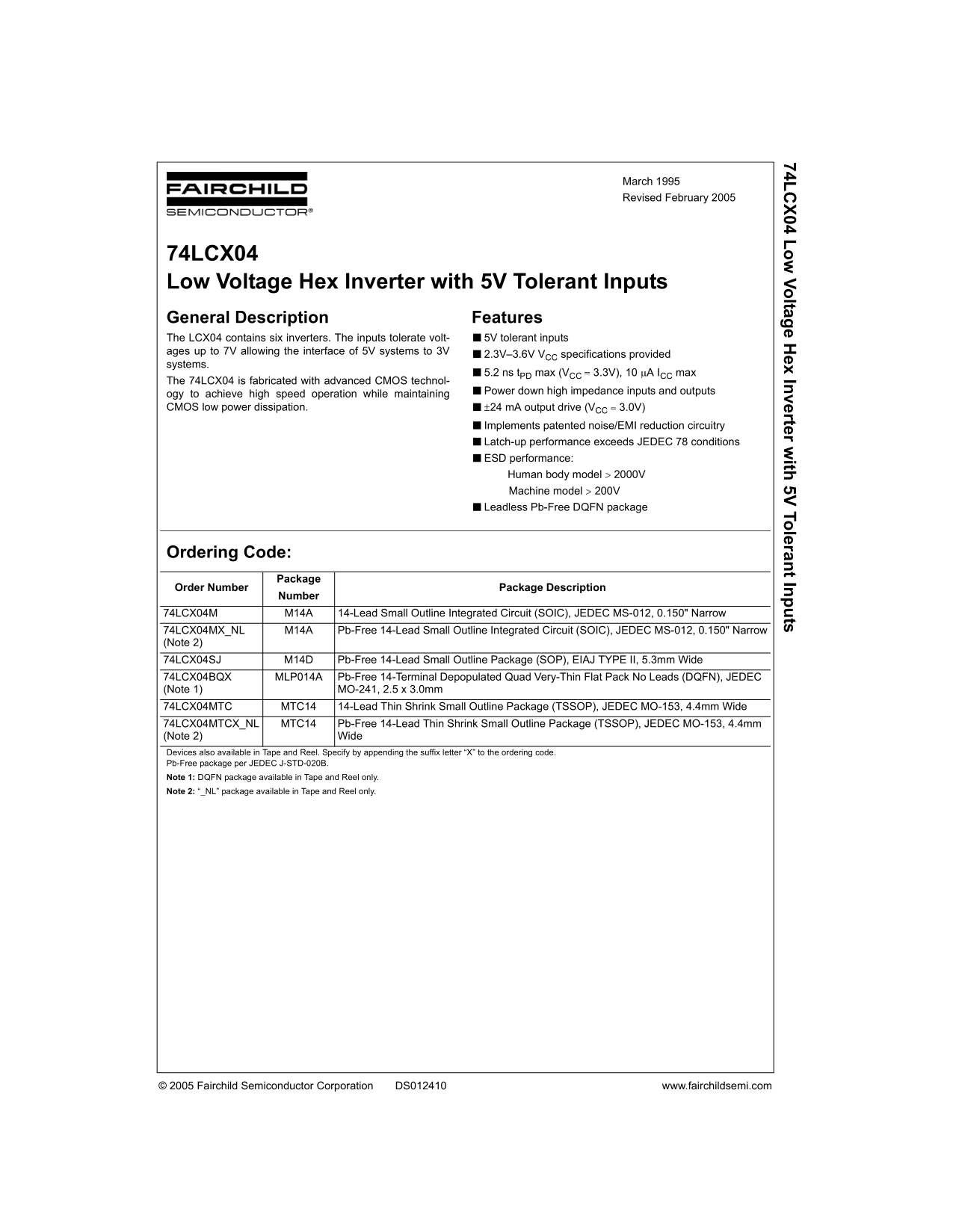

Page 1 Text Content
74L 04 L ltag e H ex In verter w ith 5V To leran t In ts
March 1995 Revised February 2005
74LCX04 Low Voltage Hex Inverter with 5V Tolerant Inputs General Description Features The LCX04 contains six inverters. The inputs tolerate volt- ■5V tolerant inputs ages up to 7V allowing the interface of 5V systems to 3V
■2.3V–3.6V VCC specifications provided
systems.
■5.2 ns t PD max (VCC 3.3V), 10 PA ICC max
The 74LCX04 is fabricated with advanced CMOS technol-
ogy to achieve high speed operation while maintaining ■Power down high impedance inputs and outputs
CMOS low power dissipation. ■r24 m A output drive (VCC 3.0V)
Implements patented noise/EMI reduction circuitry ■Latch-up performance exceeds JEDEC 78 conditions ■ESD performance: Human body model ! 2000V Machine model ! 200V ■Leadless Pb-Free DQFN package
Ordering Code:
Package
Order Number Package Description
Number
74LCX04M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow 74LCX04MX_NL M14A Pb-Free 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow (Note 2) 74LCX04SJ M14D Pb-Free 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74LCX04BQX MLP014A Pb-Free 14-Terminal Depopulated Quad Very-Thin Flat Pack No Leads (DQFN), JEDEC (Note 1) MO-241, 2.5 x 3.0mm 74LCX04MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide 74LCX04MTCX_NL MTC14 Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm (Note 2) Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code. Pb-Free package per JEDEC J-STD-020B. Note 1: DQFN package available in Tape and Reel only. Note 2: “_NL” package available in Tape and Reel only.
© 2005 Fairchild Semiconductor Corporation DS012410 www.fairchildsemi.com
Page Summary Contents For FAIRCHILD 74LCX04 Technical Data Sheet
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 11 |
| File Size | 519.26 KB |
| Published | July 07, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does this device work with 5V systems?
Yes, it has 5V tolerant inputs and interfaces 5V systems down to 2.3V–3.6V operating ranges.
What is the recommended supply voltage operating range?
The recommended operating conditions specify a supply voltage between 2.0 V and 3.6 V CC.
Which physical package types are available for ordering?
It is available in various packages including SOIC, SOP, DQFN, and TSSOP, with specific codes for each.
Is this device suitable for life support applications?
No, the product is not authorized for use as a critical component in life support devices without express written approval.
