Fairchild FQAF11N90 Technical Data Sheet (1)(1)

Summary

The FQAF11N90 is a high-performance N-Channel MOSFET designed for robust and efficient power switching applications. This technical datasheet provides comprehensive details on its electrical characteristics, including absolute maximum ratings, low on-resistance, and optimized fast-switching capabilities. It is ideal for engineers developing high-efficiency switch mode power supplies (SMPS) that require reliable performance under high energy pulses and varying temperatures.

📄 Preview PAGE OF 8

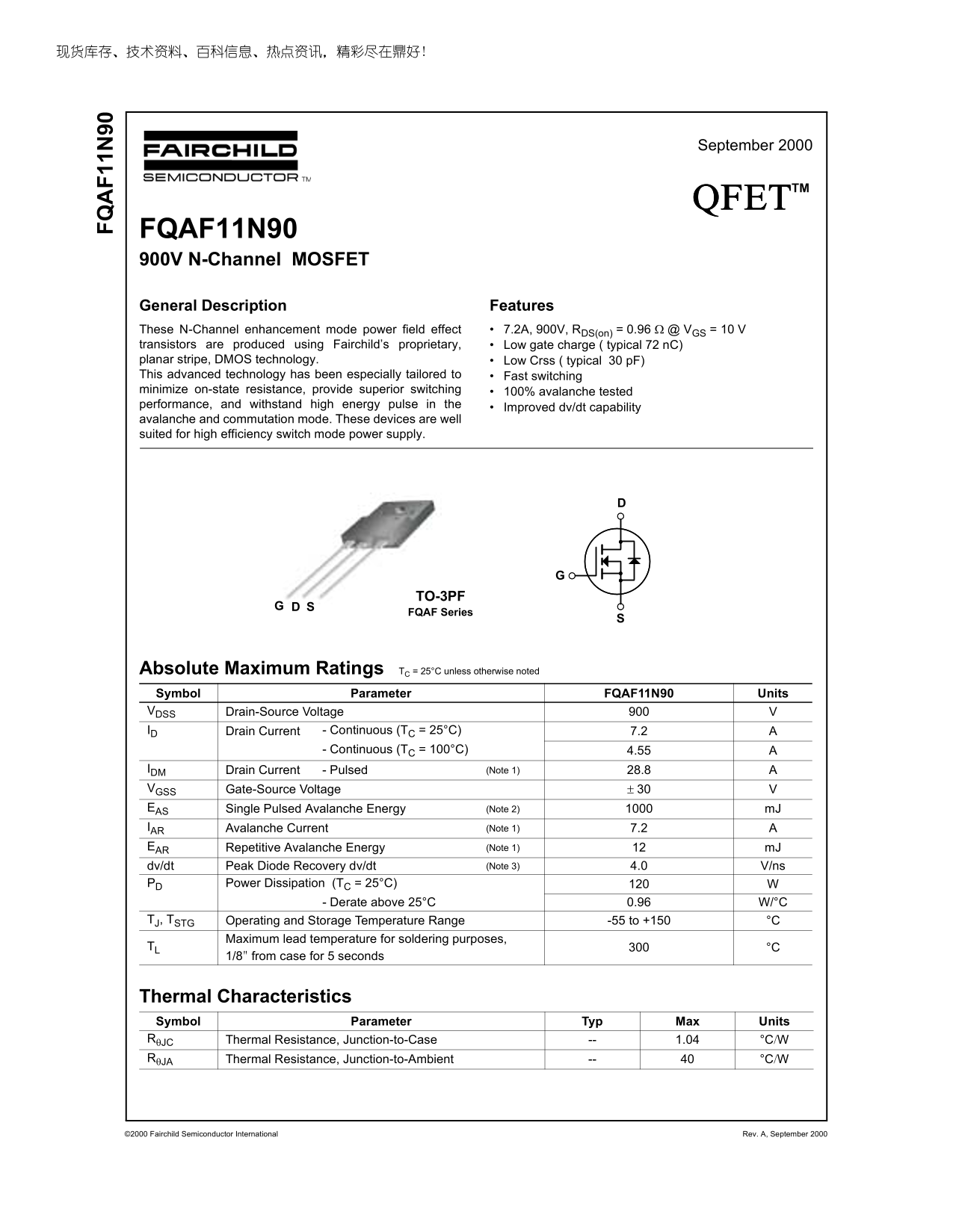

Page 1 Text Content

September 2000

QFETTM

FQAF11N90 900V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 7.2A, 900V, RDS(on) = 0.96 Ω @ VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 72 n C) planar stripe, DMOS technology. Low Crss ( typical 30 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well suited for high efficiency switch mode power supply.

TO-3PF

FQAF Series G

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQAF11N90 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 7.2

- Continuous (TC = 100°C) 4.55

IDM Drain Current - Pulsed (Note 1) 28.8 VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 7.2 EAR Repetitive Avalanche Energy (Note 1) m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.96 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 1.04 °C/W RθJA Thermal Resistance, Junction-to-Ambient °C/W

©2000 Fairchild Semiconductor International Rev. A, September 2000

Page Summary Contents For Fairchild FQAF11N90 Technical Data Sheet (1)(1)

Page 1 September 2000 QFETTM FQAF11N90 900V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 7.2A, 900V, RDS(on) = 0.96 Ω @ VGS = 10 V transistors are produce...
Page 2 Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS Br...
Page 3 Typical Characteristics ap ac ita nc [p F] ra in -S ou rc n- es is ta nc , D ra in ur re nt [A Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.5 V 6.0 V Bottom : 5.5 V ※ Notes : ※ Notes : 1. 250μs Pulse Test 1. V =...
Page 4 Typical Characteristics (Continued) BV SS , ( or al iz ed , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge 0.9 ※ Notes : 1. V GS = 0 V ※ Notes : 1. V GS = 10 V 2. I = 5.7 A , Junction Temper...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive Switchi...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Driver ) IF...
Page 7 Package Dimensions TO-3PF .5 ±0 .2 5.45TYP 5.45TYP Rev. A, September 2000©2000 Fairchild Semiconductor International
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
