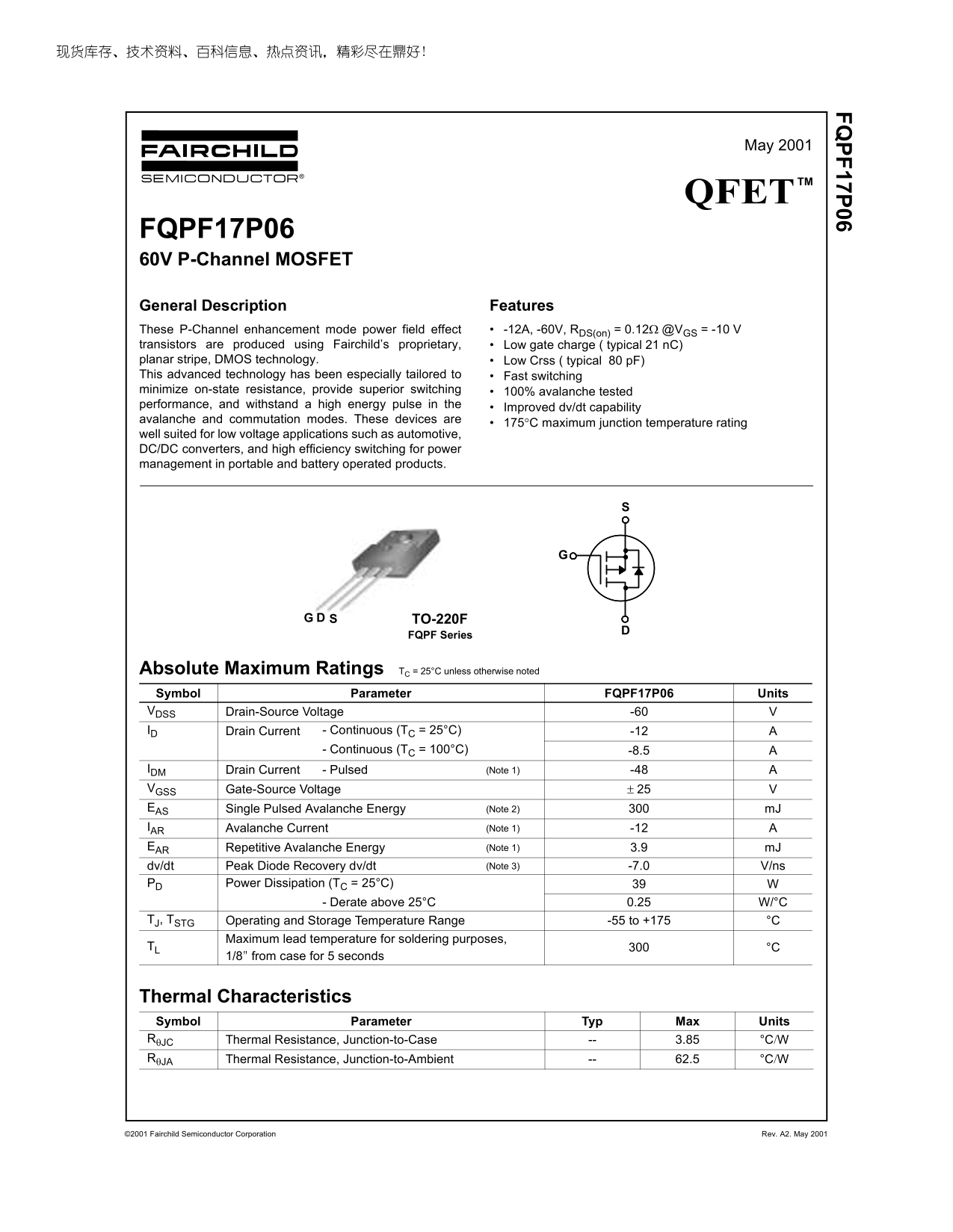

FQ PF17P06

May 2001

FQPF17P06 60V P-Channel MOSFET General Description Features These P-Channel enhancement mode power field effect -12A, -60V, RDS(on) = 0.12Ω @VGS = -10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 21 n C) planar stripe, DMOS technology. Low Crss ( typical 80 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand a high energy pulse in the

Improved dv/dt capability

avalanche and commutation modes. These devices are

175°C maximum junction temperature rating

well suited for low voltage applications such as automotive, DC/DC converters, and high efficiency switching for power management in portable and battery operated products.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF17P06 Units VDSS Drain-Source Voltage -60 ID Drain Current - Continuous (TC = 25°C) -12

- Continuous (TC = 100°C) -8.5

IDM Drain Current - Pulsed (Note 1) -48 VGSS Gate-Source Voltage ± 25 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) -12 EAR Repetitive Avalanche Energy (Note 1) 3.9 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) -7.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.25 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +175 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 3.85 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2001 Fairchild Semiconductor Corporation Rev. A2. May 2001

Page Summary Contents For FAIRCHILD FQPF17P06 Technical Specifications Sheet (1)(1)

Page 1 FQ PF17P06 May 2001 FQPF17P06 60V P-Channel MOSFET General Description Features These P-Channel enhancement mode power field effect -12A, -60V, RDS(on) = 0.12Ω @VGS = -10 V transistors are produced us...
Page 2 FQ PF17P06 Elerical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = -250 µA...
Page 3 FQ PF17P06 Typical Characteristics DS (o n) Ca pa cit an ce [p F] Dr ain -S ou rc On -R es ist an ce -I , D ra in Cu rre nt [A VGS Top : - 15.0 V - 10.0 V - 8.0 V - 7.0 V - 6.0 V - 5.5 V - 5.0 V Botto...
Page 4 FQ PF17P06 Typical Characteristics (Continued) -B DS , ( No rm ali ze d) -I , D ra in Cu rre nt [A Dr ain -S ou rce re ak do wn olt ag rm l R sp se JC(t 1.5 0.9 ※ Notes : 1. VGS = 0 V 0.5 ※ Notes : 2....
Page 5 FQ PF17P06 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS on off td(on) tr td(off) tf VDD Unclamped Inductive Switching Te...
Page 6 FQ PF17P06 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Compliment of DUT (N-Channel) VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse ...
Page 7 FQ PF17P06 Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ©2001 Fairchild Semiconductor Corporation Rev. A2. May 2001
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
