Fairchild FQPF70N08 Specifications (1)(1)

Summary

Fairchild FQPF70N08 80V N-Channel power MOSFET datasheet. Uses planar stripe DMOS technology for low RDS(on) (0.017 ohm), low gate charge (75nC), fast switching, and avalanche-tested performance. TO-220F package. For automotive, DC/DC converters, and motor control. For power electronics design engineers.

📄 Preview PAGE OF 8

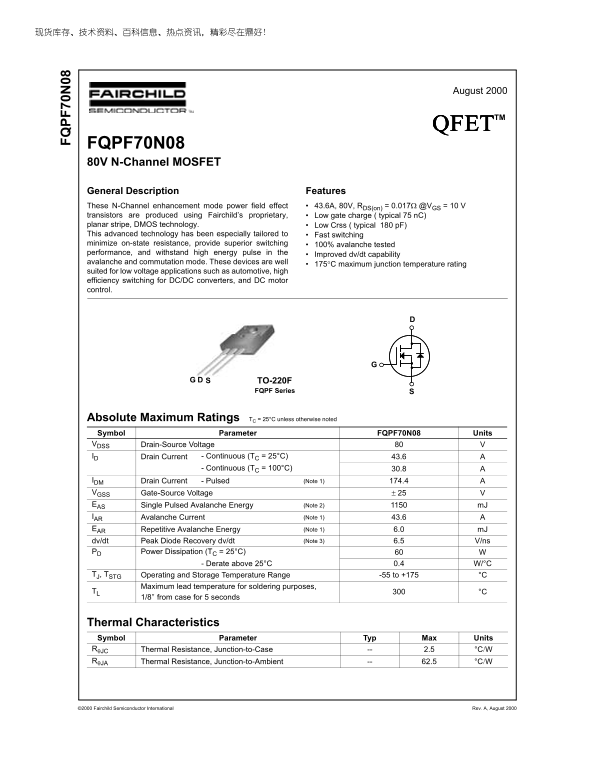

Page 1 Text Content

August 2000

QFETTM

FQPF70N08 80V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 43.6A, 80V, RDS(on) = 0.017Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 75 n C) planar stripe, DMOS technology. Low Crss ( typical 180 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well

175°C maximum junction temperature rating

suited for low voltage applications such as automotive, high efficiency switching for DC/DC converters, and DC motor control.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF70N08 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 43.6

- Continuous (TC = 100°C) 30.8

IDM Drain Current - Pulsed (Note 1) 174.4 VGSS Gate-Source Voltage ± 25 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 43.6 EAR Repetitive Avalanche Energy (Note 1) 6.0 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 6.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.4 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +175 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 2.5 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2000 Fairchild Semiconductor International Rev. A, August 2000

Page Summary Contents For Fairchild FQPF70N08 Specifications (1)(1)

Page 1 August 2000 QFETTM FQPF70N08 80V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 43.6A, 80V, RDS(on) = 0.017Ω @VGS = 10 V transistors are produced usi...
Page 2 70N Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDS...
Page 3 Typical Characteristics ap ac ita nc [p F] ra in -S ou rc n- es is ta nc , D ra in ur re nt [A VGS Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.0 V 5.5 V 5.0 V Bottom : 4.5 V 175℃ ※ Notes : -55℃ ※ Notes : 1. 250...
Page 4 70N Typical Characteristics (Continued) BV SS , ( or al iz ed , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge 0.9 ※ Notes : 1. V GS = 0 V ※ Notes : 1. V GS = 10 V 2. I = 35 A , Junction Tem...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive Switchi...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Driver ) IF...
Page 7 Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Rev. A, August 2000©2000 Fairchild Semiconductor International
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...

Manual Details

Brand Fairchild
Pages 8
File Size 673.60 KB
Published June 17, 2026
6 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the maximum continuous drain current at 25°C?

43.6A at 25°C, derated to 30.8A at 100°C.

What is the typical on-resistance of this MOSFET?

0.017Ω at VGS=10V, ID=21.8A.

Can this MOSFET be used in life support devices?

No, it is not authorized for life support use without written approval.

What is the maximum operating junction temperature?

175°C maximum junction temperature rating.
