Page 1

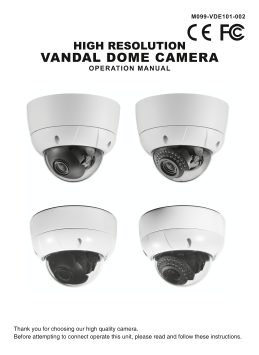

M099-VDE101-002 HIGH RESOLUTION VANDAL DOME CAMERA OPERATION MANUAL Thank you for choosing our high quality camera. Before attempting to connect operate this unit, please read and follow these instruc...
Page 2
CONTENTS 1. Cautions 2. Features 3. Package 4. Overview and function 5. Instal lat ion 6. Connection 7. Dimensions 8. Specif ications 9. OSD Menu Structure
Page 3
1. CAUTIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interference. 2. This device must accept any ...
Page 4
1. CAUTIONS Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking...
Page 5
2.Features • 1/3 960H SONY EXview HAD CCD II • High Resolution of 700TV Lines • OSD Function • Multi Language (ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH / CHINESE) • 2DNR ...
Page 6
3.Package VANDAL DOME CAMERA SURFACE MOUNT VIDEO OUTPUT TEST CABLE OPERATION MANUAL SCREW(M4x10) - 4ea SCREW(5x30) - 4ea SCREW(M4x40.SUS) - 4ea L WRENCH - T20 MOUNT GUIDE
Page 7
4.Overview and function • Name (LED Type) • CONTROL FUNCTION (OSD JOYSTICK) • Name (Standard)
Page 8
5. Installation Mount Guide Standard Type LED Type
Page 9
5. Installation 1. Installation of Flush Mount PI PE ① Installation of the camera with SURFACE CASE(using M4x40) ② Installation of the camera with SCREWS ③ Installation of the camera with JUNCTION BOX...
Page 10
6.Connection • DUAL(DC 12V/AC24V) • DC 12V When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.
Page 11
7.Dimensions Unit : mm Surface Mount Type Type A Type B Flush Mount Type Standard Type LED Type When you fix the focus around 22.0mm in f9.0-22.0mm Varifocal lens, please set short distance focus appr...
Page 12
8.Specifications Signal Format NTSC PAL Image Device 1/3˝ 960H SONY EXview HAD CCD II Scanning System 2:1 Interlace H.Resolution 700TV Lines Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50...
Page 13
9. OSD MENU STRUCTURE MAIN 1st Sub 2nd Sub 3rd Sub 4th Sub MENU MENU MENU MENU MENU MANUAL TYPE DC LENS MODE AUTO,OPEN,CLOSE SPEED (000 ~ 255) RETURN MODE SHUT,AUTO IRIS, SHUT+AUTO IRIS HIGH LUMINANCE...
Page 14
9. OSD MENU STRUCTURE MAIN 1st Sub 2nd Sub 3rd Sub 4th Sub MENU MENU MENU MENU MENU DETECT SENSE (000 ~ 255) BLOCK DISP OFF,ON,ENABLE (CONTROLER) MONITOR AREA ON,OFF 1/4, 2/4, 3/4, 4/4 MOTION ON NTSC:...
