EverFocus ESD200 User Manual
Summary
This advanced color CCD camera system provides discreet and high-clarity video surveillance for enhanced security monitoring. Featuring adjustable lenses and the capacity to mount up to four cameras simultaneously, it delivers comprehensive 360° coverage suitable for professional security applications. The accompanying manual guides you through professional installation, optimal multi-camera setup, and necessary operating precautions. Ideal for users requiring robust, flexible, and high-definition surveillance solutions.

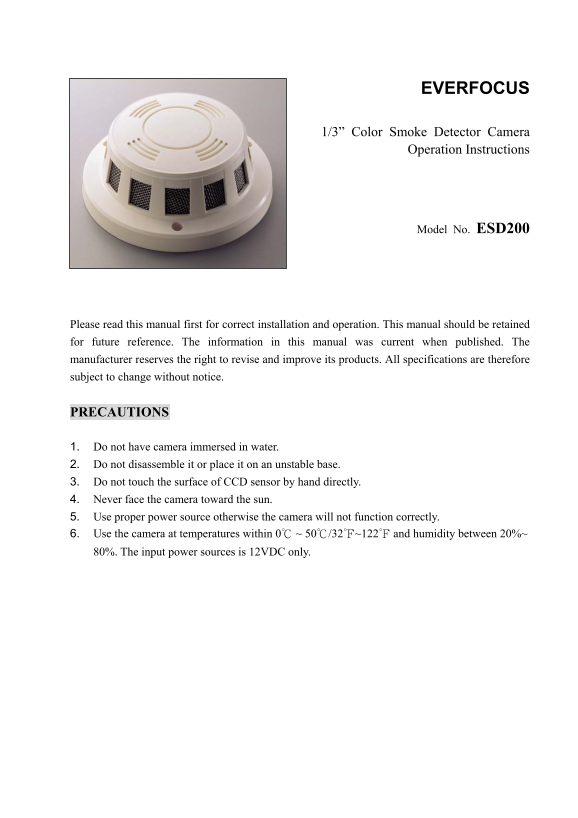

Page 1 Text Content
EVERFOCUS
1/3” Color Smoke Detector Camera
Operation Instructions
Model No. ESD200
Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.
PRECAUTIONS
1. Do not have camera immersed in water. 2. Do not disassemble it or place it on an unstable base. 3. Do not touch the surface of CCD sensor by hand directly. 4. Never face the camera toward the sun. 5. Use proper power source otherwise the camera will not function correctly. 6. Use the camera at temperatures within 0℃ ~ 50℃/32℉~122℉ and humidity between 20%~ 80%. The input power sources is 12VDC only.
Page Summary Contents For EverFocus ESD200 User Manual
Manual Details
| Brand | EverFocus |
|---|---|
| Pages | 6 |
| File Size | 127.86 KB |
| Published | May 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What power source should I use?
The camera requires a 12VDC regulated power source only.
How do I view the video output?
Connect it to a color monitor or other video device using a 75 ohm type coaxial cable with BNC female connector.
What are the operating temperature and humidity ranges?
The acceptable range is 0℃~50℃ (32℉~122℉) with humidity between 20% to 80%.
What is the camera's horizontal view angle?
The standard horizontal view angle of the Smoke Detector Camera is 78 degrees.
