EverFocus ECD230 User Guide/Manual

Summary

This compact, full-functionality CCD dome camera features a high-sensitivity 1/3" SONY Super HAD sensor with Auto Gain Control and Anti-aliasing filters. Ideal for installers and security professionals requiring reliable surveillance in various environments. The manual guides you through professional installation, detailed operational precautions, electrical connectivity (12VDC), and comprehensive technical specifications for proper deployment.

📄 Preview ‹ PAGE OF 6 ›

‹

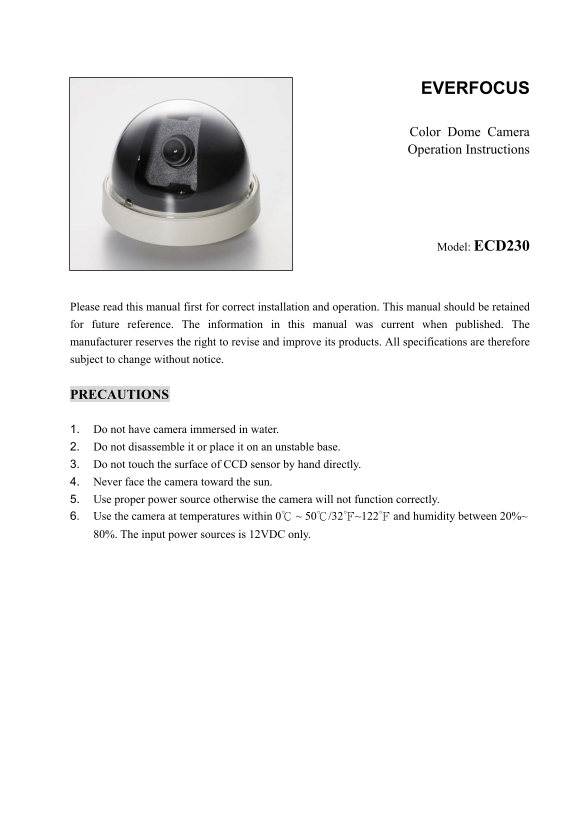

EverFocus ECD230 User Guide/Manual - Page 1

›

Page 1 Text Content

EVERFOCUS

Color Dome Camera Operation Instructions

Model: ECD230

Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.

PRECAUTIONS

1. Do not have camera immersed in water. 2. Do not disassemble it or place it on an unstable base. 3. Do not touch the surface of CCD sensor by hand directly. 4. Never face the camera toward the sun. 5. Use proper power source otherwise the camera will not function correctly. 6. Use the camera at temperatures within 0℃ ~ 50℃/32℉~122℉ and humidity between 20%~ 80%. The input power sources is 12VDC only.

Page Summary Contents For EverFocus ECD230 User Guide/Manual

Page 1 EVERFOCUS Color Dome Camera Operation Instructions Model: ECD230 Please read this manual first for correct installation and operation. This manual should be retained for future reference. The informat...

Page 2 PREFACE These cameras are compact, full functioned CCD cameras. Their stylish appearance can be applied as per installer's ideal locations. These dome cameras can be mounted either on the ceiling or o...

Page 3 LENS AVAILABLE * Standard board lens f=3.6 mm, F=2.0 mm. * Other available lens : 4 Lens f=4.3 mm, F=2.0 mm 6 Lens f=6.0 mm, F=2.0 mm 8 Lens f=8.0 mm, F=2.0 mm INSTALLATION 1. Remove the plastic dome ...

Page 4 5. Connect the BNC connector of the camera to a color monitor, or other video device through a 75 ohm type coaxial cable with BNC female connector at cable extension. 6. Connect the DC +12V regulated ...

Page 5 SPECIFICATIONS Model Standard Resolution High Resolution Pickup Device 1/3'' SONY Super HAD CCD Video Format NTSC or PAL NTSC: 525 TV lines, 60 fields/sec Scanning System PAL: 625 TV lines, 50 fields/...

Page 6 Ever Focus Electronics Corp. Head Office: Europe Office: 12F, No.79 Sec. 1 Shin-Tai Wu Road, Albert-Einstein-Strasse 1 Hsi-Chih, Taipei, Taiwan D-46446 Emmerich, Germany TEL: +886-2-26982334 TEL: 49-2...

Manual Details

Brand	EverFocus
Pages	6
File Size	104.83 KB
Published	May 19, 2026

82 views

Enter the captcha to get the download link:

Frequently Asked Questions

What are the key safety precautions for this camera?

Do not immerse it in water, disassemble it, touch the CCD sensor directly, or face it toward the sun.

What power source and voltage does the camera require?

It requires a regulated DC +12V power source. The maximum consumption is 1.5W.

What automatic functions help with varying light conditions?

The camera features Auto Electronic Shutter, Automatic Gain Control (AGC), and Auto White Balance functions.

How do I connect the unit after installation?

Connect the BNC connector to a monitor via 75 ohm coaxial cable, and plug the DC jack into the 12V power-in jack with a 2 mm center+ outer- plug.
