EverFocus EZ180 User Guide/Manual

Summary

This comprehensive user manual provides operating instructions and safety guidelines for the EZ180, a high-resolution, weatherproof B/W CCD camera designed specifically for rugged outdoor surveillance environments like parking lots and malls. The robust unit features a heater for reliable operation in extremely cold temperatures (-46°C) and incorporates vari-focal lens options. This guide details everything from proper installation procedures and specifications to crucial safety warnings regarding placement, handling, and best practices to ensure optimal performance.

📄 Preview ‹ PAGE OF 13 ›

‹

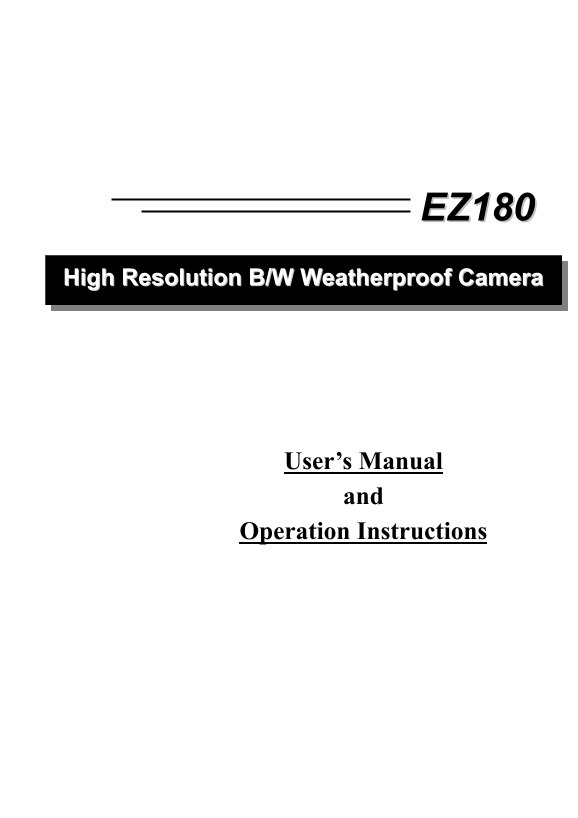

EverFocus EZ180 User Guide/Manual - Page 1

›

Page 1 Text Content

EZ180

High Resolution B/W Weatherproof Camera

User’s Manual and Operation Instructions

Page Summary Contents For EverFocus EZ180 User Guide/Manual

Page 1 EZ180 High Resolution B/W Weatherproof Camera User’s Manual and Operation Instructions

Page 2 Notice This manual is presented to the users of EZ180 by Ever Focus Electronics Corp. With years of engineering researches, Ever Focus has spared no effort to provide the high quality products to the ...

Page 3 Table of Contents Safety Warning …………………………………………1 Introduction……………………………………………..2 Specification…………………………………………….3 Major Parts Names…..…………………………….…..4 Installation Instructions………………………….….…5 Setti...

Page 4 Safety Warning 1. Handle the camera with care. Be careful when handling the camera, do not drop it or subject it to strong shock or vibration to prevent any damages to it. Do not disassemble it or pla...

Page 5 Introduction The EZ180 series offers great performance in 1/3”image format B/W CCD camera. The EZ180 is ideal for outdoor applications such as parking lots, gas stations or shopping malls. The sophist...

Page 6 Specification EZ180 Pickup Device 1/3” SONY B/W CCD Picture Elements 768 x 494 (EIA) 752 x 582 (CCIR) Horizontal Resolution 560 TV lines Video Output BNC 1.0Vp-p, 75 ohm Lens Focal Length Vari-focal l...

Page 7 Major Parts Names and Their Functions Back Fixing Plate Swivel Screw Mounting Set-Screw Sun Shield Assembly Cover Screw Fixing Screw Fixing Plate IRIS ALC/Level Adjustment O-ring Seal Focus Zoom Lens ...

Page 8 Installation Instructions 1. Using the supplied screws, mount the bracket base on the desired location. 2. Connect the BNC connector of the camera to a monitor or other video device through a 75 ohm t...

Page 9 g. When all the adjustments and settings are completed, overlaying the cover gently. Be careful not to damage to the “O”-Ring and camera components. h. To reassemble the sun shield, match the hole on ...

Page 10 Settings The camera is set up at factory and normally requires no adjustments. Sometimes, however, adjustments may be necessary. Please refer to the following description for the function details. The...

Page 11 The 4 control switches are also located on the side circuit board, the switches in orders are for Flickerless, Back Light Comp, Auto Gain Control and Line Lock. FL Normal On BLC Normal On AGC Off On L...

Page 12 AGC (Automatic Gain Control) Off/On AGC ON: The sensitivity increases automatically when light is low. AGC OFF: A-low-noise picture is obtained under a low light condition. The default setting is On. ...

Page 13 Head Office: Europe Office: 12F, No.79 Sec. 1 Shin-Tai Wu Road, Albert-Einstein-Strasse 1 Hsi-Chih, Taipei, Taiwan D-46446 Emmerich, Germany TEL: +886-2-26982334 TEL: +49-2822-9394-0 FAX: +886-2-26982...

Manual Details

Brand	EverFocus
Pages	13
File Size	130.79 KB
Published	May 19, 2026

105 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the recommended operating temperature range?

The camera must operate between -35℃ to +50℃ for 12VDC and -45℃ to +50℃ for 24VAC.

How should I clean the CCD sensor or lens?

Use a soft cloth on the body, and use a lens tissue or cotton tipped applicator with ethanol for the CCD sensor and lens.

Can the EZ180 be used in cold weather?

Yes, it has a heater that activates at 10℃, allowing operation down to -46°C.

What precautions should I take when installing the camera?

Avoid high temperature environments, and keep it away from electric or magnetic fields like TVs or transformers.
