Samsung SCD-2080R High Resolution Day Night IR Dome Camera User Manual
Summary
This professional dome camera delivers high-resolution surveillance with advanced day/night performance and reliable IR illumination up to 20m. The accompanying manual is a comprehensive guide detailing technical specifications, safe installation procedures, operational guidelines, and maintenance protocols for system integrators and security professionals. Use this resource to properly deploy and optimize your robust surveillance solution in demanding environments.
Page 1 Text Content
High Resolution Day/Night IR Dome Camera User Manual SCD-2080R
Page Summary Contents For Samsung SCD-2080R High Resolution Day Night IR Dome Camera User Manual

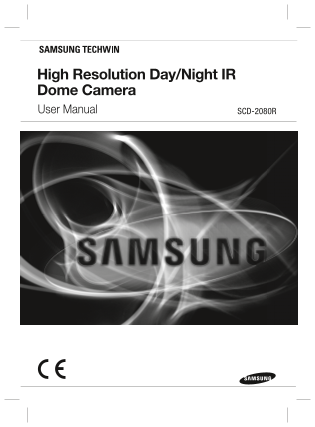

Page 1
High Resolution Day/Night IR Dome Camera User Manual SCD-2080R
Page 2
High Resolution Day/Night IR Dome Camera User Manual Copyright ©2010 Samsung Techwin Co., Ltd. All rights reserved. Trademark is the registered logo of Samsung Techwin Co., Ltd. The name of this produ...
Page 3
Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we’ll introduce our model description. ■ SCD-2080R SERIES • NTSC M...
Page 4
safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE CAUTION: COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFI...
Page 5
IN IO 6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers fi lled with water on top of the camera. doing so may cause personal injury due to fi re, electric ...
Page 6
safety information im FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : 1) This device may not cause harmful interference, and 2)...
Page 7
IN IO important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only wit...
Page 8
contents in INTRODUCTION 9 Features 10 What’s included 11 Component names and Functions INSTALLATION 12 Installation 15 Adjust the panning and tilting while watching the monitor CONNECTION 16 Connecti...
Page 9
IN IO introduction FEATURES Ultra High Resolution By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixels, 470,000(PAL) pixels SONY CCD, the camera produces clear picture quality with a horizontal...
Page 10
introduction Miscellaneous Functions HLC(High Light Compensation), SENS-UP, H/V-REV, D-ZOOM, SHARPNESS, MOTION DETECTION and PRIVACY functions are provided. OSD The camera control is convenient by usi...
Page 11
IN IO COMPONENT NAMES AND FUNCTIONS ❶ Pan Base : control panning angle of camera ❷ Tilt Base : control tilting angle of camera ❸ Video Output Terminal to Monitor ❹ x3.6 Vari-focal Lens Module 2.8 ~ 10...
Page 12
installation INSTALLATION 1. Separate the dome cover by turning anti-clockwis. 2. Separate the shield case by pulling from the camera body. Latch Locking direction Main Body (Camera) [Figure1] Unlocki...
Page 13
IN LLA IO WHEN USING THE CEILING BRACKET Ceiling bracket An arrow for installing directions M4 tapping screw (provided) CAMERA Locking direction Unlocking direction Dome cover 1. Hold the ceiling brac...
Page 14
installation Pan Base fixation screw M4 tapping screw [Figure-2] If you want to install the camera with the ceiling bracket combined, fi x it using two M4 tapping screws at the side of the main body (...
Page 15
IN LLA IO ADJUST THE PANNING AND TILTING WHILE WATCHING THE MONITOR Rotate Base Tilt Base Pan Base 1. You can adjust the camera to point in any direction by using the pan, Tilt mechanism. Pan Base can...
Page 16
connection CONNECTING TO MONITOR Connect the VIDEO-OUT jack to the VIDEO-IN jack of monitor. Monitor CCTV Camera As the connecting method varies with the instruments, refer to the manual supplied with...
Page 17
* Standard voltage for camera operation : DC 12V ± 10% * There may be some deviation in voltage drop depending on the type of wire and the manufacturer. Be sure to connect power only after all the ins...
Page 18
setup MENU CONFIGRATION Setup Menu LENS ● DC fu ● BRIGHTNESS ● SHUTTER ● AGC EXPOSURE ● SENS-UP ● RETURN ● ATW ● OUTDOOR ● INDOOR WHITE BALANCE ● MANUAL ● AWC→SET SSDR ● OFF ● ON BACKLIGHT ● OFF ● BLC...
Page 19
MAIN SETUP Select the function 1.LENS DC Change the status by moving up or 2.EXPOSURE by moving the down direction of 3.WHITE BAL ATW setup switch left or function setup switch. 4.SSDR OFF right. 5.BA...
Page 20
setup 2. Select a desired mode using the Function EXPOSURE SETUP Setup switch. 1.BRIGHTNESS IIIII IIIIIIIIIIIIIIII 25 BRIGHTNESS : Adjusts the video brightness. 2.SHUTTER --- SHUTTER : You can select ...
Page 21
WHITE BAL (WHITE BALANCE) Use the White Balance function to adjust the screen color. 1. When the SETUP menu screen is displayed, select ‘White Bal’ by using the Function MAIN SETUP Setup switch so tha...
Page 22
setup SSDR (SAMSUNG SUPER DYNAMIC RANGE) SSDR illuminates darker areas of an image while retaining the same light level for brighter areas to even out the overall brightness of images with high contra...
Page 23
BLC : Enables a user to directly select a desired area from a picture, and to view the area more clearly. LEVEL : Adjust level of the BLC function. TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanc...
Page 24
setup SSNR3 This function reduces the background noise in a low luminance environments. 1. When the SETUP menu screen is displayed, select 'SSNR3' by using the Function Setup MAIN SETUP switch so that...
Page 25
COLOR : The picture is always displayed in color. B/W : The picture is always displayed in black and white. You can turn on or off the burst signal on B/W mode. IR LED Mode : On: 12EA, Off: 6EA IR MOD...
Page 26
setup SPECIAL 1. When the SETUP menu screen is displayed, MAIN SETUP select ‘SPECIAL’ by using the Function 1.LENS DC Setup switch so that the arrow indicates 2.EXPOSURE ‘SPECIAL’. 3.WHITE BAL ATW 4.S...
Page 27
If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear. Monitor : Please change the settings value of LCD MONITOR video appropriate to your monitor. ▶ GAMMA...
Page 28
setup When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen even if you enter one. Only English is available in the mode. If you move the cursor to CLR and press the Funct...
Page 29
PRIVACY : Mask an area you want to hide on the screen. ➊ When the SPECIAL menu screen is PRIVACY AREA SETUP displayed, press the Function Setup 1.AREA AREA1 switch so that the arrow indicates 2.MODE O...
Page 30
setup EXIT Select a desired EXIT mode using the Function Setup switch depending on the camera If purpose. SAVE : Save the current settings and exit the MAIN SETUP menu. NOT SAVE : Do not save the curr...
Page 31
LE IN troubleshooting TROUBLESHOOTING If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technicia...
Page 32
specifications SPECIFICATIONS SCD-2080RN SCD-2080RP Video Imaging Device 1/3” Super HAD CCD II Total Pixels 811(H) x 508(V) 795(H) x 596(V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Scanning Sy...
Page 33
IF IC IO SCD-2080RN SCD-2080RP SSDR On / Off (Level adjustable) Backlight Compensation BLC / HLC / OFF Camera Title Off / On (Displayed 15 characters) Day & Night Auto (ICR) / Color / B/W Backligh...
Page 34
specifications DIMENSION Ø115.8 mm 92.7mm Ø97mm Ø90mm 34_ specifi cations
Page 40
SALES NETWORK SAMSUNG TECHWIN CO., LTD. Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400 TEL : +82-70-7147-8740~60, FAX : +82-31-8018-3745 SAMSU...
Manual Details
| Brand | Samsung |
|---|---|
| Pages | 40 |
| File Size | 4.42 MB |
| Published | June 16, 2026 |
2 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended operating temperature range?
The optimal environmental operating temperature is -10°C to +50°C.
How should I power the camera and connect adapters?
Use only the standard adapter specified in the sheet, plug the power cord securely into the receptacle, and do not connect multiple cameras to one adapter.
Does the SCD-2080 series support digital zoom and night vision?
Yes, it supports Digital Zoom (1x ~ 16x) and includes features like Day & Night Auto (ICR) for low light.
What are the specifications regarding communication protocols?
It is compatible with Coaxial Control (SPC-300 Compatible) using the Pelco-C (Coaxitron) protocol.
