Dell Multimedia Desktop Setup Guide (2006). This visual setup poster provides step-by-step instructions for monitor connection (DVI or VGA), keyboard/mouse, network, modem, power connections, and startup. Includes optional Media Center features with remote control sensor/battery installation, TV tuner setup, and wireless network configuration diagram. References support.dell.com and Windows XP Help.
Page 1 Text Content
MW452cc0.qxd 17/08/2006 14:50 Page 1

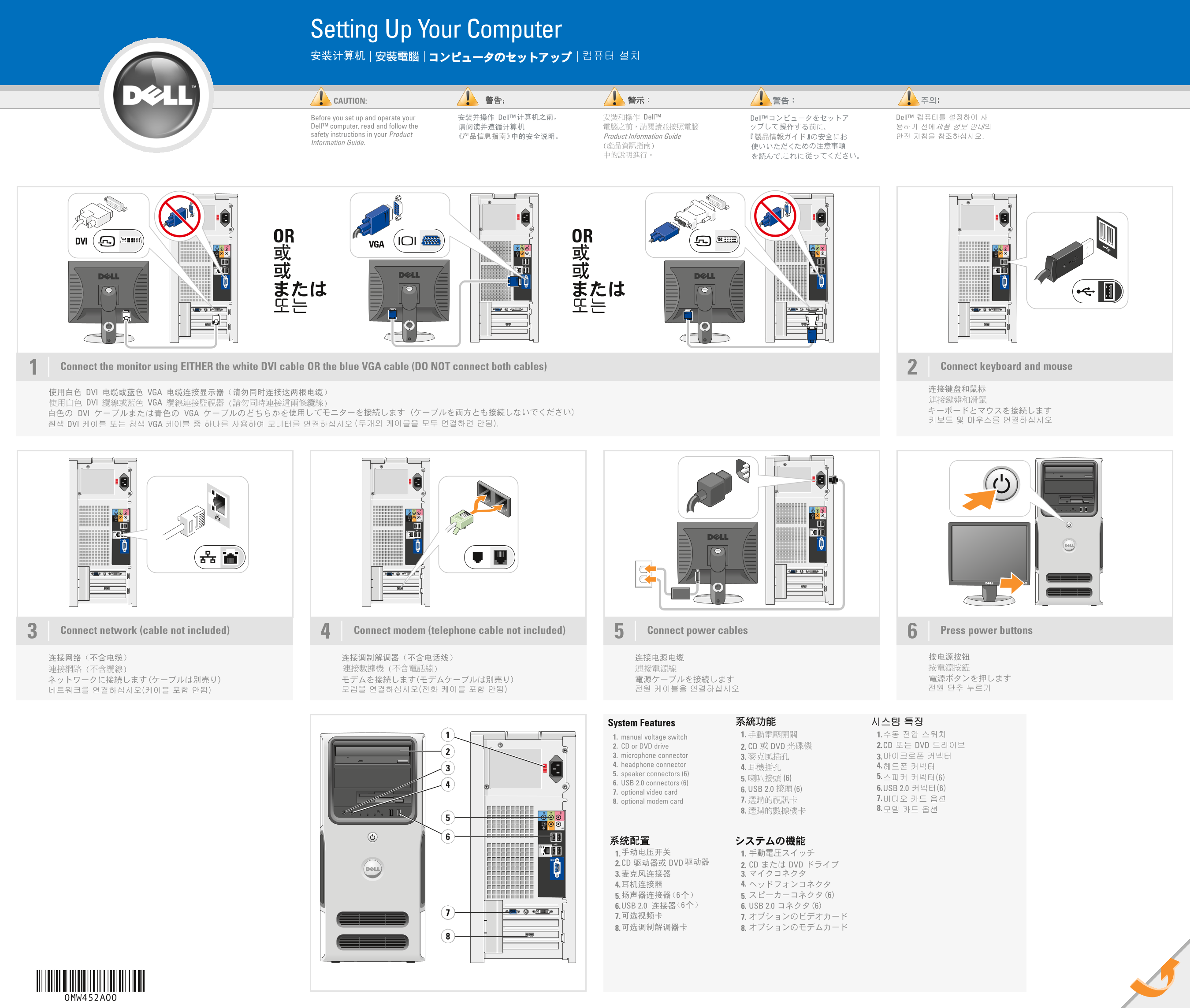

Setting Up Your Computer
CAUTION: Before you set up and operate your Dell™ computer, read and follow the safety instructions in your Product Information Guide.
DVI OR OR
Connect the monitor using EITHER the white DVI cable OR the blue VGA cable (DO NOT connect both cables)1 Connect keyboard and mouse
Connect network (cable not included) Connect modem (telephone cable not included) Connect power cables Press power buttons3
System Features
1. manual voltage switch
2. CD or DVD drive 2. 2.
3. microphone connector 3. 3. 4. headphone connector 4.
5. speaker connectors (6)
6. USB 2.0 connectors (6)
7. optional video card
8. optional modem card
0MW452A00
