Dell Dimension desktop computer setup guide from 2006-2007 (RP336). Covers three monitor connection options including dual monitor Y-adapter cable, DVI, or VGA. Details modem connection, keyboard/mouse setup, network cable attachment, and power-on procedures. Includes system features with optical drive, optional floppy/media card reader, voltage selector, speaker/headphone/microphone connectors, and USB 2.0 ports. Optional Media Center and wireless network setup also covered.
Page 1 Text Content
RP336ap1.qxd 28/02/2007 09:28 Page 1

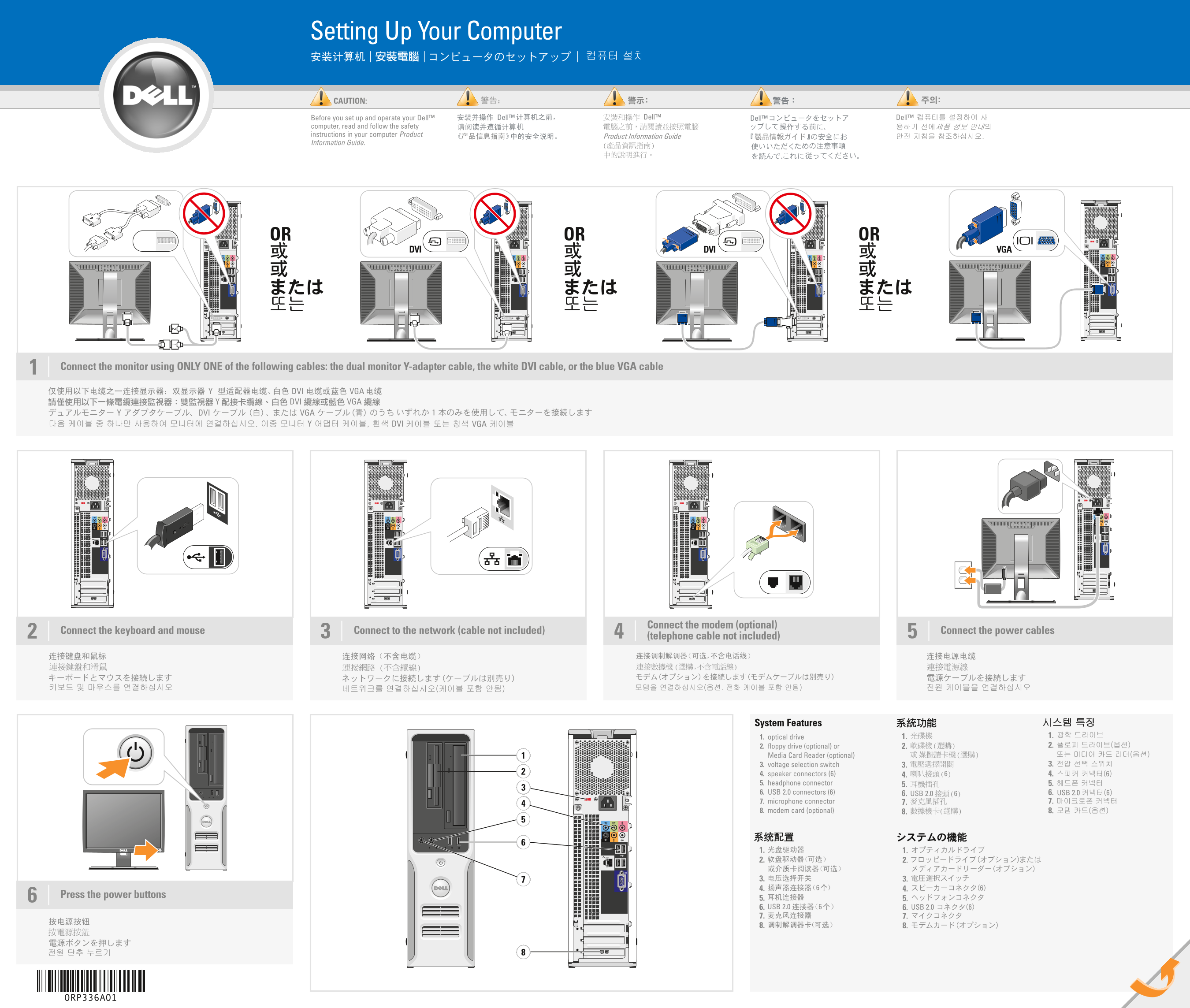

Setting Up Your Computer
CAUTION: Before you set up and operate your Dell™ computer, read and follow the safety instructions in your computer Product Information Guide.
OR OR OR
DVI DVI VGA
Connect the monitor using ONLY ONE of the following cables: the dual monitor Y-adapter cable, the white DVI cable, or the blue VGA cable1
Connect the modem (optional)
Connect the keyboard and mouse Connect to the network (cable not included) Connect the power cables
(telephone cable not included)
System Features
1. optical drive 1. 1. 2. floppy drive (optional) or 2. 2.
Media Card Reader (optional)
3. voltage selection switch 3. 3.
4. speaker connectors (6) 4. 4. 5. headphone connector 5. 5. 6. USB 2.0 connectors (6) 6. 6. 7. microphone connector 7. 7. 8. modem card (optional) 8. 8.
Press the power buttons
0RP336A01
