Dell Dimension 9200 Installation Diagrams
Summary
Dell Dimension desktop computer setup guide from June 2006 (WH350). Covers monitor connection via DVI or VGA cable, keyboard/mouse setup, network and modem cable connections, and power-on procedures. Details system features including CD/DVD drive, optional floppy or media card reader, speaker connectors, USB 2.0 ports, and headphone/microphone jacks. Optional Media Center components and wireless network setup configuration also covered.
Page 1 Text Content
WH350cc0.qxd 26/06/2006 10:13 Page 1
Setting Up Your Computer
CAUTION:
Before you set up and operate your Dell™ computer, read and follow the safety instructions in your computer Product Information Guide.
DVI VGAOR

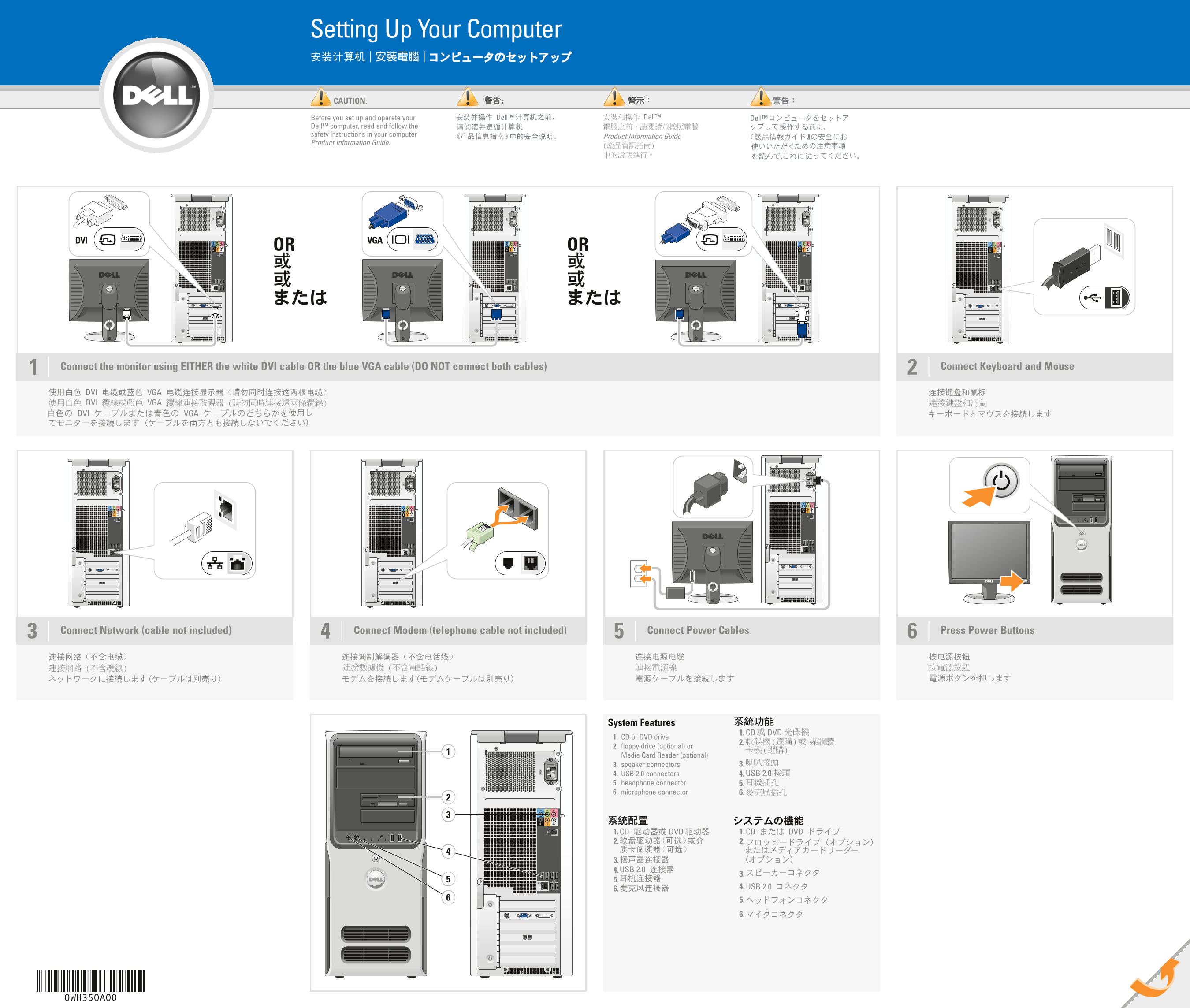

Connect the monitor using EITHER the white DVI cable OR the blue VGA cable (DO NOT connect both cables)1 Connect Keyboard and Mouse
Connect Network (cable not included) Connect Modem (telephone cable not included) Connect Power Cables Press Power Buttons3
System Features
1. CD or DVD drive
2. floppy drive (optional) or Media Card Reader (optional)
3. speaker connectors 3.
4. USB 2.0 connectors 4. 5. headphone connector 5. 6. microphone connector 6.
0WH350A00
