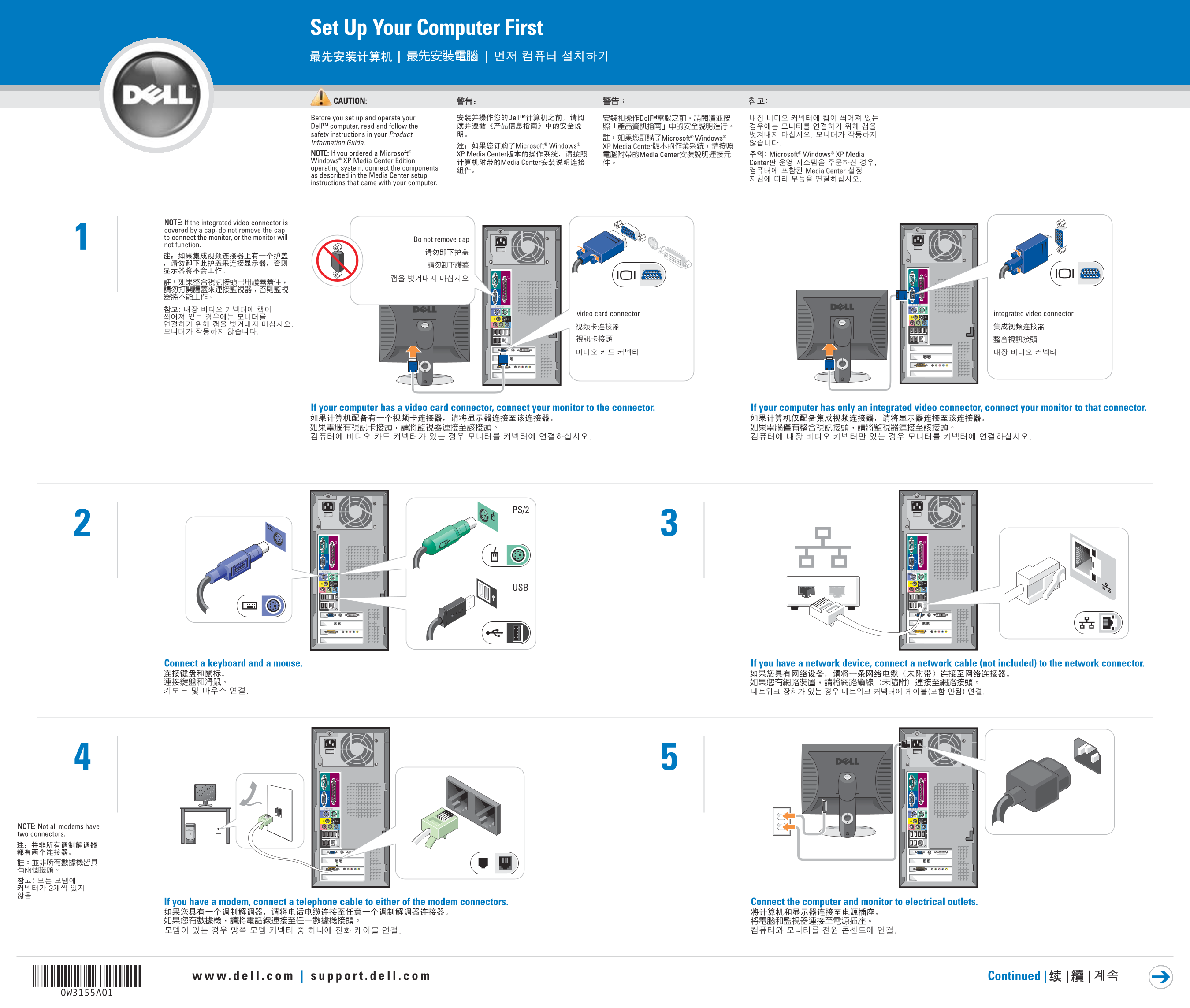

Set Up Your Computer First | |
CAUTION:
Before you set up and operate your Dell™ computer, read and follow the safety instructions in your Product Information Guide. NOTE: If you ordered a Microsoft® Windows® XP Media Center Edition operating system, connect the components as described in the Media Center setup instructions that came with your computer.
NOTE: If the integrated video connector is covered by a cap, do not remove the cap to connect the monitor, or the monitor will
Do not remove cap
not function.
video card connector integrated video connector
If your computer has a video card connector, connect your monitor to the connector. If your computer has only an integrated video connector, connect your monitor to that connector.
Connect a keyboard and a mouse. If you have a network device, connect a network cable (not included) to the network connector.
NOTE: Not all modems have two connectors.
If you have a modem, connect a telephone cable to either of the modem connectors. Connect the computer and monitor to electrical outlets.
