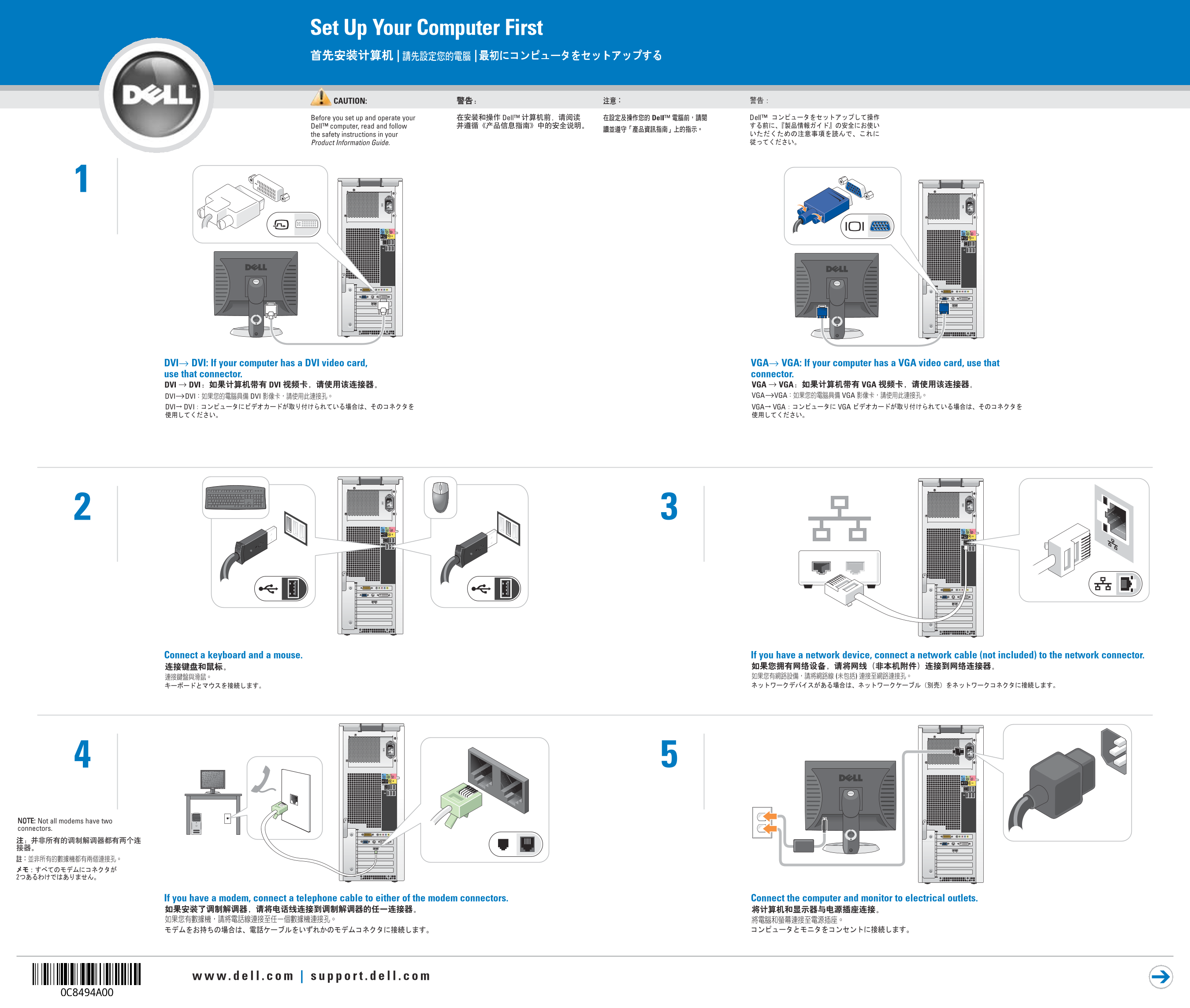

Set Up Your Computer First | |
CAUTION: Before you set up and operate your Dell™ computer, read and follow the safety instructions in your Product Information Guide.
DVI→ DVI: If your computer has a DVI video card, VGA→ VGA: If your computer has a VGA video card, use that use that connector. connector.
Connect a keyboard and a mouse. If you have a network device, connect a network cable (not included) to the network connector.
NOTE: Not all modems have two connectors.
If you have a modem, connect a telephone cable to either of the modem connectors. Connect the computer and monitor to electrical outlets.
