Dell Dimension 2400 Installation Diagrams
Summary
Dell desktop computer setup guide (August 2003) covering keyboard and mouse connection via PS/2 or USB, monitor-to-computer connection, telephone cable for modem with two connectors, optional network cable, power outlet connection, computer and monitor power-on, and front/back USB 2.0 and headphone connector identification.
Page 1 Text Content
C1344ap1.qxd 8/7/2003 10:16 AM Page 1

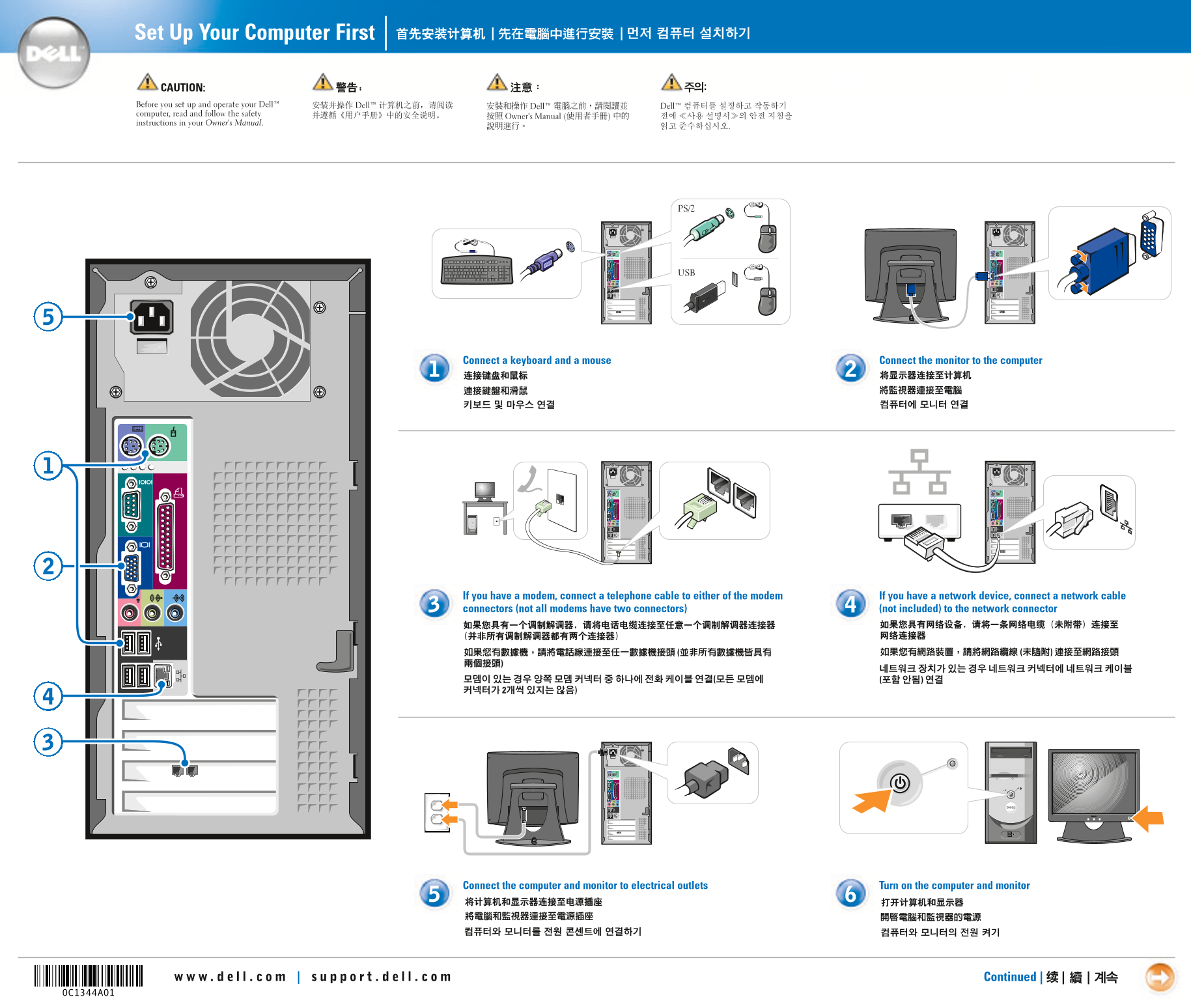

Set Up Your Computer First | |
CAUTION: Before you set up and operate your Dell™ computer, read and follow the safety instructions in your Owner's Manual.
Connect a keyboard and a mouse Connect the monitor to the computer
If you have a modem, connect a telephone cable to either of the modem If you have a network device, connect a network cable connectors (not all modems have two connectors) (not included) to the network connector
Connect the computer and monitor to electrical outlets Turn on the computer and monitor
Continued | | |
Page Summary Contents For Dell Dimension 2400 Installation Diagrams
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 2.05 MB |
| Published | July 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is required before I set up and operate the Dell computer?
You must first read and follow all safety instructions found in your Owner's Manual.
How do I connect my modem and network devices?
Connect a telephone cable to one of the modem connectors, and then use a dedicated network cable for the main connection.
Where can I find additional setup help or support information?
You should check your Owner's Manual, visit support.dell.com, or use the Dell Solution Center icon on the Windows desktop.
What peripherals are supported through the connections?
The system supports devices via PS/2 or USB 5 connectors for keyboards and mice, as well as optional floppy drives.
