Dell Dimension 4600C Installation Charts
Summary
Dell Dimension desktop setup guide from September 2003 covering first-time computer assembly. Details VGA and DVI monitor connection options with adapter support, PS/2 or USB keyboard and mouse connection, modem and network cable attachment, and power connection. Features front panel access door revealing IEEE 1394 port, CD/DVD drive, PC Card slot, USB 2.0 connectors, and headphone jack.

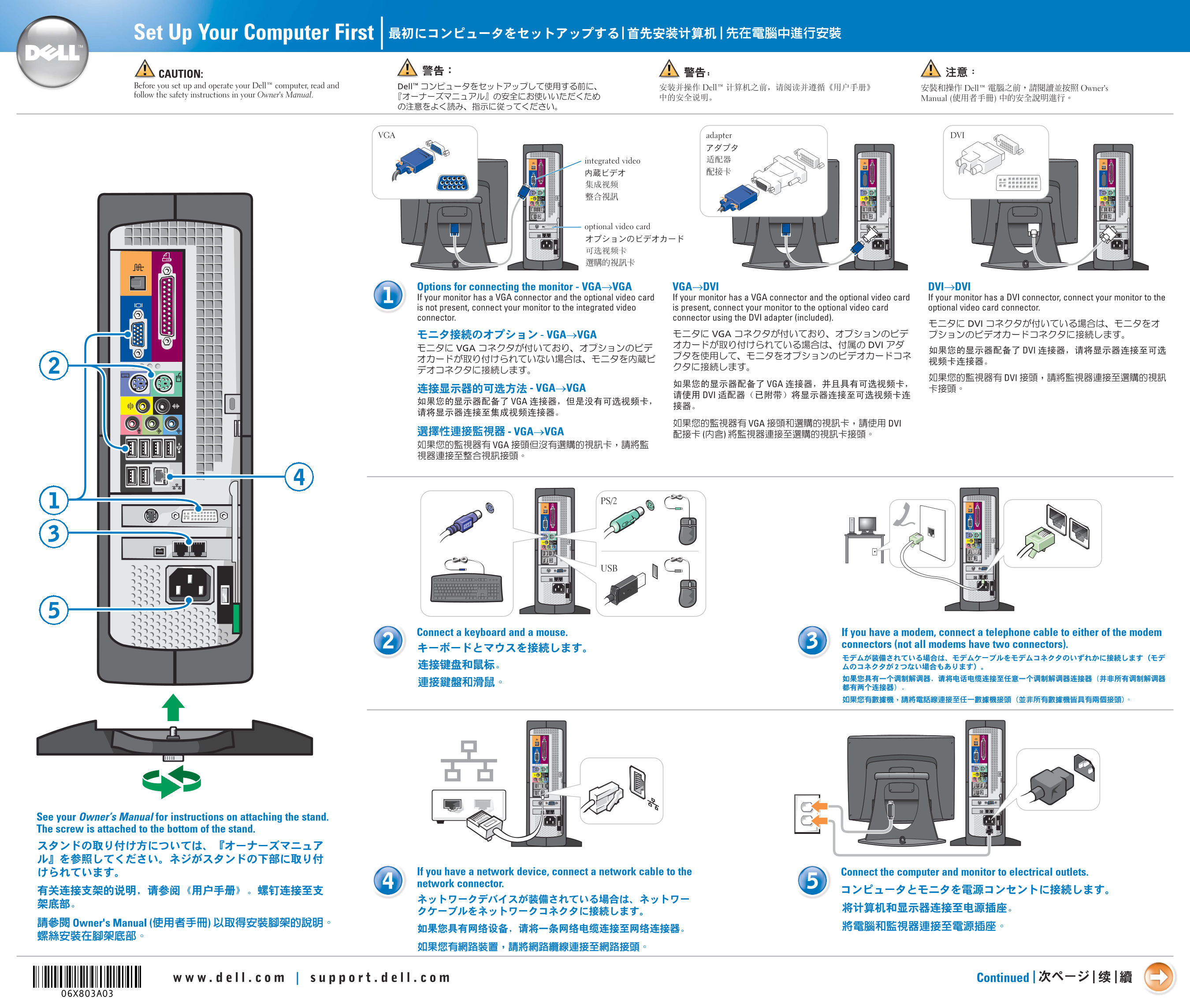

Page 1 Text Content
6X803ap3.qxd 9/4/2003 10:51 AM Page 1
Set Up Your Computer First | |
CAUTION: Before you set up and operate your Dell™ computer, read and follow the safety instructions in your Owner's Manual.
VGA adapter DVI
integrated video
optional video card
Options for connecting the monitor - VGA→VGA VGA→DVI DVI→DVI If your monitor has a VGA connector and the optional video card If your monitor has a VGA connector and the optional video card If your monitor has a DVI connector, connect your monitor to the is not present, connect your monitor to the integrated video is present, connect your monitor to the optional video card optional video card connector. connector. connector using the DVI adapter (included).
Connect a keyboard and a mouse. If you have a modem, connect a telephone cable to either of the modem
connectors (not all modems have two connectors).
See your Owner’s Manual for instructions on attaching the stand. The screw is attached to the bottom of the stand.
Connect the computer and monitor to electrical outlets.If you have a network device, connect a network cable to the
network connector.
Continued | |
Page Summary Contents For Dell Dimension 4600C Installation Charts
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 2.60 MB |
| Published | July 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I connect my monitor if I have optional video adapters?
Use an appropriate adapter like VGA→DVI or DVI→DVI, depending on your specific monitor and additional cards.
What type of devices can I plug into the IEEE 1394 connector?
You can connect dedicated peripherals such as digital cameras to the IEEE 1394 port.
Where should I look for help setting up my Dell computer?
Consult your Owner's Manual, or access support via support.dell.com and use the "Tell Me How" function within the Start menu.
