Dell Dimension 1100 B110 Installation Diagrams

Summary

This legacy setup guide for a Dell Dimension desktop computer (2004) provides illustrated instructions for connecting a monitor, keyboard and mouse via PS/2 or USB, network and modem cables, and power connections. It documents front and back USB 2.0 connectors, integrated sound with headphone connector, optional floppy drive, and guidance on connecting additional devices. Includes instructions for accessing the Dimension Help file from Windows Help and Support and the Dell Support website. Designed for home users from the 2004 era.

📄 Preview ‹ PAGE OF 2 ›

‹

Dell Dimension 1100 B110 Installation Diagrams - Page 1

›

Page 1 Text Content

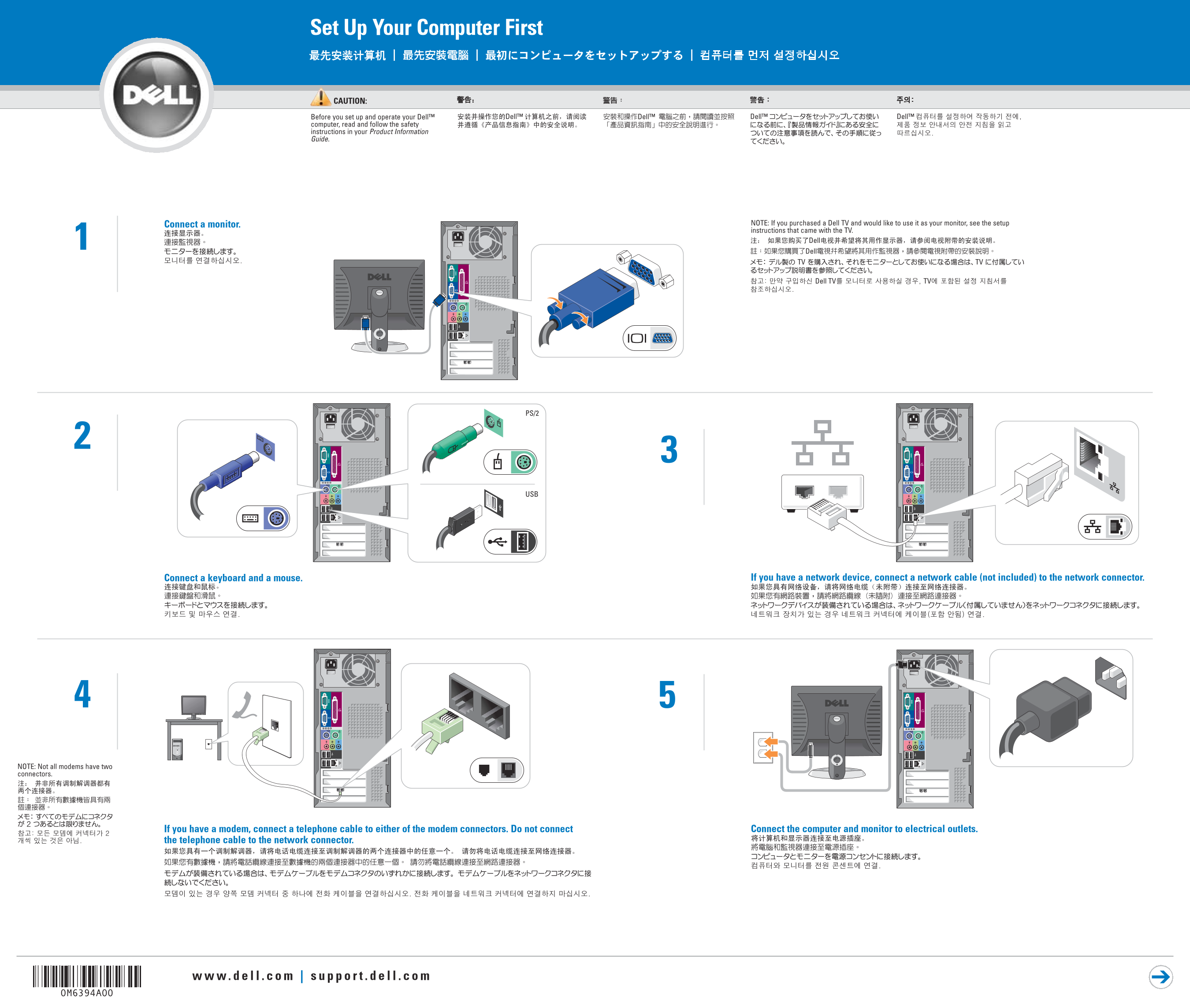

Set Up Your Computer First

CAUTION: Before you set up and operate your Dell™ computer, read and follow the safety instructions in your Product Information Guide.

Connect a monitor. NOTE: If you purchased a Dell TV and would like to use it as your monitor, see the setup instructions that came with the TV.

Connect a keyboard and a mouse. If you have a network device, connect a network cable (not included) to the network connector.

NOTE: Not all modems have two connectors.

If you have a modem, connect a telephone cable to either of the modem connectors. Do not connect Connect the computer and monitor to electrical outlets.

the telephone cable to the network connector.

Page Summary Contents For Dell Dimension 1100 B110 Installation Diagrams

Page 1 Set Up Your Computer First CAUTION: Before you set up and operate your Dell™ computer, read and follow the safety instructions in your Product Information Guide. Connect a monitor. NOTE: If you purcha...

Page 2 Set Up Other Devices Last Turn on the computer and monitor. Connect other devices according to their documentation. optional floppy drive If your integrated sound connectors are covered by a cap, conn...
