The AP-220-MNT-W1 Wall Mount Kit Installation Guide provides step-by-step instructions for mounting compatible Aruba wireless access points (APs) to a wall. The guide covers attaching the wall mount adapter using user-provided screws and wall anchors, connecting cables and antennas to the AP, and securing the AP to the mounting bracket by rotating it clockwise until it clicks into place. It includes diagrams showing different wall attachment methods and the completed installation. This manual is intended for IT installers and network technicians deploying wireless infrastructure in office or enterprise environments.
Page 1 Text Content

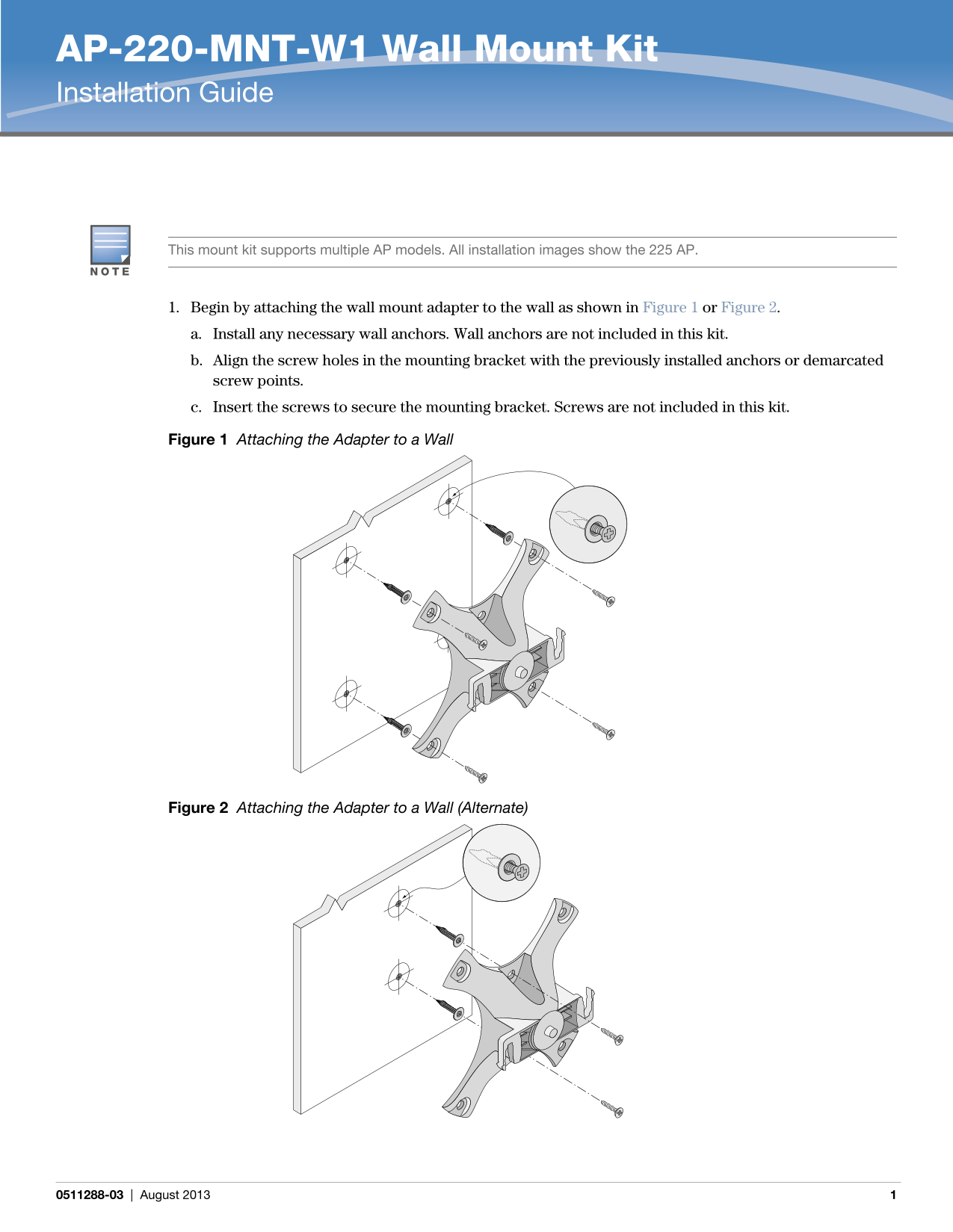

AP-220-MNT-W1 Wall Mount Kit Installation Guide
This mount kit supports multiple AP models. All installation images show the 225 AP.
1. Begin by attaching the wall mount adapter to the wall as shown in Figure 1 or Figure 2. a. Install any necessary wall anchors. Wall anchors are not included in this kit. b. Align the screw holes in the mounting bracket with the previously installed anchors or demarcated screw points. c. Insert the screws to secure the mounting bracket. Screws are not included in this kit.
Figure 1 Attaching the Adapter to a Wall
Figure 2 Attaching the Adapter to a Wall (Alternate)
0511288-03 | August 2013
Page Summary Contents For Dell AP-220-МNT-В1 Wall Mount Installation Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 285.84 KB |
| Published | June 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What do I need before starting the installation?
Wall anchors and necessary screws are required, but they are not included in this kit.
How is the adapter attached to the wall?
Attach the wall mount adapter by aligning the screw holes with anchors and securing it with screws.
How should I physically attach the AP to the mounting adapter?
Align the AP so its tabs are at a 30-degree angle to the adapter, then rotate the unit clockwise until it clicks into place while pushing toward the wall.
