Dell AP-220-MTN-W2 Wall Mount Kit - Installation Guide
Summary
This AP-220-MNT-W2 Wall Mount Kit Installation Guide provides step-by-step instructions for installing Aruba access points using the wall mount bracket. The manual covers package contents, Ethernet cable routing options (from below, behind, or using adapters), mounting bracket installation procedures, and security screw usage. It includes diagrams for different cable routing configurations and installation scenarios. Target users are IT technicians and network installers responsible for physically deploying wireless access points in indoor environments.
Page 1 Text Content
AP-220-MNT-W2 Wall Mount Kit Installation Guide
This mount kit supports multiple AP models. All installation images show the 225 AP.
Package Contents AP-220-MNT-W2 Mounting Bracket 2x Ethernet Cable Adapter T8 Torx Security Screw
Installation Complete the following steps to install your access point using the AP-220-MNT-W2.
Ethernet Cable Routing Options There are three options for routing the Ethernet cable depending the placement of your AP in relation to the source of the Ethernet cable.
Ethernet Cable From Below AP 1. Route the Ethernet cable(s) through the channel in the rear of the mount. 2. Loop the Ethernet cable(s) over the top of the mount and direct the cable(s) through the opening leading to the AP’s Ethernet ports. 3. If required, route the power cable through the bottom right of mounting bracket. 4. Install the mounting bracket as described in “Installing the Mounting Bracket” on page 3.

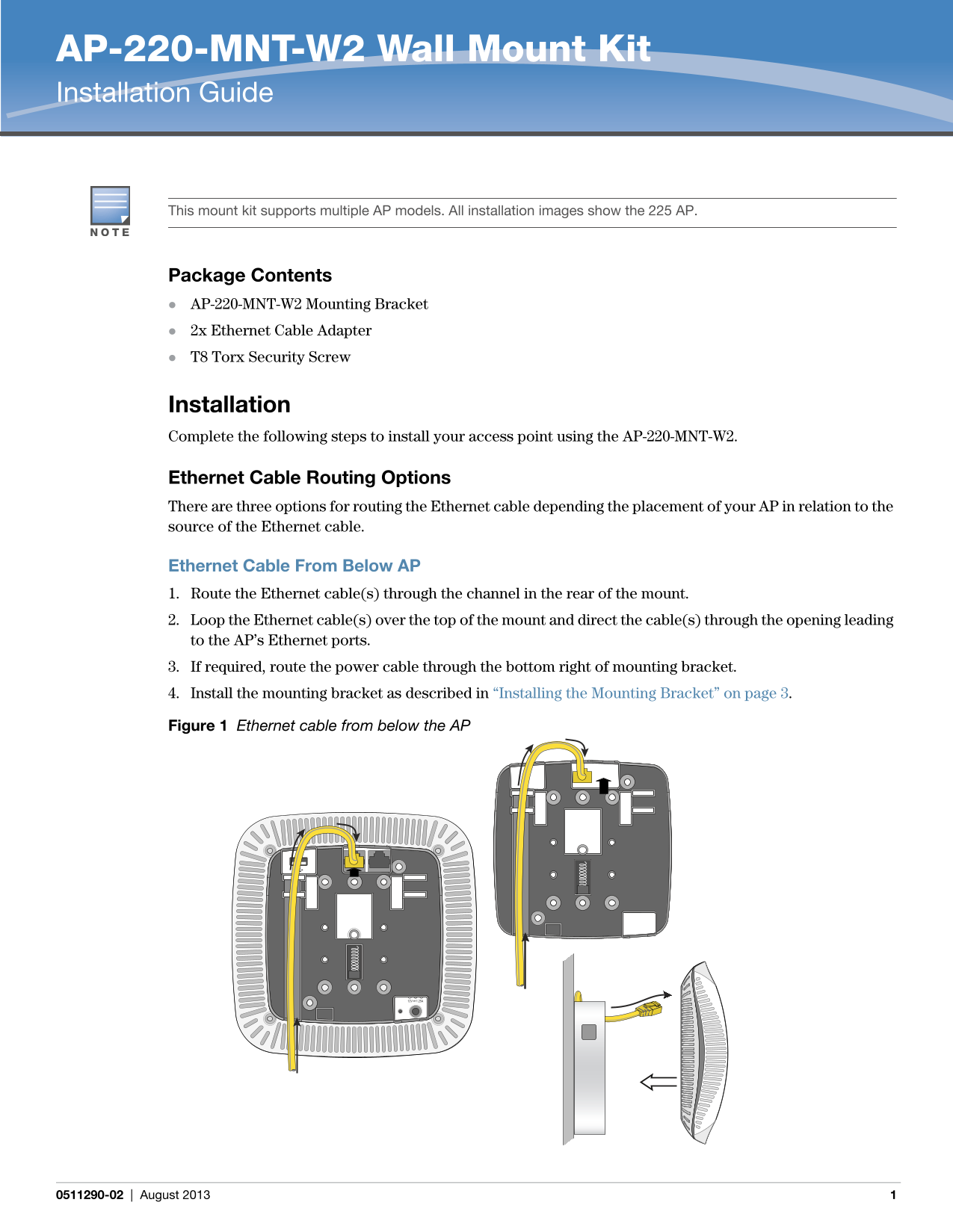

Figure 1 Ethernet cable from below the AP
