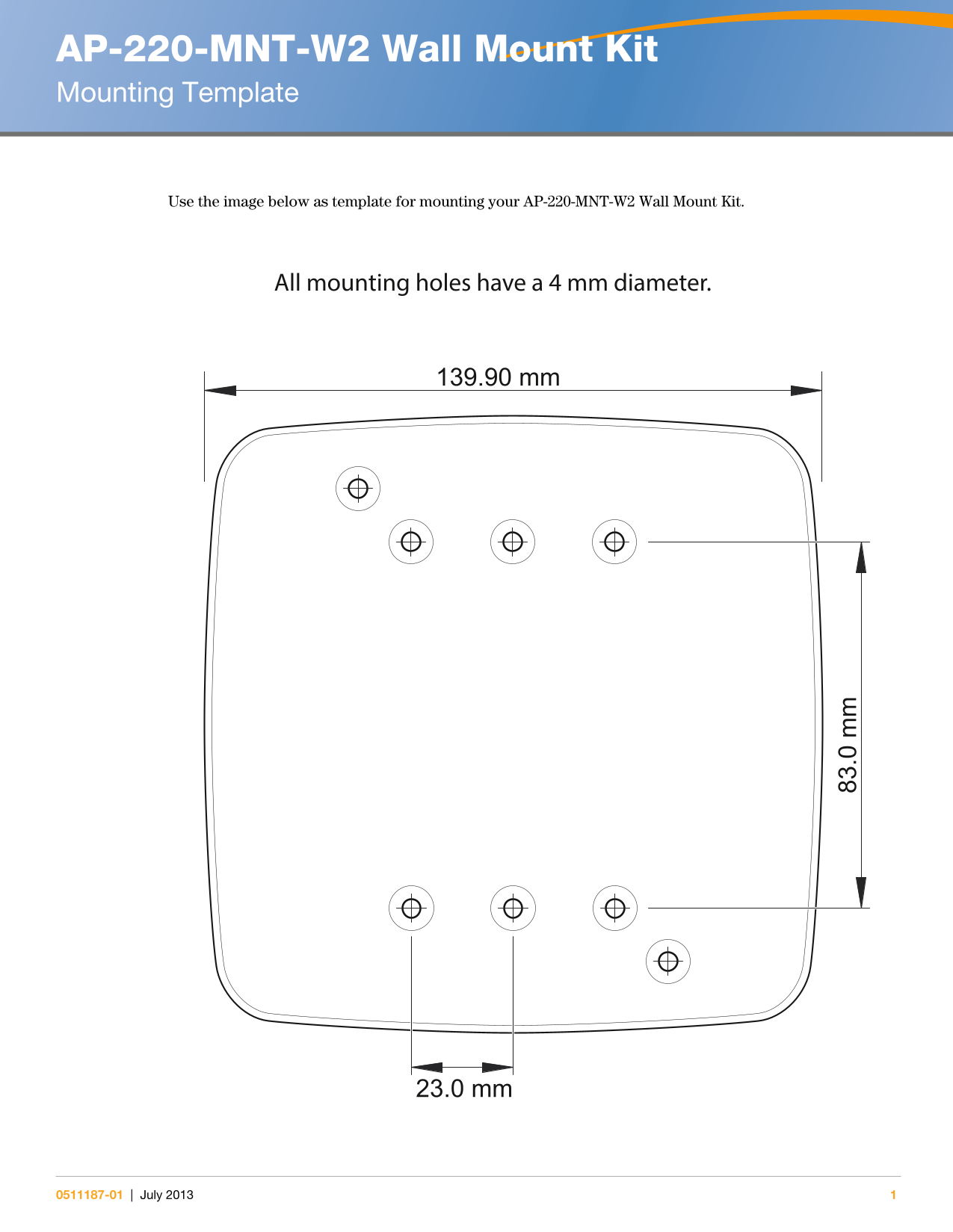

AP-220-MNT-W2 Wall Mount Kit Mounting Template
Use the image below as template for mounting your AP-220-MNT-W2 Wall Mount Kit.
All mounting holes have a 4 mm diameter.
139.90 mm
23.0 mm
0511187-01 | July 2013
