Dell AP-270-MNT-H1 Mounting Kit Mounting Template
Summary
The AP-270-MNT-H1 Mounting Kit Mounting Template provides installation guidance for mounting the AP-270 wireless access point. It includes a drilling template with specified mounting hole diameters of 9mm. This document is intended for network installation technicians and IT infrastructure teams deploying Aruba wireless access points in enterprise environments requiring wall or ceiling mounting.
Page 1 Text Content
AP-270-MNT-H1 Mounting Kit
Mounting Template

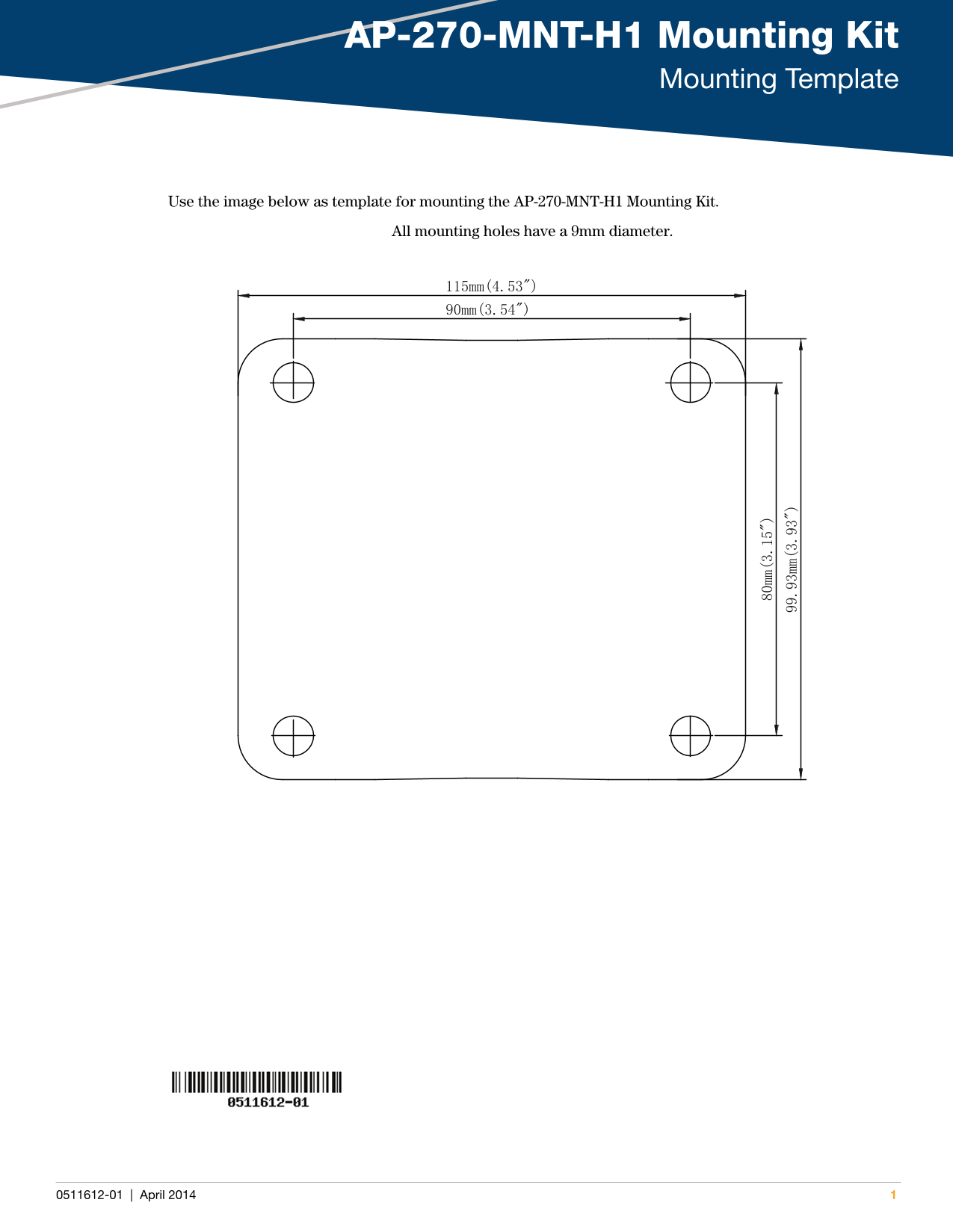

Use the image below as template for mounting the AP-270-MNT-H1 Mounting Kit.
All mounting holes have a 9mm diameter.
0511612-01 | April 2014
Page Summary Contents For Dell AP-270-MNT-H1 Mounting Kit Mounting Template
Page 1
AP-270-MNT-H1 Mounting Kit Mounting Template Use the image below as template for mounting the AP-270-MNT-H1 Mounting Kit. All mounting holes have a 9mm diameter. 0511612-01 | April 2014
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 54.97 KB |
| Published | June 24, 2026 |
12 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the mounting hole dimensions?
All mounting holes have a 9mm diameter.
How is the mounting template used?
Use the image below as a template for mounting the AP-270-MNT-H1 Mounting Kit.
What is the model number on the document?
The model number is 0511612-01.
