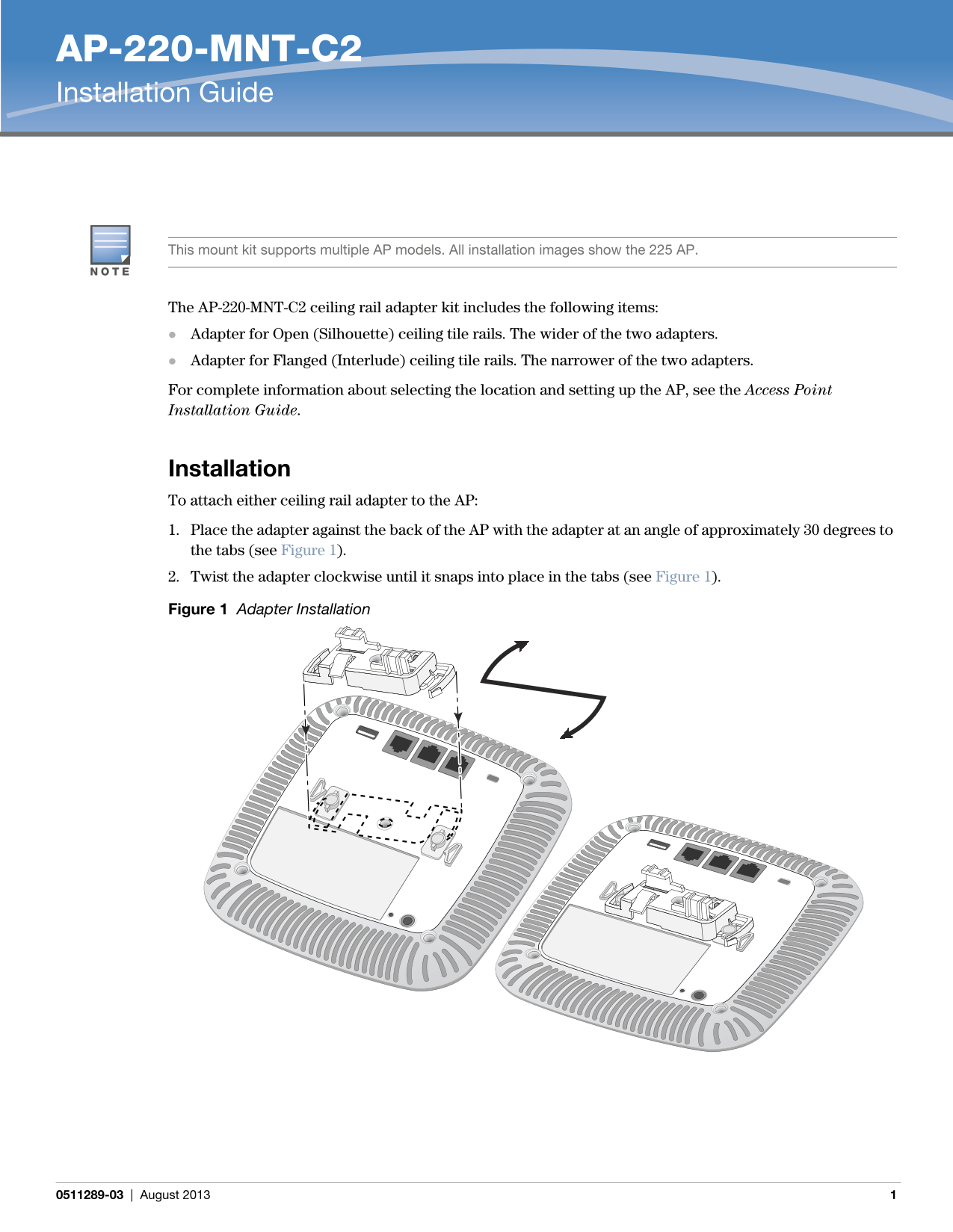

Page 1 Text Content
AP-220-MNT-C2 Installation Guide
This mount kit supports multiple AP models. All installation images show the 225 AP.
The AP-220-MNT-C2 ceiling rail adapter kit includes the following items: Adapter for Open (Silhouette) ceiling tile rails. The wider of the two adapters. Adapter for Flanged (Interlude) ceiling tile rails. The narrower of the two adapters. For complete information about selecting the location and setting up the AP, see the Access Point Installation Guide.
Installation To attach either ceiling rail adapter to the AP: 1. Place the adapter against the back of the AP with the adapter at an angle of approximately 30 degrees to the tabs (see Figure 1). 2. Twist the adapter clockwise until it snaps into place in the tabs (see Figure 1). Figure 1 Adapter Installation
0511289-03 | August 2013
Page Summary Contents For Dell AP-220-MNT-C2 Installation Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 426.70 KB |
| Published | June 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What components are included in the ceiling rail adapter kit?
It includes an adapter for Open (Silhouette) ceiling tile rails and one for Flanged (Interlude) ceiling tile rails.
How should I attach the ceiling rail adapters to the Access Point (AP)?
Place the adapter at a 30-degree angle against the back of the AP, then twist it clockwise until it snaps into place in the tabs.
What is the correct procedure for mounting the AP after attaching the adapter?
Align the AP so the mounting tabs are at a 30-degree angle. Push toward the ceiling tile and rotate the AP clockwise until it clicks onto the rail.
