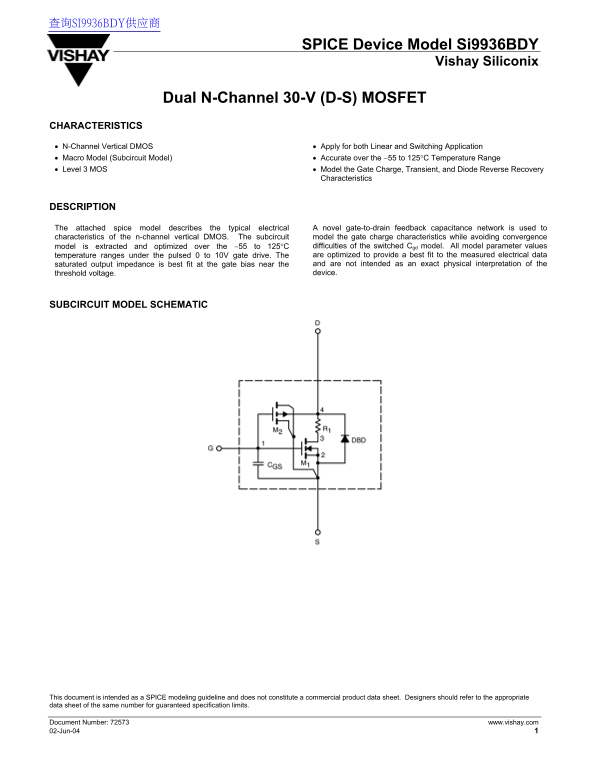

查询SI9936BDY供应商 SPICE Device Model Si9936BDY Vishay Siliconix
Dual N-Channel 30-V (D-S) MOSFET
CHARACTERISTICS
• N-Channel Vertical DMOS
• Apply for both Linear and Switching Application
• Macro Model (Subcircuit Model) • Accurate over the −55 to 125°C Temperature Range • Level 3 MOS • Model the Gate Charge, Transient, and Diode Reverse Recovery
Characteristics
DESCRIPTION
The attached spice model describes the typical electrical
A novel gate-to-drain feedback capacitance network is used to
characteristics of the n-channel vertical DMOS. The subcircuit model the gate charge characteristics while avoiding convergence
model is extracted and optimized over the −55 to 125°C difficulties of the switched Cgd model. All model parameter values temperature ranges under the pulsed 0 to 10V gate drive. The are optimized to provide a best fit to the measured electrical data saturated output impedance is best fit at the gate bias near the and are not intended as an exact physical interpretation of the threshold voltage. device.
SUBCIRCUIT MODEL SCHEMATIC
This document is intended as a SPICE modeling guideline and does not constitute a commercial product data sheet. Designers should refer to the appropriate data sheet of the same number for guaranteed specification limits.
Document Number: 72573 www.vishay.com 02-Jun-04 1
