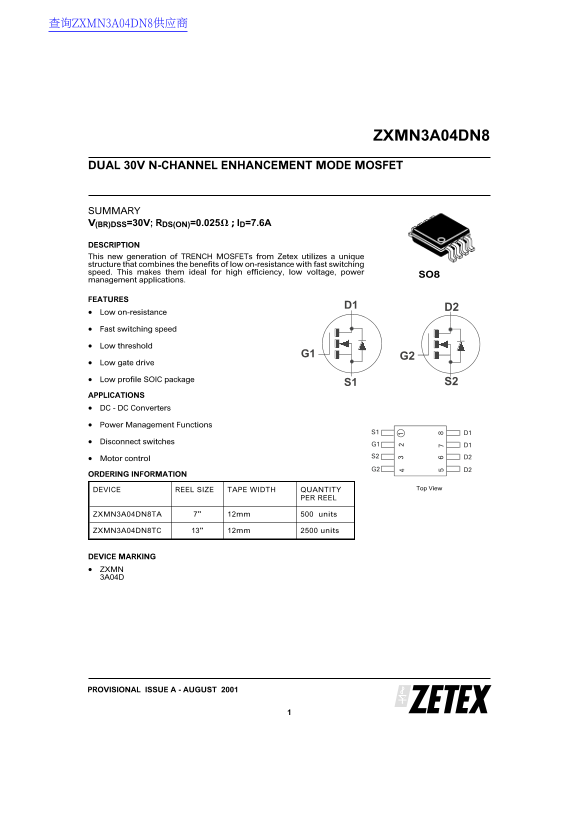

Page 1 Text Content
查询ZXMN3A04DN8供应商
ZXMN3A04DN8
DUAL 30V N-CHANNEL ENHANCEMENT MODE MOSFET
SUMMARY V(BR)DSS=30V; RDS(ON)=0.025 ID=7.6A
DESCRIPTION This new generation of TRENCH MOSFETs from Zetex utilizes unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power
management applications.
FEATURES Low on-resistance
Fast switching speed
Low threshold
Low gate drive
Low profile SOIC package
APPLICATIONS DC - DC Converters
Power Management Functions
Disconnect switches
Motor control
ORDERING INFORMATION
DEVICE REEL SIZE TAPE WIDTH QUANTITY Top View
PER REEL
ZXMN3A04DN8TA 7” 12mm units
ZXMN3A04DN8TC 13” 12mm units
DEVICE MARKING ZXMN 3A04D
PROVISIONAL ISSUE A - AUGUST 2001
