Fairchild FDD6612A FDU6612A 30V N-Channel PowerTrench MOSFET Data Manual

Summary

A high-performance N-Channel PowerTrench MOSFET optimized for maximizing efficiency in power electronics. Engineered with extremely low RDS(ON) and fast switching capability, this component is ideal for advanced DC/DC converters and demanding motor drive applications. The accompanying technical manual provides comprehensive electrical characteristics, thermal performance curves, and detailed guidelines necessary for circuit designers and engineers integrating high-reliability switching components into modern power systems.

📄 Preview PAGE OF 6

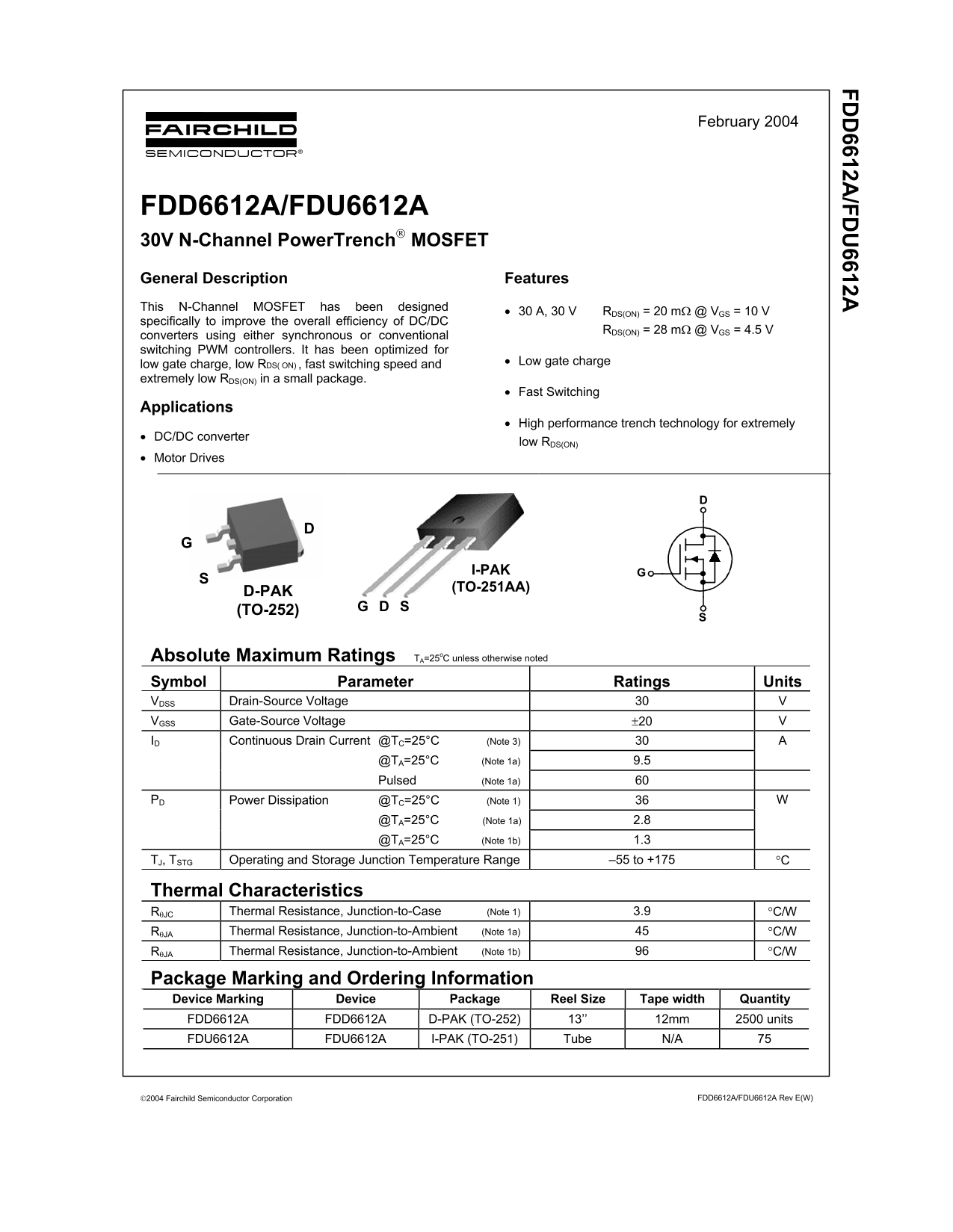

Page 1 Text Content

February 2004

FDD6612A/FDU6612A 30V N-Channel Power Trench MOSFET

General Description Features

This N-Channel MOSFET has been designed

• 30 A, 30 V RDS(ON) = 20 mΩ @ VGS = 10 V

specifically to improve the overall efficiency of DC/DC

RDS(ON) = 28 mΩ @ VGS = 4.5 V

converters using either synchronous or conventional switching PWM controllers. It has been optimized for

• Low gate charge

low gate charge, low RDS( ON) , fast switching speed and extremely low RDS(ON) in a small package.

• Fast Switching

Applications

• High performance trench technology for extremely

• DC/DC converter

low RDS(ON)

• Motor Drives

I-PAK (TO-251AA)

TO-252D-PAK (TO-252)

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage VGSS Gate-Source Voltage ±20 ID Continuous Drain Current @TC=25°C (Note 3)

@TA=25°C (Note 1a) 9.5 Pulsed (Note 1a)

PD Power Dissipation @TC=25°C (Note 1)

@TA=25°C (Note 1a) 2.8 @TA=25°C (Note 1b) 1.3

TJ, TSTG Operating and Storage Junction Temperature Range –55 to +175 °C

Thermal Characteristics

RθJC Thermal Resistance, Junction-to-Case (Note 1) 3.9 °C/W RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJA Thermal Resistance, Junction-to-Ambient (Note 1b) °C/W

Package Marking and Ordering Information Device Marking Device Package Reel Size Tape width Quantity FDD6612A FDD6612A D-PAK (TO-252) 13’’ 12mm 2500 units FDU6612A FDU6612A I-PAK (TO-251) Tube N/A

2004 Fairchild Semiconductor Corporation FDD6612A/FDU6612A Rev E(W)

Page Summary Contents For Fairchild FDD6612A FDU6612A 30V N-Channel PowerTrench MOSFET Data Manual

Page 1 February 2004 FDD6612A/FDU6612A 30V N-Channel Power Trench MOSFET General Description Features This N-Channel MOSFET has been designed • 30 A, 30 V RDS(ON) = 20 mΩ @ VGS = 10 V specifically to improv...
Page 2 6612A /F 6612A Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Drain-Source Avalanche Ratings (Note 2) WDSS Drain-Source Avalanche Energy...
Page 3 6612A /F 6612A Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Drain–Source Diode Characteristics and Maximum Ratings IS Maximum Continuo...
Page 4 (O IZ Typical Characteristics , D IN , D IN (A IN -S -R IS VGS = 3.5V VGS = 10V VDS, DRAIN TO SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A) Figure 1. On-Region Characteristics Figure 2. On-Resistance Varia...
Page 5 , D IN Typical Characteristics , G -S r( t) , N IZ IV IE IS f = 1 MHz ID = 9.5A VGS = 0 V VDS = 10V 20V Qg, GATE CHARGE (n C) VDS, DRAIN TO SOURCE VOLTAGE (V) Figure 7. Gate Charge Characteristics Fig...
Page 6 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
