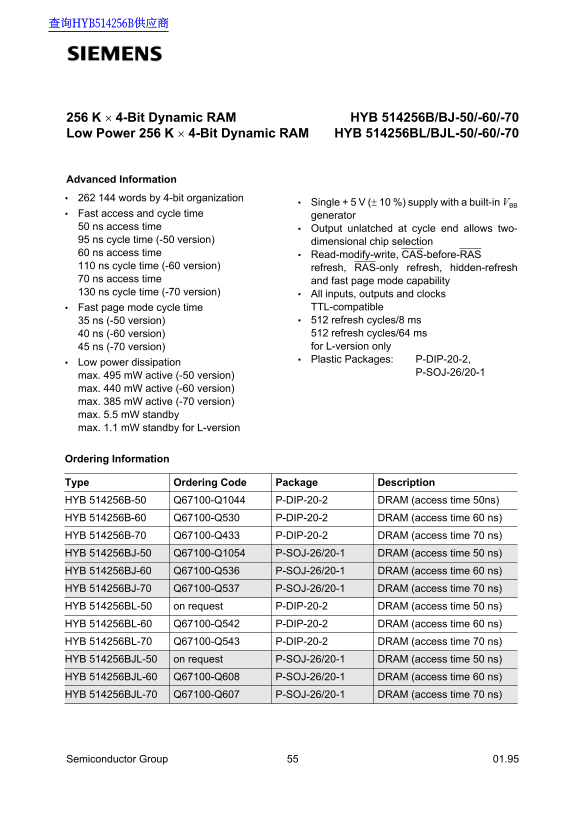

256 K × 4-Bit Dynamic RAM HYB 514256B/BJ-50/-60/-70 Low Power 256 K × 4-Bit Dynamic RAM HYB 514256BL/BJL-50/-60/-70
Advanced Information 262 144 words by 4-bit organization
Single + 5 V (± 10 %) supply with a built-in VBB
Fast access and cycle time generator 50 ns access time Output unlatched at cycle end allows two- 95 ns cycle time (-50 version) dimensional chip selection 60 ns access time Read-modify-write, CAS-before-RAS 110 ns cycle time (-60 version) refresh, RAS-only refresh, hidden-refresh 70 ns access time and fast page mode capability 130 ns cycle time (-70 version) All inputs, outputs and clocks
Fast page mode cycle time TTL-compatible 35 ns (-50 version) 512 refresh cycles/8 ms 40 ns (-60 version) 512 refresh cycles/64 ms 45 ns (-70 version) for L-version only Plastic Packages: P-DIP-20-2,
Low power dissipation
P-SOJ-26/20-1
max. 495 m W active (-50 version) max. 440 m W active (-60 version) max. 385 m W active (-70 version) max. 5.5 m W standby max. 1.1 m W standby for L-version
Ordering Information
Type Ordering Code Package Description HYB 514256B-50 Q67100-Q1044 P-DIP-20-2 DRAM (access time 50ns) HYB 514256B-60 Q67100-Q530 P-DIP-20-2 DRAM (access time 60 ns) HYB 514256B-70 Q67100-Q433 P-DIP-20-2 DRAM (access time 70 ns) HYB 514256BJ-50 Q67100-Q1054 P-SOJ-26/20-1 DRAM (access time 50 ns) HYB 514256BJ-60 Q67100-Q536 P-SOJ-26/20-1 DRAM (access time 60 ns) HYB 514256BJ-70 Q67100-Q537 P-SOJ-26/20-1 DRAM (access time 70 ns) HYB 514256BL-50 on request P-DIP-20-2 DRAM (access time 50 ns) HYB 514256BL-60 Q67100-Q542 P-DIP-20-2 DRAM (access time 60 ns) HYB 514256BL-70 Q67100-Q543 P-DIP-20-2 DRAM (access time 70 ns) HYB 514256BJL-50 on request P-SOJ-26/20-1 DRAM (access time 50 ns) HYB 514256BJL-60 Q67100-Q608 P-SOJ-26/20-1 DRAM (access time 60 ns) HYB 514256BJL-70 Q67100-Q607 P-SOJ-26/20-1 DRAM (access time 70 ns)
Semiconductor Group 01.95
