High-density 4MB, 32-Bit DRAM module built on a durable 72-pin package for demanding applications requiring fast data transfer rates (60ns or 70ns access time). This module is essential for hardware engineers and system designers building reliable compute platforms. The accompanying manual provides comprehensive technical documentation, including detailed electrical characteristics, timing parameters, low power dissipation ratings, and complete operational guidelines necessary for proper integration and guaranteed performance in mission-critical systems.

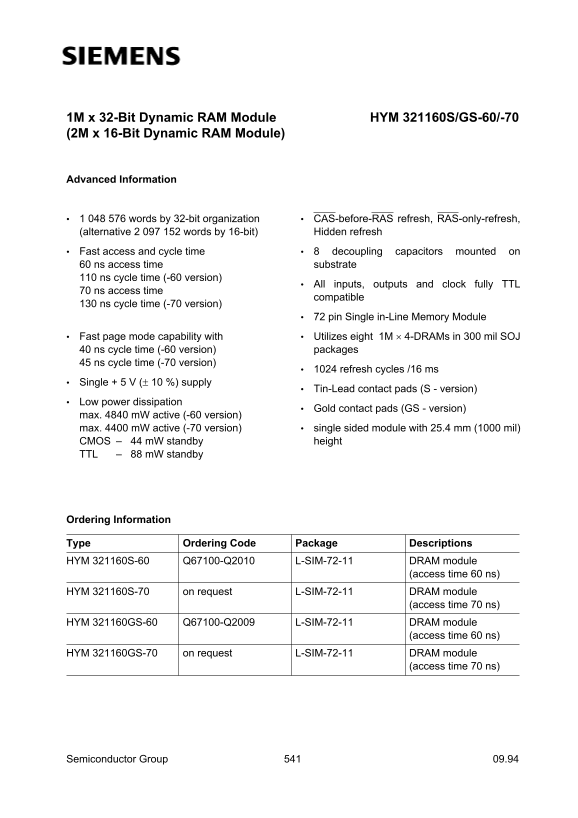

Page 1 Text Content
1M x 32-Bit Dynamic RAM Module HYM 321160S/GS-60/-70 (2M x 16-Bit Dynamic RAM Module)
Advanced Information
1 048 576 words by 32-bit organization CAS-before-RAS refresh, RAS-only-refresh, (alternative 2 097 152 words by 16-bit) Hidden refresh
Fast access and cycle time 8 decoupling capacitors mounted on 60 ns access time substrate 110 ns cycle time (-60 version)
All inputs, outputs and clock fully TTL
70 ns access time
compatible
130 ns cycle time (-70 version)
72 pin Single in-Line Memory Module
Fast page mode capability with Utilizes eight 1M × 4-DRAMs in 300 mil SOJ 40 ns cycle time (-60 version) packages 45 ns cycle time (-70 version)
1024 refresh cycles /16 ms
Single + 5 V (± 10 %) supply
Tin-Lead contact pads (S version)
Low power dissipation
Gold contact pads (GS - version)
max. 4840 m W active (-60 version) max. 4400 m W active (-70 version) single sided module with 25.4 mm (1000 mil) CMOS 44 m W standby height TTL – 88 m W standby
Ordering Information
Type Ordering Code Package Descriptions HYM 321160S-60 Q67100-Q2010 L-SIM-72-11 DRAM module
(access time 60 ns)
HYM 321160S-70 on request L-SIM-72-11 DRAM module
(access time 70 ns)
HYM 321160GS-60 Q67100-Q2009 L-SIM-72-11 DRAM module
(access time 60 ns)
HYM 321160GS-70 on request L-SIM-72-11 DRAM module
(access time 70 ns)
Semiconductor Group 09.94
Page Summary Contents For SIEMENS HYM 1M x 32-Bit Dynamic RAM Module 321160S GS-60 -70 Owner's Manual
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 9 |
| File Size | 126.70 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can I operate this module as a 16-bit dynamic RAM?
You can use it by connecting DQ0 and DQ16, DQ1 and DQ17, up to DQ15 and DQ31.
What is the required initial procedure after powering on the unit?
An initial pause of 200ms is required, followed by at least eight RAS cycles (or eight CAS-before-RAS cycles with internal refresh).
What are the typical voltage requirements for this module?
The power supply voltage range is specified as –1 to +7 V. The operational power supply is +5 V.
Can I use this module in both 60ns and 70ns access speed settings?
Yes, ordering codes are available for the -60 (60 ns) and -70 (70 ns) versions, depending on your timing needs.
