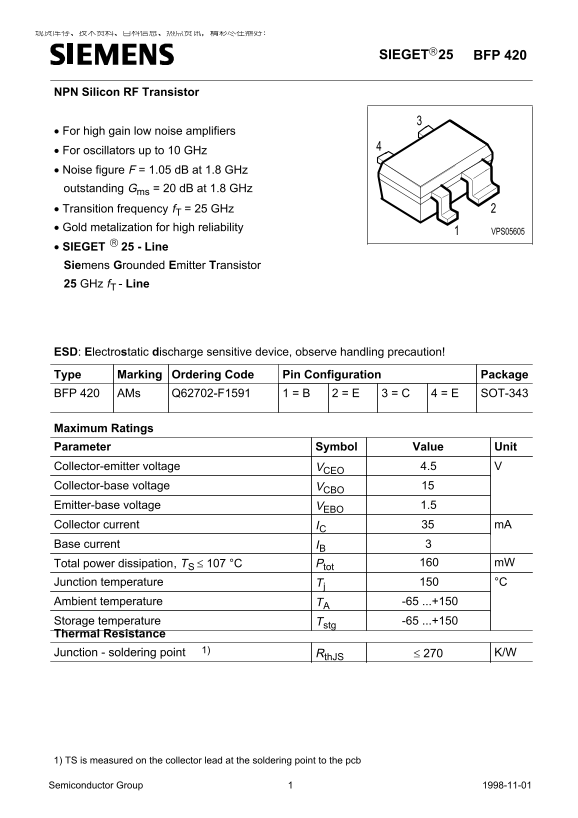

SIEGET25 BFP 420

NPN Silicon RF Transistor

• For high gain low noise amplifiers • For oscillators up to 10 GHz • Noise figure F = 1.05 d B at 1.8 GHz outstanding Gms = 20 d B at 1.8 GHz • Transition frequency f T = 25 GHz • Gold metalization for high reliability

VPS05605

• SIEGET  25 - Line Siemens Grounded Emitter Transistor 25 GHz f T - Line

ESD: Electrostatic discharge sensitive device, observe handling precaution! Type Marking Ordering Code Pin Configuration Package BFP 420 AMs Q62702-F1591 1 = B 2 = E 3 = C 4 = E SOT-343

Maximum Ratings Parameter Symbol Value Unit Collector-emitter voltage VCEO V4.5

VCBO 15Collector-base voltage VEBOEmitter-base voltage 1.5

Collector current m AIC

IB 3Base current

Ptot m W160Total power dissipation, TS ≤ 107 °C

Junction temperature Tj °C

TA -65 ...+150Ambient temperature

Storage temperature Tstg -65 ...+150 Thermal Resistance

Junction - soldering point 1) Rth JS ≤ 270 K/W

1) TS is measured on the collector lead at the soldering point to the pcb

Semiconductor Group Jul-14-19981 Semiconductor Group 1998-11-01

Page Summary Contents For SIEMENS BFP 420 Owner's Manual

Page 1 SIEGET25 BFP 420 NPN Silicon RF Transistor • For high gain low noise amplifiers • For oscillators up to 10 GHz • Noise figure F = 1.05 d B at 1.8 GHz outstanding Gms = 20 d B at 1.8 GHz • Transition ...
Page 2 BFP 420 Electrical Characteristics at TA = 25°C, unless otherwise specified. Parameter Symbol Values Unit min. typ. max. DC characteristics 6.54.5V(BR)CEOCollector-emitter breakdown voltage IC = 1 m A...
Page 3 BFP 420 Common Emitter S-Parameters GHz MAG ANG MAG ANG MAG ANG MAG ANG VCE = 2V, IC = 20m A 0.01 0.543 -2.5 36.88 178.1 0.0009 95.8 0.96 -0.6 Common Emitter Noise Parameters 1) Fmin Ga 1) Γopt RN rn ...
Page 4 BFP 420 SPICE Parameters (Gummel-Poon Model, Berkley-SPICE 2G.6 Syntax) : Transistor Chip Data IS = 0.20045 a A BF = 72.534 NF = 1.2432 VAF = 28.383 IKF = 0.48731 ISE = 19.049 p A NE = 2.0518 BR = 7.8...
Page 5 BFP 420 For non-linear simulation: • Use transistor chip parameters in Berkeley SPICE 2G.6 syntax for all simulators. • If you need simulation of thereverse characteristics, add the diode with the C’-...
Page 6 BFP 420 Total power dissipation Ptot = f (TA*, TS) Transition frequency f T = f (IC) * Package mounted on epoxy f = 2 GHz VCE = parameter in V 2 to 4 Ptot f T TA,TS IC Permissible Pulse Load Rth JS = ...
Page 7 BFP 420 Power gain Gma, Gms, |S21|2 = f ( f ) Power gain Gma, Gms = f (IC) VCE = 2V, IC = 20 m A VCE = 2V f = parameter in GHz 0.0 1.0 2.0 3.0 4.0 GHz 6.0 m A Power gain Gma, Gms = f (VCE) Collector-b...
Page 8 BFP 420 Noise figure F = f (IC) Noise figure F = f (IC) VCE = 2 V, ZS = ZSopt VCE = 2 V, f = 1.8 GHz ZS = 50 Ohm ZS = ZSopt f = 6 GHz 1.0 f = 5 GHz f = 4 GHz f = 3 GHz f = 2.4 GHz f = 1.8 GHz f = 0.9 ...
