Siemens BFP 450 User's Manual

Summary

The SIEGET 25 BFP 450 is a high-reliability NPN Silicon RF Transistor designed for robust performance in medium power amplifier applications. This comprehensive manual provides detailed technical specifications, including maximum ratings, full set of S-parameters, and noise figure measurements across various frequencies. It covers critical operating parameters (such as gain, compression point, and transition frequency) essential for electrical engineers and microwave circuit designers developing advanced RF systems.

📄 Preview PAGE OF 8

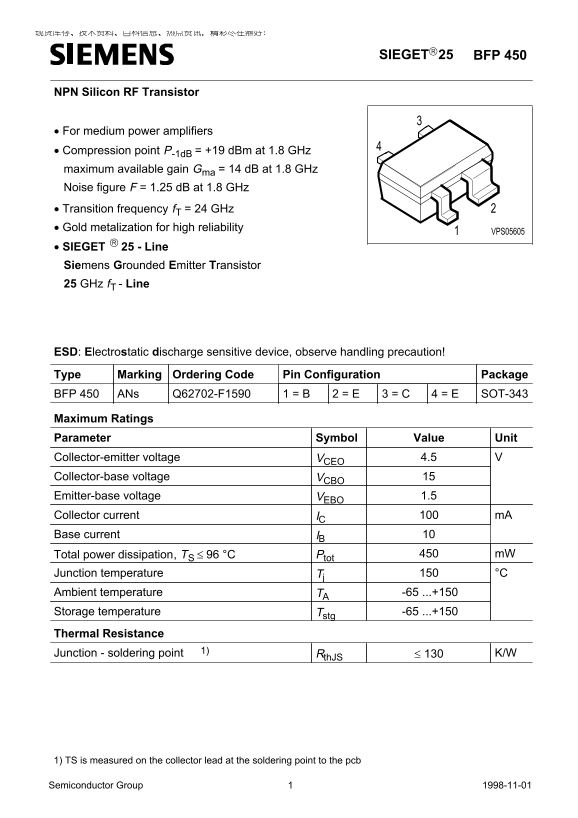

Page 1 Text Content

SIEGET25 BFP 450

NPN Silicon RF Transistor

• For medium power amplifiers • Compression point P-1d B = +19 d Bm at 1.8 GHz maximum available gain Gma = 14 d B at 1.8 GHz Noise figure F = 1.25 d B at 1.8 GHz • Transition frequency f T = 24 GHz • Gold metalization for high reliability

VPS05605

• SIEGET  25 - Line Siemens Grounded Emitter Transistor 25 GHz f T - Line

ESD: Electrostatic discharge sensitive device, observe handling precaution! Type Marking Ordering Code Pin Configuration Package BFP 450 ANs Q62702-F1590 1 = B 2 = E 3 = C 4 = E SOT-343

Maximum Ratings Parameter Symbol Value Unit Collector-emitter voltage VCEO V4.5

VCBO 15Collector-base voltage VEBOEmitter-base voltage 1.5

Collector current m AIC

IB 10Base current

Ptot m W450Total power dissipation, TS ≤ 96 °C

Junction temperature Tj °C

TA -65 ...+150Ambient temperature

Storage temperature Tstg -65 ...+150 Thermal Resistance Junction - soldering point 1) Rth JS ≤ 130 K/W

1) TS is measured on the collector lead at the soldering point to the pcb

Semiconductor Group Sep-09-19981 Semiconductor Group 1998-11-01

Page Summary Contents For Siemens BFP 450 User's Manual

Page 1 SIEGET25 BFP 450 NPN Silicon RF Transistor • For medium power amplifiers • Compression point P-1d B = +19 d Bm at 1.8 GHz maximum available gain Gma = 14 d B at 1.8 GHz Noise figure F = 1.25 d B at 1...
Page 2 BFP 450 Electrical Characteristics at TA = 25°C, unless otherwise specified. Parameter Symbol Values Unit min. typ. max. DC characteristics 6.54.5V(BR)CEOCollector-emitter breakdown voltage IC = 1 m A...
Page 3 BFP 450 Common Emitter S-Parameters GHz MAG ANG MAG ANG MAG ANG MAG ANG VCE = 2V, IC = 50m A 0.01 0.143 -30.7 69.9 174.8 0.0018 85.2 0.904 -6.6 0.1 0.469 -121.7 51.98 125.6 0.0139 59.6 0.744 -64.2 0.5...
Page 4 BFP 450 SPICE Parameters (Gummel-Poon Model, Berkley-SPICE 2G.6 Syntax) : Transistor Chip Data IS = 0.13125 f A BF = 76.123 NF = 0.79652 VAF = 24.165 IKF = 0.58905 ISE = 28.341 p A NE = 1.5563 BR = 21...
Page 5 BFP 450 For non-linear simulation: • Use transistor chip parameters in Berkeley SPICE 2G.6 syntax for all simulators. • If you need simulation of thereverse characteristics, add the diode with the C’-...
Page 6 BFP 450 th JS to Total power dissipation Ptot = f (TA*, TS) Transition frequency f T = f (IC) * Package mounted on epoxy f = 1 GHz VCE = parameter in V 2 to 4 ax / P TA,TS IC Permissible Pulse Load Rt...
Page 7 BFP 450 Power gain Gma, Gms, |S21|2 = f ( f ) Power gain Gma, Gms = f (IC) VCE = 2V, IC = 50 m A VCE = 2V f = parameter in GHz 0.0 1.0 2.0 3.0 4.0 GHz 6.0 m A Power gain Gma, Gms = f (VCE) Collector-b...
Page 8 BFP 450 Noise figure F = f (IC) Noise figure F = f (IC) VCE = 2 V, ZS = ZSopt VCE = 2 V, f = 1.8 GHz f = 4 GHz f = 3 GHz f = 2.4 GHz f = 1.8 GHz ZS = 50Ohm f = 0.9 GHz 0.5 ZS = ZSopt IC IC Noise figur...
