Siemens 6EP1333-3BA00 User's Manual
Summary
This comprehensive manual provides detailed operational guidelines for the stabilized 24V DC power supply unit. Designed for reliable electrical integration within industrial or commercial settings, this professional-grade module ensures stable, high-efficiency power output across wide input ranges (AC 120/230-500 V). The guide covers everything needed, including setup instructions, advanced wiring diagrams, troubleshooting steps, and adherence to critical safety standards. It is essential reading for system integrators, electrical technicians, and hardware designers requiring dependable DC power solutions.
Page 1 Text Content
6EP1333-3BA00

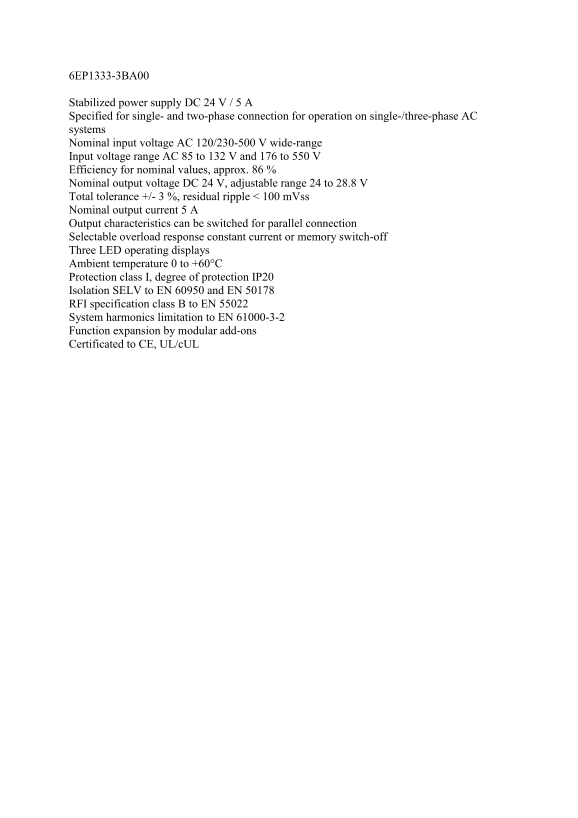

Stabilized power supply DC 24 V / 5 A Specified for single- and two-phase connection for operation on single-/three-phase AC systems Nominal input voltage AC 120/230-500 V wide-range Input voltage range AC 85 to 132 V and 176 to 550 V Efficiency for nominal values, approx. 86 % Nominal output voltage DC 24 V, adjustable range 24 to 28.8 V Total tolerance +/- 3 %, residual ripple < 100 m Vss Nominal output current 5 A Output characteristics can be switched for parallel connection Selectable overload response constant current or memory switch-off Three LED operating displays Ambient temperature 0 to +60°C Protection class I, degree of protection IP20 Isolation SELV to EN 60950 and EN 50178 RFI specification class B to EN 55022 System harmonics limitation to EN 61000-3-2 Function expansion by modular add-ons Certificated to CE, UL/c UL
