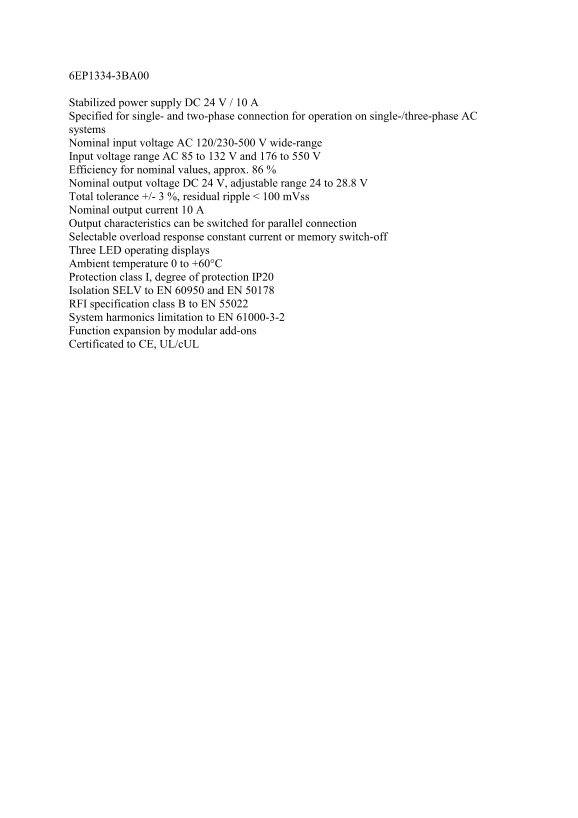

Page 1 Text Content
6EP1334-3BA00
Stabilized power supply DC 24 V / 10 A Specified for single- and two-phase connection for operation on single-/three-phase AC systems Nominal input voltage AC 120/230-500 V wide-range Input voltage range AC 85 to 132 V and 176 to 550 V Efficiency for nominal values, approx. 86 % Nominal output voltage DC 24 V, adjustable range 24 to 28.8 V Total tolerance +/- 3 %, residual ripple < 100 m Vss Nominal output current 10 A Output characteristics can be switched for parallel connection Selectable overload response constant current or memory switch-off Three LED operating displays Ambient temperature 0 to +60°C Protection class I, degree of protection IP20 Isolation SELV to EN 60950 and EN 50178 RFI specification class B to EN 55022 System harmonics limitation to EN 61000-3-2 Function expansion by modular add-ons Certificated to CE, UL/c UL
