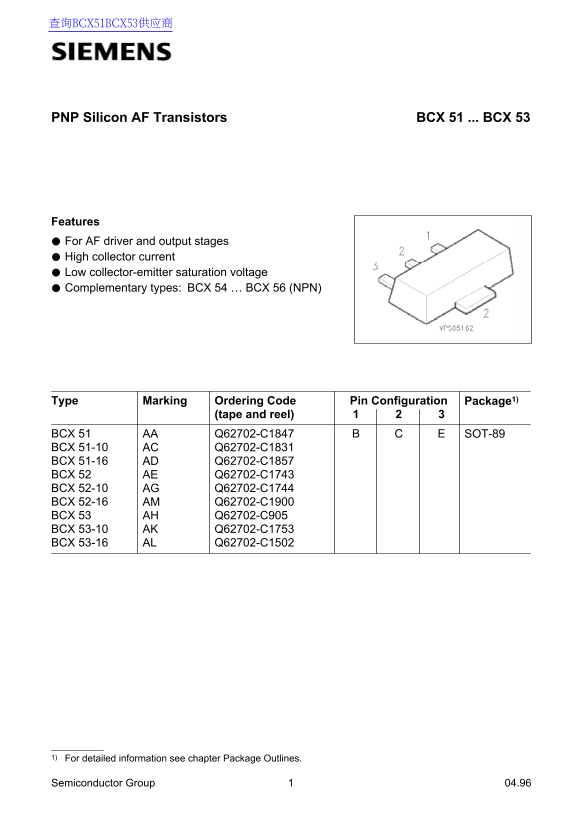

PNP Silicon AF Transistors BCX 51 ... BCX 53
Features For AF driver and output stages High collector current Low collector-emitter saturation voltage Complementary types: BCX 54 BCX 56 (NPN)
Type Marking Ordering Code Package1)Pin Configuration
(tape and reel)
BCX 51 AA Q62702-C1847 SOT-89 BCX 51-10 AC Q62702-C1831 BCX 51-16 AD Q62702-C1857 BCX 52 AE Q62702-C1743 BCX 52-10 AG Q62702-C1744 BCX 52-16 AM Q62702-C1900 BCX 53 AH Q62702-C905 BCX 53-10 AK Q62702-C1753 BCX 53-16 AL Q62702-C1502
1) For detailed information see chapter Package Outlines.
