PHILIPS PEMB13; PUMB13 PNP PNP Resistor-Equipped Transistors User Manual & Data Sheet
Summary
These resistor-equipped PNP/PNP transistors (PEMB13/PUMB13) simplify circuit design by offering built-in bias resistors, allowing engineers to reduce component count in digital and low current peripheral applications. This manual provides comprehensive data sheets covering electrical limits, thermal characteristics, detailed package outlines for SOT666 and SOT363, and application guidelines essential for seamless system integration.
Page 1 Text Content
查询PEMB13供应商
DISCRETE SEMICONDUCTORS
DATA SHEET

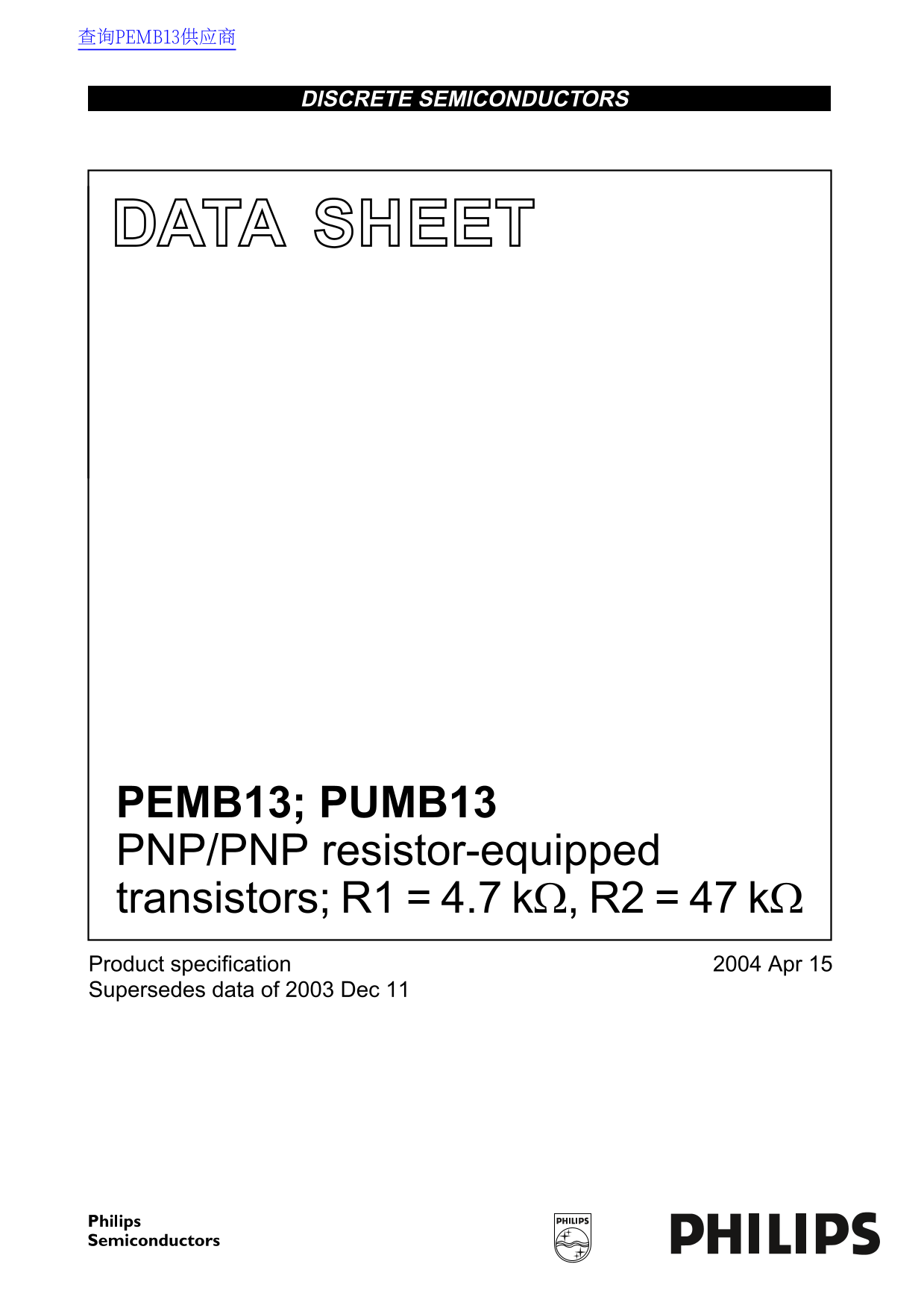

PEMB13; PUMB13 PNP/PNP resistor-equipped transistors; R1 4.7 kΩ, R2 kΩ Product specification Apr Supersedes data of 2003 Dec 11
Page Summary Contents For PHILIPS PEMB13; PUMB13 PNP PNP Resistor-Equipped Transistors User Manual & Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 50.11 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the primary benefits of using PEMB13 or PUMB13 transistors?
They feature built-in bias resistors (R1 and R2), which simplifies circuit design, reduces component count, and lowers pick and place costs.
How much total power dissipation can these devices handle?
Maximum total power dissipation varies by package: 200 mW for SOT363 or 300 mW for SOT666 at room temperature.
What is the recommended soldering method when mounting this component?
Reflow soldering is specified as the only recommended soldering method during assembly.
What is the maximum operating voltage (CEO)?
The collector-emitter voltage ($V_{CEO}$) open collector rating must not exceed -50 V.
