PHILIPS PUMF12 PNP GENERAL PURPOSE TRANSISTOR; NPN RESISTOR-EQUIPPED TRANSISTOR USER MANUAL / DATASHEET
Summary
Discrete semiconductor datasheet for the Philips PUMF12 dual transistor in SOT363 package, replacing two SOT323 devices. Contains one PNP general purpose transistor (50V, 100mA, 200mW) and one NPN resistor-equipped transistor (50V, 100mA output, R1=22kOhm, R2=47kOhm). Applications include power management switching for portable equipment. Specifications per Absolute Maximum Rating System (IEC 60134) with thermal limits from -65 to +150 degrees C operating range.
Page 1 Text Content
查询PUMF12供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage
MBD128
PUMF12 PNP general purpose transistor; NPN resistor-equipped transistor Product specification Nov
Page Summary Contents For PHILIPS PUMF12 PNP GENERAL PURPOSE TRANSISTOR; NPN RESISTOR-EQUIPPED TRANSISTOR USER MANUAL / DATASHEET
Page 1

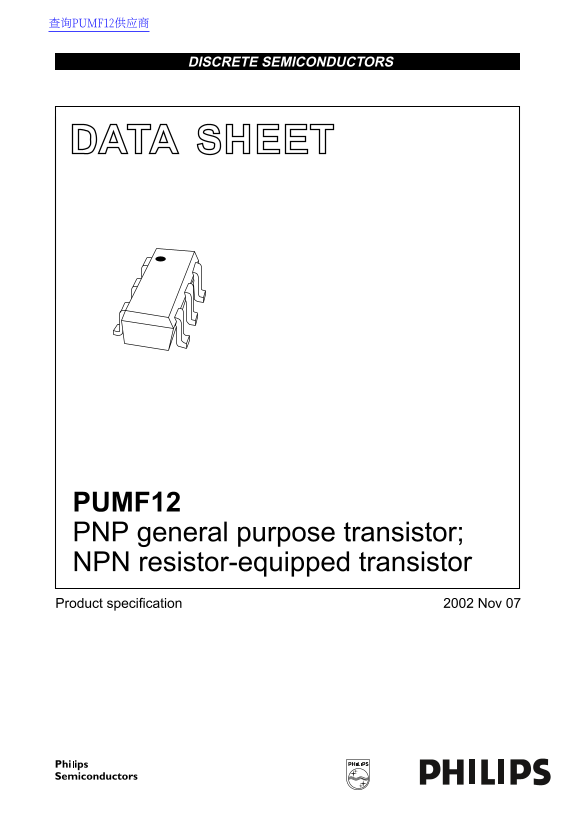

查询PUMF12供应商 DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage MBD128 PUMF12 PNP general purpose transistor; NPN resistor-equipped transistor Product specification Nov
Page 2
Philips Semiconductors Product specification PNP general purpose transistor; PUMF12 NPN resistor-equipped transistor FEATURES QUICK REFERENCE DATA General purpose transistor and resistor equipped SYMB...
Page 3
Philips Semiconductors Product specification PNP general purpose transistor; PUMF12 NPN resistor-equipped transistor LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134). ...
Page 4
Philips Semiconductors Product specification PNP general purpose transistor; PUMF12 NPN resistor-equipped transistor CHARACTERISTICS Tamb °C unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN...
Page 5
Philips Semiconductors Product specification PNP general purpose transistor; PUMF12 NPN resistor-equipped transistor PACKAGE OUTLINE Plastic surface mounted package; 6 leads SOT363 pin 1 index e1 BMbp...
Page 6
Philips Semiconductors Product specification PNP general purpose transistor; PUMF12 NPN resistor-equipped transistor DATA SHEET STATUS DATA SHEET PRODUCT LEVEL DEFINITION STATUS(1) STATUS(2)(3) Object...
Page 7
Philips Semiconductors Product specification PNP general purpose transistor; PUMF12 NPN resistor-equipped transistor NOTES
Page 8
Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
