The PUMB11 is a PNP double transistor featuring built-in bias resistors (R1 and R2), designed to simplify circuit design by minimizing component count and board space. This datasheet provides comprehensive technical details, including absolute maximum ratings, thermal characteristics, and performance curves. It is essential for electrical engineers and designers working on compact interface and driver circuits who require reliable inverter configurations without the need for external resistors.
Page 1 Text Content
查询PUMB11供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage
MBD128
PUMB11 PNP resistor-equipped double transistor Product specification Aug
Page Summary Contents For Philips PUMB11 PNP Resistor-Equipped Double Transistor User and Data Manuals.
Page 1

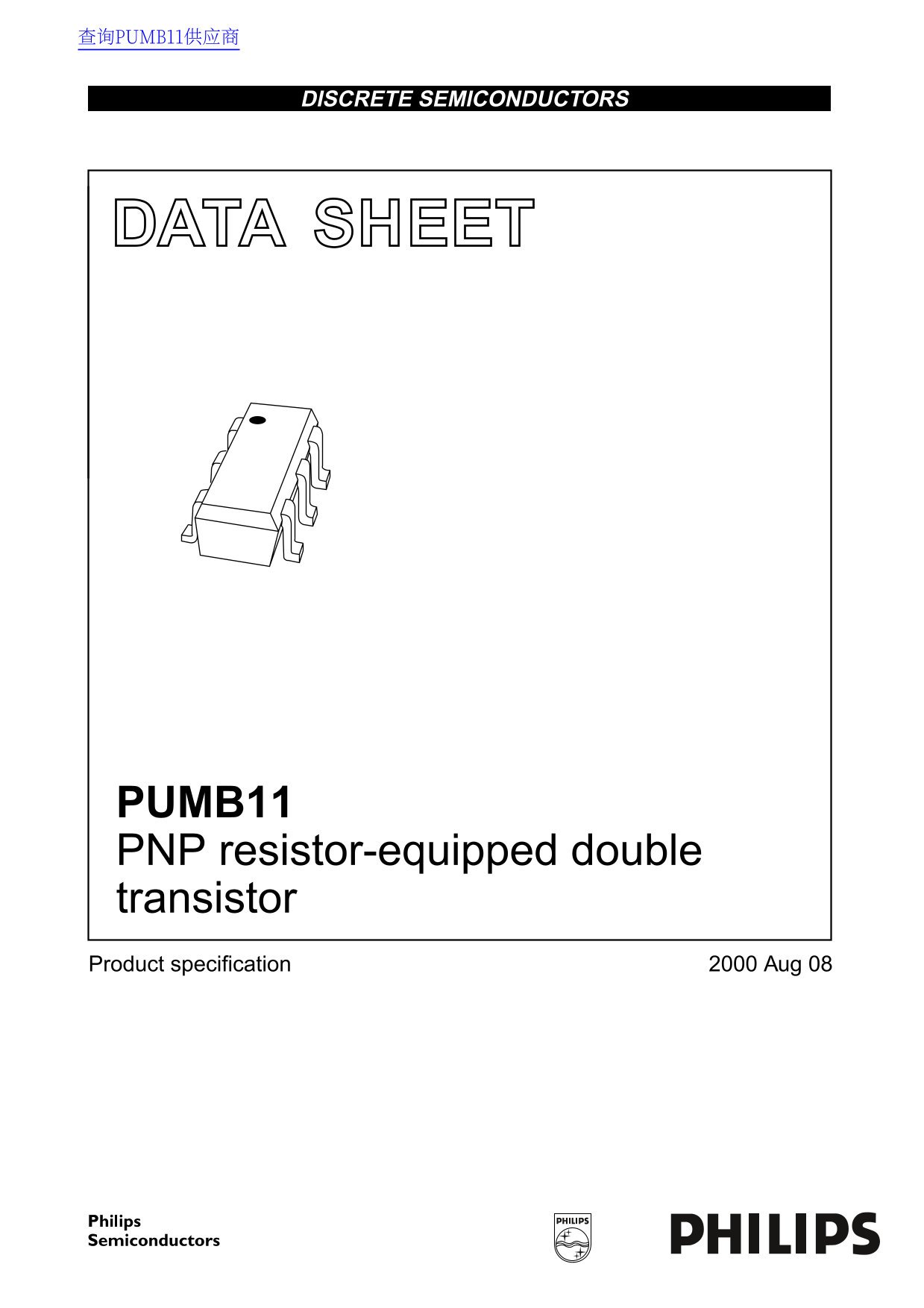

查询PUMB11供应商 DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage MBD128 PUMB11 PNP resistor-equipped double transistor Product specification Aug
Page 2
Philips Semiconductors Product specification PNP resistor-equipped double transistor PUMB11 FEATURES Transistors with built-in bias resistors R1 and R2 (typ. 10 kΩ each) No mutual interference between...
Page 3
Philips Semiconductors Product specification PNP resistor-equipped double transistor PUMB11 LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134). SYMBOL PARAMETER CONDITIO...
Page 4
Philips Semiconductors Product specification PNP resistor-equipped double transistor PUMB11 THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth j-a thermal resistance from junction to a...
Page 5
Philips Semiconductors Product specification PNP resistor-equipped double transistor PUMB11 MLD412 MLD411 handbook, halfpage handbook, halfpage (2) (1) VCEsat (V) IC (m A) IC (m A) VCE −5 V. IC/IB 20....
Page 6
Philips Semiconductors Product specification PNP resistor-equipped double transistor PUMB11 PACKAGE OUTLINE Plastic surface mounted package; 6 leads SOT363 pin 1 index e1 BMbp Lp detail X scale DIMENS...
Page 7
Philips Semiconductors Product specification PNP resistor-equipped double transistor PUMB11 DATA SHEET STATUS PRODUCT DATA SHEET STATUS DEFINITIONS STATUS Objective specification Development This data...
Page 8
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
