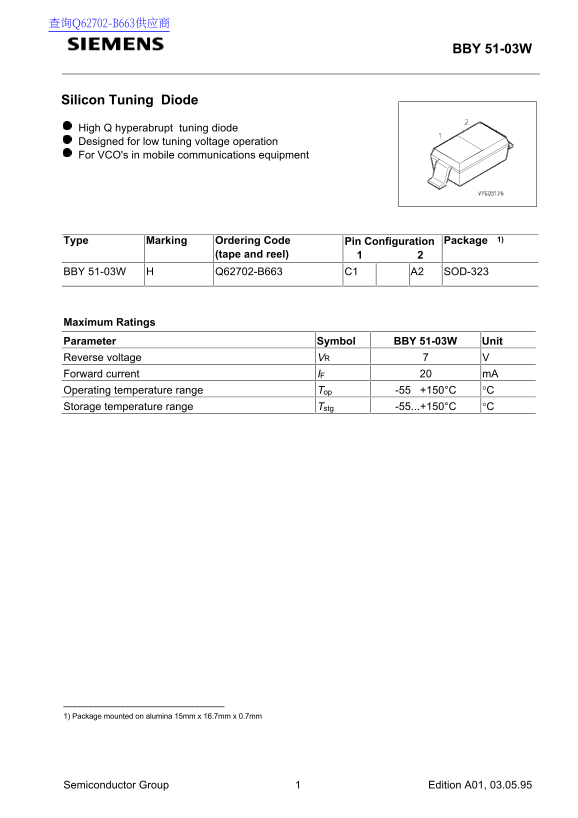

BBY 51-03W
Silicon Tuning Diode
High Q hyperabrupt tuning diode Designed for low tuning voltage operation For VCO's in mobile communications equipment
Type Marking Ordering Code Pin Configuration Package 1)
(tape and reel) 1 2
BBY 51-03W Q62702-B663 C1 A2 SOD-323
Maximum Ratings Parameter Symbol BBY 51-03W Unit Reverse voltage VR Forward current IF m A Operating temperature range -55 +150°C °C Storage temperature range Tstg -55...+150°C °C
1) Package mounted on alumina 15mm x 16.7mm x 0.7mm
