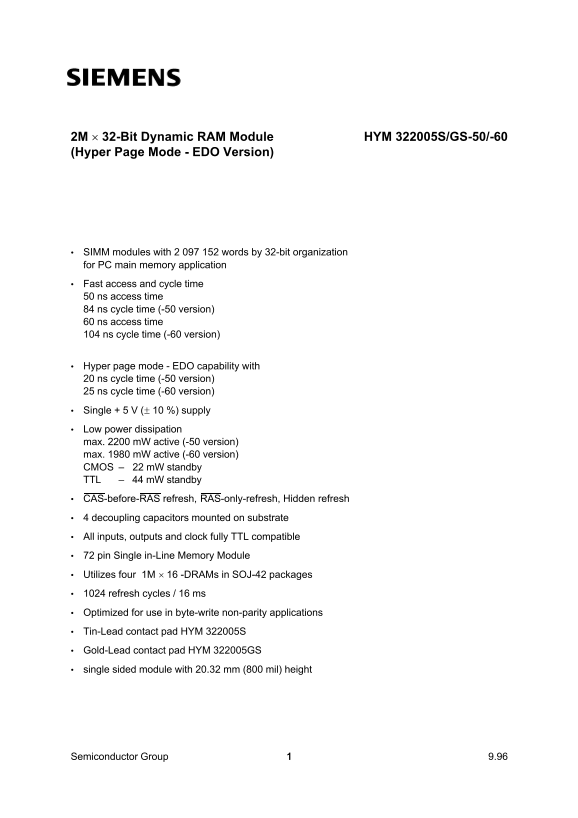

2M × 32-Bit Dynamic RAM Module HYM 322005S/GS-50/-60 (Hyper Page Mode - EDO Version)
SIMM modules with 2 097 152 words by 32-bit organization for PC main memory application Fast access and cycle time 50 ns access time 84 ns cycle time (-50 version) 60 ns access time 104 ns cycle time (-60 version)
Hyper page mode - EDO capability with 20 ns cycle time (-50 version) 25 ns cycle time (-60 version) Single + 5 V (± 10 %) supply Low power dissipation max. 2200 m W active (-50 version) max. 1980 m W active (-60 version) CMOS – 22 m W standby TTL – 44 m W standby CAS-before-RAS refresh, RAS-only-refresh, Hidden refresh 4 decoupling capacitors mounted on substrate All inputs, outputs and clock fully TTL compatible 72 pin Single in-Line Memory Module Utilizes four 1M × 16 -DRAMs in SOJ-42 packages 1024 refresh cycles / 16 ms Optimized for use in byte-write non-parity applications Tin-Lead contact pad HYM 322005S Gold-Lead contact pad HYM 322005GS single sided module with 20.32 mm (800 mil) height
