The BSM 50 GAL 120 DN2 is a high-performance IGBT Power Module, designed as a robust half-bridge switch with integrated chopper and fast free-wheeling diodes for demanding power electronic applications. Ideal for engineers designing industrial motor drives, inverters, and switching systems that require reliable and efficient energy conversion. This comprehensive manual provides all necessary technical specifications—including maximum ratings, detailed electrical characteristics, and precise switching behavior data—to ensure accurate system integration and optimal performance in harsh operational environments.

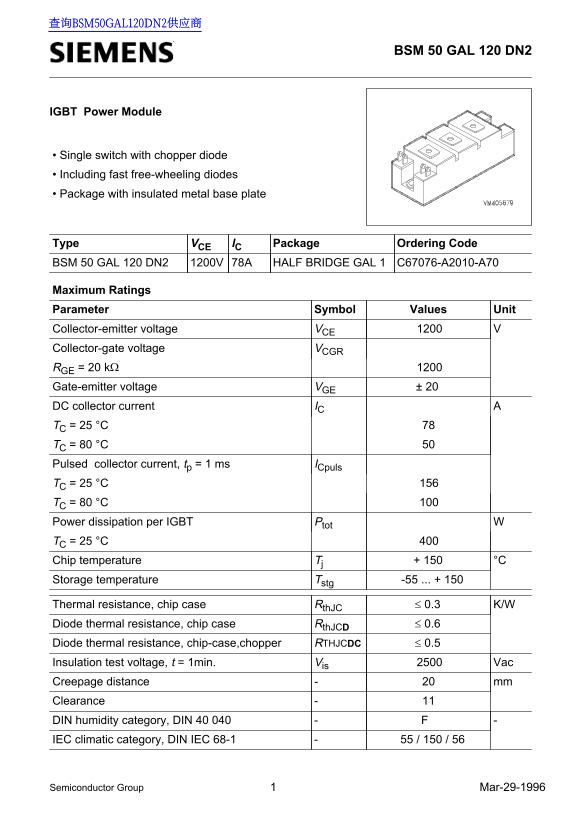

Page 1 Text Content
查询BSM50GAL120DN2供应商
BSM 50 GAL 120 DN2
IGBT Power Module
• Single switch with chopper diode • Including fast free-wheeling diodes • Package with insulated metal base plate
Type VCE IC Package Ordering Code
BSM 50 GAL 120 DN2 1200V 78A HALF BRIDGE GAL 1 C67076-A2010-A70
Maximum Ratings
Parameter Symbol Values Unit
Collector-emitter voltage VCE Collector-gate voltage VCGR RGE = 20 kΩ Gate-emitter voltage VGE ± 20 DC collector current IC TC = 25 °C TC = 80 °C Pulsed collector current, tp = 1 ms ICpuls TC = 25 °C TC = 80 °C Power dissipation per IGBT Ptot TC = 25 °C Chip temperature Tj + 150 °C Storage temperature Tstg -55 ... + 150
Thermal resistance, chip case Rth JC ≤ 0.3 K/W
Diode thermal resistance, chip case Rth JCD ≤ 0.6 Diode thermal resistance, chip-case,chopper RTHJCDC ≤ 0.5
Insulation test voltage, t = 1min. Vis Vac Creepage distance mm Clearance DIN humidity category, DIN 40 040 F - IEC climatic category, DIN IEC 68-1 55 / 150 / 56
Semiconductor Group Mar-29-1996
Page Summary Contents For Siemens BSM 50 GAL 120 DN2 Data Sheet
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 5 |
| File Size | 66.23 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the maximum ratings for this IGBT module?
The collector-emitter voltage (Vce) is rated at 1200 V, and the DC collector current (IcT) is 78 A.
What components and protections does the BSM 50 GAL 120 DN2 include?
It is a single switch with an included chopper diode, fast free-wheeling diodes, and uses a package with an insulated metal base plate.
What is the permissible operating temperature range for the module?
The storage temperature ranges from -55 °C to +150 °C, and the optimal operating temperatures are listed in the specific parameters defined.
How large and heavy is the physical device package?
Dimensions are given in millimeters (not specified), and the total weight of the module is 250 g.
