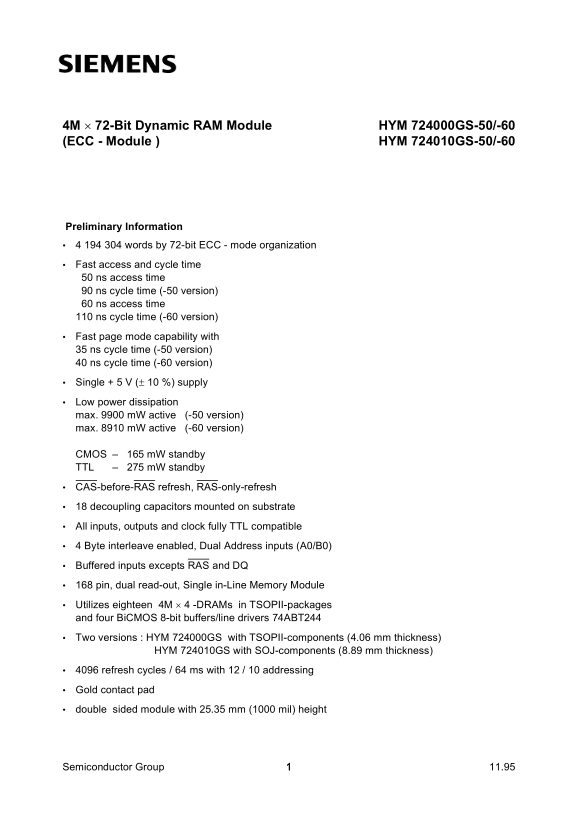

4M × 72-Bit Dynamic RAM Module HYM 724000GS-50/-60 (ECC - Module ) HYM 724010GS-50/-60
Preliminary Information 4 194 304 words by 72-bit ECC - mode organization
Fast access and cycle time 50 ns access time 90 ns cycle time (-50 version) 60 ns access time 110 ns cycle time (-60 version)
Fast page mode capability with 35 ns cycle time (-50 version) 40 ns cycle time (-60 version)
Single + 5 V (± 10 %) supply
Low power dissipation max. 9900 m W active (-50 version) max. 8910 m W active (-60 version)
CMOS – 165 m W standby TTL – 275 m W standby
CAS-before-RAS refresh, RAS-only-refresh
18 decoupling capacitors mounted on substrate
All inputs, outputs and clock fully TTL compatible
4 Byte interleave enabled, Dual Address inputs (A0/B0)
Buffered inputs excepts RAS and DQ
168 pin, dual read-out, Single in-Line Memory Module
Utilizes eighteen 4M × 4 -DRAMs in TSOPII-packages and four Bi CMOS 8-bit buffers/line drivers 74ABT244
Two versions : HYM 724000GS with TSOPII-components (4.06 mm thickness) HYM 724010GS with SOJ-components (8.89 mm thickness)
4096 refresh cycles / 64 ms with 12 / 10 addressing
Gold contact pad
double sided module with 25.35 mm (1000 mil) height
Semiconductor Group 11.95
