HIGH-SPEED 3.3V 256K x 18
ASYNCHRONOUS DUAL-PORT IDT70V631S
STATIC RAM
Features True Dual-Port memory cells which allow simultaneous
access of the same memory location Fully asynchronous operation from either port High-speed access Separate byte controls for multiplexed bus and bus Commercial: 10/12/15ns (max.) matching compatibility Industrial: 12ns (max.) Supports JTAG features compliant to IEEE 1149.1 Dual chip enables allow for depth expansion without Due to limited pin count, JTAG is not supported on the external logic 128-pin TQFP package. IDT70V631 easily expands data bus width to 36 bits or LVTTL-compatible, single 3.3V (±150m V) power supply for more using the Master/Slave select when cascading more core than one device LVTTL-compatible, selectable 3.3V (±150m V)/2.5V (±100m V) M/S = VIH for BUSY output flag on Master, power supply for I/Os and control signals on each port M/S = VIL for BUSY input on Slave Available in a 128-pin Thin Quad Flatpack, 208-ball fine Busy and Interrupt Flags pitch Ball Grid Array, and 256-ball Ball Grid Array On-chip port arbitration logic Industrial temperature range (–40°C to +85°C) is available Full on-chip hardware support of semaphore signaling for selected speeds

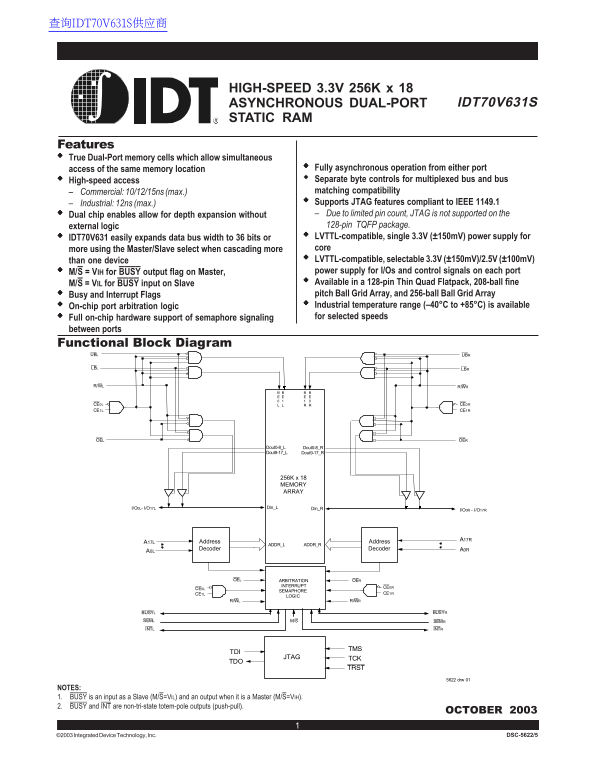

between ports Functional Block Diagram UBL UBR LBL LBR
R/WL R/WR
CE0L CE0R CE1L CE1R
OEROEL
Dout0-8_L Dout0-8_R Dout9-17_L Dout9-17_R
256K MEMORY ARRAY
I/O0L- I/O17L Din_L Din_R
A17L Address Address
ADDR_L ADDR_R
Decoder Decoder A0R
OEL ARBITRATION OER
INTERRUPT CE0R
SEMAPHORE
CE1L CE1R
LOGIC
R/WL R/WR
BUSYL BUSYR
SEML M/S SEMR
INTL INTR
JTAG TCK
NOTES: 1. BUSY is an input as a Slave (M/S=VIL) and an output when it is a Master (M/S=VIH). 2. BUSY and INT are non-tri-state totem-pole outputs (push-pull).
OCTOBER 2003
©2003 Integrated Device Technology, Inc. DSC-5622/5
