FAIRCHILD HCPL062N 3.3V Dual Channel High-Speed Optocoupler Logic Gates Datasheet
Summary
Achieve superior signal isolation with this high-speed, dual-channel logic gate optocoupler. Ideal for reliability across data transmission, field buses, and grounding loop elimination applications, the compact 3.3V component maintains robust connectivity up to 10 MBit/s. This comprehensive guide details all critical specifications, including absolute maximum ratings, detailed electrical characteristics, and precise switching parameters (propagation delay, common mode immunity), making it an essential resource for electrical engineers designing complex, isolated systems.

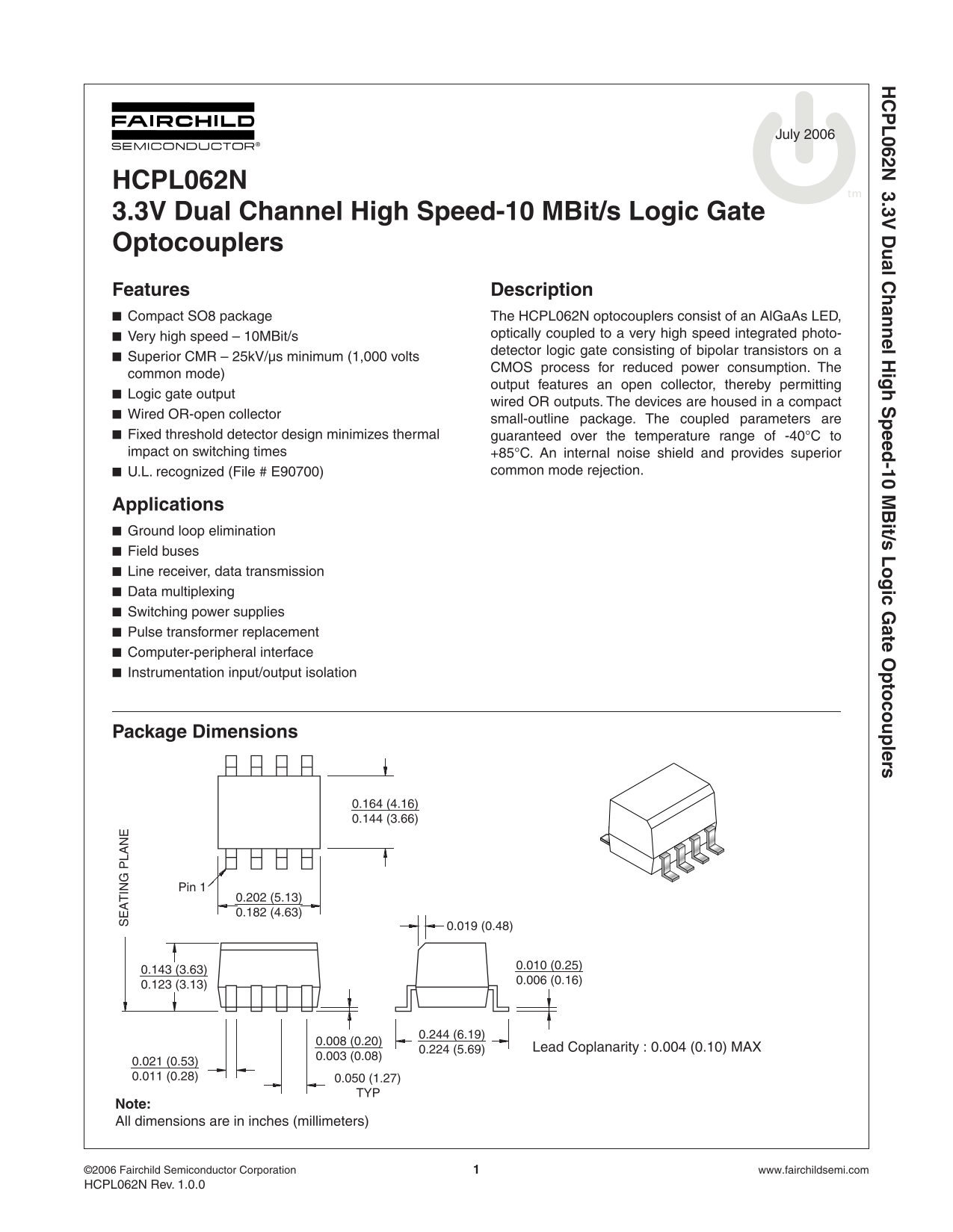

Page 1 Text Content
062N 3.3V al C an el H ig eed -10 M it/s L ic G ate O to co lers
IN LA
July 2006
HCPL062N
3.3V Dual Channel High Speed-10 MBit/s Logic Gate Optocouplers Features Description Compact SO8 package The HCPL062N optocouplers consist of an Al Ga As LED,
Very high speed – 10MBit/s optically coupled to a very high speed integrated photo- detector logic gate consisting of bipolar transistors on a
Superior CMR – 25k V/µs minimum (1,000 volts
CMOS process for reduced power consumption. The
common mode)
output features an open collector, thereby permitting
Logic gate output
wired OR outputs. The devices are housed in a compact
Wired OR-open collector
small-outline package. The coupled parameters are
Fixed threshold detector design minimizes thermal guaranteed over the temperature range of -40°C to impact on switching times +85°C. An internal noise shield and provides superior
U.L. recognized (File # E90700) common mode rejection.
Applications Ground loop elimination Field buses Line receiver, data transmission Data multiplexing Switching power supplies Pulse transformer replacement Computer-peripheral interface Instrumentation input/output isolation
Package Dimensions
Pin 1
0.224 (5.69) Lead Coplanarity : 0.004 (0.10) MAX
Note: All dimensions are in inches (millimeters)
©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com HCPL062N Rev. 1.0.0
Page Summary Contents For FAIRCHILD HCPL062N 3.3V Dual Channel High-Speed Optocoupler Logic Gates Datasheet
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 13 |
| File Size | 577.50 KB |
| Published | July 07, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What setup components are required for safe operation?
A 0.1µF bypass capacitor must be connected between pins 8 and 5, placed within 3mm of the V and GND pins.
What is the maximum common mode rejection offered by this device?
It provides a superior Common Mode Rejection Ratio of 25kV/µs minimum.
Can I use this optocoupler in life support medical devices?
No, these products require express written approval and are not authorized for use as critical components in life support systems.
What types of applications is the HCPL062N suitable for?
Recommended applications include ground loop elimination, field buses, data multiplexing, line receivers, and power supplies.
