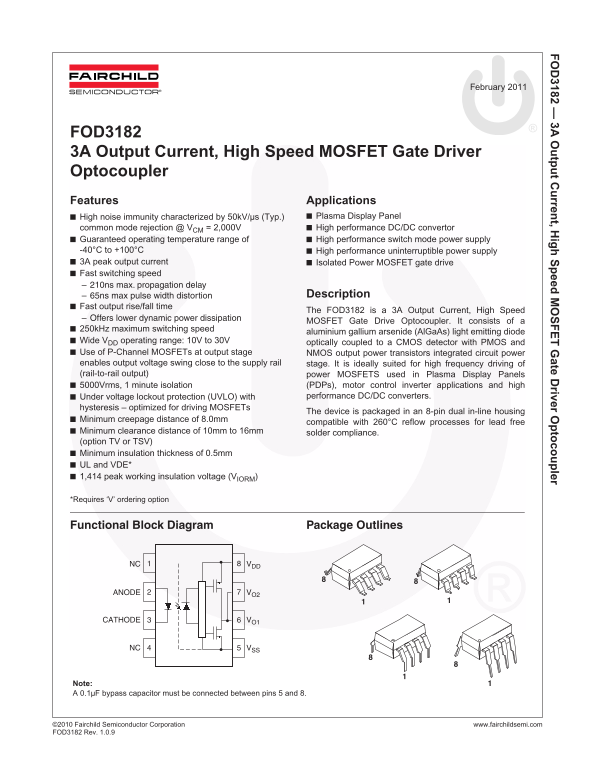

FAIRCHILD FOD3182 3A Output Current, High Speed MOSFET Gate Driver Optocoupler User Manual
Summary
Discover this high-speed optocoupler and 3A output current MOSFET gate driver, ideal for critical power management applications. This device features excellent noise immunity, fast switching speed, and integrated UVLO protection. The manual provides comprehensive technical data, including safety compliance, electrical ratings, and architectural details. It is essential for engineers developing sophisticated systems such as plasma display panels, motor control inverters, and high-performance DC/DC converters.
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 23 |
| File Size | 649.17 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What circuit applications is this optocoupler designed for?
It is ideally suited for Plasma Display Panels, motor control inverters, and high performance DC/DC converters.
What are the guaranteed operating temperature limits?
The device has a guaranteed operating temperature range of -40°C to +100°C.
Is an external capacitor required for proper function?
Yes, a 0.1µF bypass capacitor must be connected between pins 5 and 8.
What is the maximum insulation voltage rating?
The highest allowable over-voltage (IOTM peak) is 6000V.
