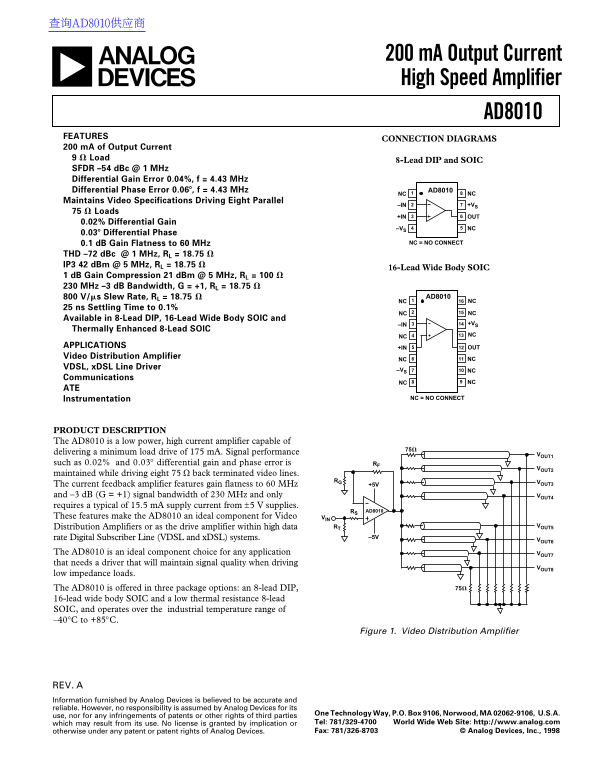

AD8010 200mA Output Current High-Speed Amplifier Data Sheet Manual User Guide

查询AD8010供应商

200 m A Output Current High Speed Amplifier

AD8010

FEATURES

CONNECTION DIAGRAMS

200 m A of Output Current 9 V Load

8-Lead DIP and SOIC

SFDR –54 d Bc @ 1 MHz Differential Gain Error 0.04%, f = 4.43 MHz Differential Phase Error 0.068, f = 4.43 MHz AD8010

NC NC

Maintains Video Specifications Driving Eight Parallel

–IN +VS

75 V Loads

+IN OUT

0.02% Differential Gain

NC–VS

0.038 Differential Phase

0.1 d B Gain Flatness to 60 MHz NC = NO CONNECT

THD –72 d Bc @ 1 MHz, RL = 18.75 V IP3 42 d Bm @ 5 MHz, RL = 18.75 V

16-Lead Wide Body SOIC

1 d B Gain Compression 21 d Bm @ 5 MHz, RL = 100 V 230 MHz –3 d B Bandwidth, G = +1, RL = 18.75 V

800 V/ms Slew Rate, RL = 18.75 V AD8010

NC NC

25 ns Settling Time to 0.1%

NC NC

Available in 8-Lead DIP, 16-Lead Wide Body SOIC and

–IN +VS

Thermally Enhanced 8-Lead SOIC

NC NC

APPLICATIONS +IN OUT Video Distribution Amplifier

NC NC

VDSL, x DSL Line Driver

–VS NC

Communications

NC NC

Instrumentation NC = NO CONNECT

PRODUCT DESCRIPTION The AD8010 is a low power, high current amplifier capable of

delivering a minimum load drive of 175 m A. Signal performance VOUT1 such as 0.02% and 0.03° differential gain and phase error is RF

VOUT2

maintained while driving eight 75 Ω back terminated video lines.

RG VOUT3

The current feedback amplifier features gain flatness to 60 MHz +5V and –3 d B (G = +1) signal bandwidth of 230 MHz and only VOUT4 requires a typical of 15.5 m A supply current from ±5 V supplies.

RS AD8010

These features make the AD8010 an ideal component for Video VIN

Distribution Amplifiers or as the drive amplifier within high data RT VOUT5

rate Digital Subscriber Line (VDSL and x DSL) systems. –5V

VOUT6

The AD8010 is an ideal component choice for any application VOUT7 that needs a driver that will maintain signal quality when driving

VOUT8

low impedance loads.

The AD8010 is offered in three package options: an 8-lead DIP, 75V

16-lead wide body SOIC and a low thermal resistance 8-lead SOIC, and operates over the industrial temperature range of –40°C to +85°C.

Figure 1. Video Distribution Amplifier
