Fairchild FOD3150 High Noise Immunity Optocoupler with 1.0A Output Current and Gate Drive Features

Summary

The FOD3150 is a high-performance optocoupler designed for isolated gate driving of IGBT/MOSFET power systems. Featuring exceptional noise immunity (20kV/µs) and a 1.0A output current, it is ideal for fast-switching industrial inverters, uninterruptible power supplies, and motor control applications up to the 800V class. This manual provides complete technical specifications, including detailed safety ratings, absolute maximum limits, electrical characteristics, and assembly profiles required for reliable integration into demanding industrial equipment.

📄 Preview PAGE OF 19

Page 1 Text Content

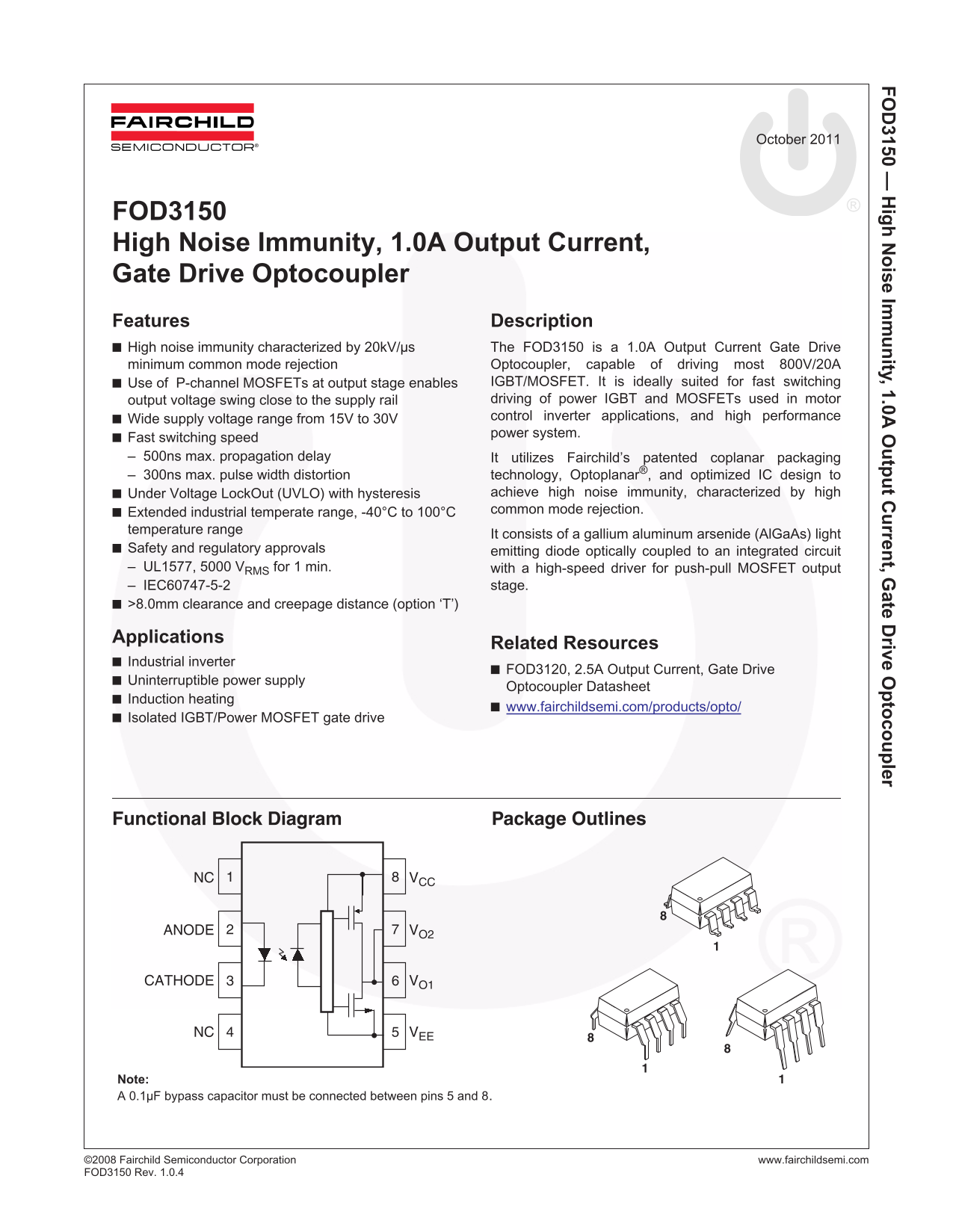

3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler

October 2011

FOD3150 High Noise Immunity, 1.0A Output Current, Gate Drive Optocoupler Features Description High noise immunity characterized by 20k V/µs The FOD3150 is a 1.0A Output Current Gate Drive minimum common mode rejection Optocoupler, capable of driving most 800V/20A

Use of P-channel MOSFETs at output stage enables IGBT/MOSFET. It is ideally suited for fast switching output voltage swing close to the supply rail driving of power IGBT and MOSFETs used in motor Wide supply voltage range from 15V to 30V control inverter applications, and high performance power system.

Fast switching speed – 500ns max. propagation delay It utilizes Fairchild’s patented coplanar packaging

– 300ns max. pulse width distortion technology, Optoplanar , and optimized IC design to Under Voltage Lock Out (UVLO) with hysteresis achieve high noise immunity, characterized by high Extended industrial temperate range, -40°C to 100°C common mode rejection.

temperature range

It consists of a gallium aluminum arsenide (Al Ga As) light

Safety and regulatory approvals emitting diode optically coupled to an integrated circuit – UL1577, 5000 V for 1 min. with a high-speed driver for push-pull MOSFET output

– IEC60747-5-2 stage.

>8.0mm clearance and creepage distance (option ‘T’)

Applications

Related Resources

Industrial inverter

FOD3120, 2.5A Output Current, Gate Drive

Uninterruptible power supply

Optocoupler Datasheet

Induction heating

www.fairchildsemi.com/products/opto/

Isolated IGBT/Power MOSFET gate drive

Functional Block Diagram Package Outlines

NC VCC

ANODE VO2

CATHODE VO1

NC VEE

Note: A 0.1µF bypass capacitor must be connected between pins 5 and 8.

©2008 Fairchild Semiconductor Corporation www.fairchildsemi.com FOD3150 Rev. 1.0.4

Page Summary Contents For Fairchild FOD3150 High Noise Immunity Optocoupler with 1.0A Output Current and Gate Drive Features

Page 1 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler October 2011 FOD3150 High Noise Immunity, 1.0A Output Current, Gate Drive Optocoupler Features Description High noise immunity charac...
Page 2 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Truth Table VCC – VEE “Positive Going” VCC – VEE “Negative Going” LED (Turn-on) (Turn-off) VO Off 0V to 30V 0V to 30V Low On 0V to 11...
Page 3 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Safety and Insulation Ratings As per IEC 60747-5-2. This optocoupler is suitable for “safe electrical insulation” only within the saf...
Page 4 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Absolute Maximum Ratings (TA = 25ºC unless otherwise specified) Stresses exceeding the absolute maximum ratings may damage the device...
Page 5 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Electrical Characteristics Apply over all recommended conditions, typical value is measured at VCC = 30V, VEE = Ground, TA = 25°C unl...
Page 6 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Switching Characteristics Apply over all recommended conditions, typical value is measured at VCC = 30V, VEE = Ground, TA = 25°C unle...
Page 7 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Typical Performance Curves LT (V LY (m IG LT (V Fig. 2 Output High Voltage Drop vs. Ambient Temperature Fig. 1 Output High Voltage Dr...
Page 8 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Typical Performance Curves (Continued) IO LA (n s) IO LA (n s) IG LD (m Fig. 7 Low to High Input Current Threshold vs. Fig. 8 Propaga...
Page 9 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Typical Performance Curves (Continued) Fig. 13 Transfer Characteristics Fig. 14 Input Forward Current vs. Forward Voltage 25°C TP (V ...
Page 10 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Test Circuit Power Supply VCC = 15V to 30V Pulse Generator PW = 4.99ms Period = 5ms Pulse-In ROUT = 50Ω Power Supply VOL D1 LED-IFmon...
Page 11 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Test Circuit (Continued) IF = 7 to 16m A VCC = 15 to 30V+ Figure 22. VOH Test Circuit VCC = 15 to 30V+ Figure 23. VOL Test Circuit ©2...
Page 12 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Test Circuit (Continued) IF = 7 to 16m A VCC = 30V+ Figure 24. ICCH Test Circuit VF = 0 to 0.8V VCC = 30V+ Figure 25. ICCL Test Circu...
Page 13 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Test Circuit (Continued) VCC = 15 to 30V+ VO > 5V 3 Figure 26. IFLH Test Circuit VF = 0 to 0.8V VCC = 15 to 30V+ Figure 27. VFHL T...
Page 14 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Test Circuit (Continued) VCC = 15 to 30V+ –+ Rg = 20Ω Probe F = 10k Hz DC = 50% Cg = 10n F tr tf VOUT 10% t PLH t PHL Figure 29. t PH...
Page 15 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Package Dimensions IN LA Through Hole 0.4" Lead Spacing PIN 1 ID. PIN 1 ID. 0.200 (5.08) 0.020 (0.51) MIN 0.154 (3.90) 0.004 (0....
Page 16 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Ordering Information Part Number Package Packing Method FOD3150 DIP 8-Pin Tube (50 units per tube) FOD3150S SMT 8-Pin (Lead Bend) Tub...
Page 17 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Carrier Tape Specifications User Direction of Feed Symbol Description Dimension in mm Tape Width 16.0 ± 0.3 Tape Thickness 0.30 ± 0.0...
Page 18 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler Reflow Profile 260 C peak em er at re °C Time above 183 C, <160 sec Ramp up = 2–10 C/sec Time (Minute) • Peak reflow temperature: ...
Page 19 3150 — ig ise Im ity, 1.0A tp t C rren t, G ate D rive O to co ler ©2008 Fairchild Semiconductor Corporation www.fairchildsemi.com FOD3150 Rev. 1.0.4
