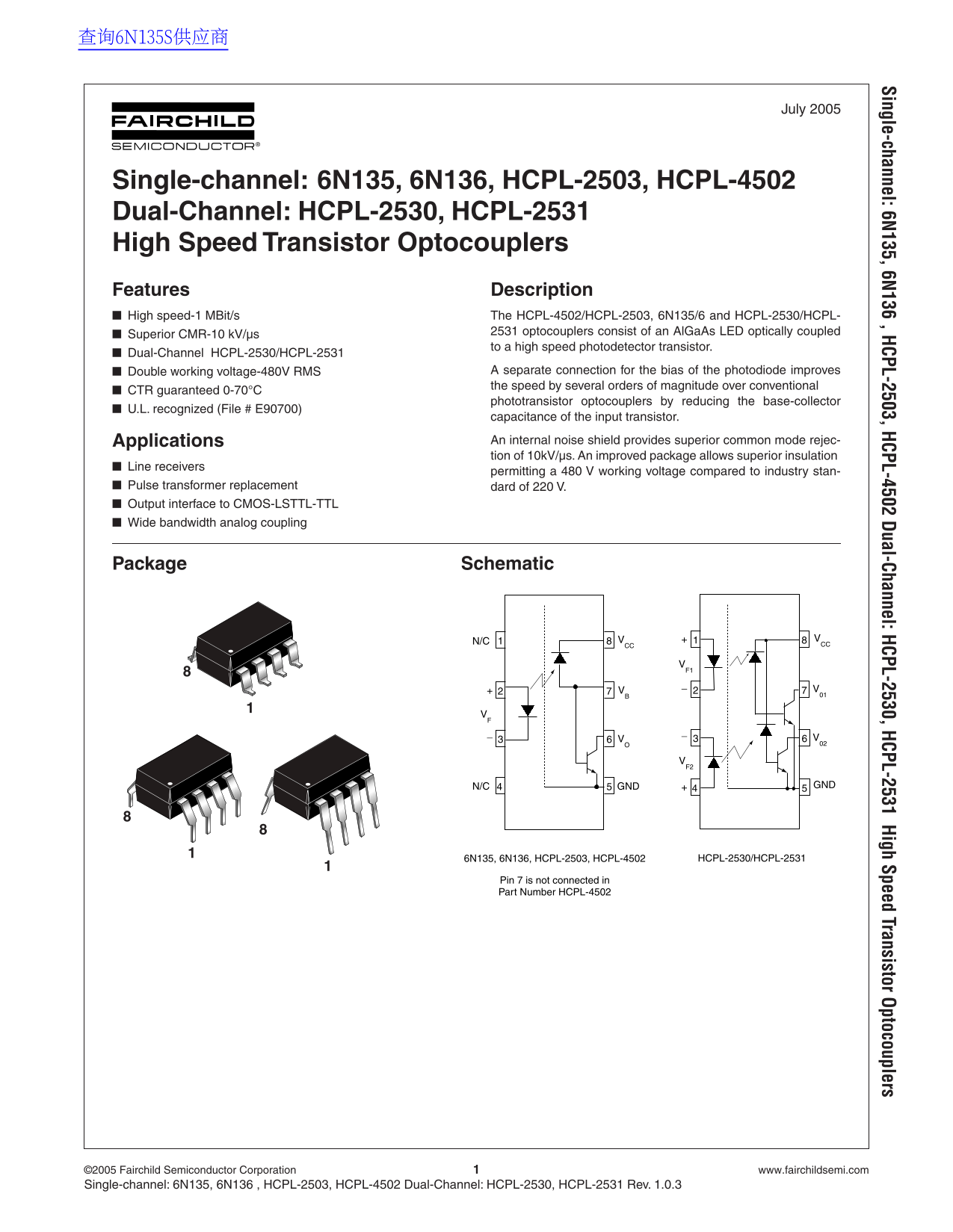

查询6N135S供应商 Single-channel: 6N135, 6N136 , HCPL-2503, HCPL-4502 Dual-Channel: HCPL-2530, HCPL-2531 High Speed Transistor Optocouplers
July 2005
Single-channel: 6N135, 6N136, HCPL-2503, HCPL-4502 Dual-Channel: HCPL-2530, HCPL-2531 High Speed Transistor Optocouplers Features Description High speed-1 MBit/s The HCPL-4502/HCPL-2503, 6N135/6 and HCPL-2530/HCPL-
2531 optocouplers consist of an Al Ga As LED optically coupled
Superior CMR-10 k V/µs
to a high speed photodetector transistor.
Dual-Channel HCPL-2530/HCPL-2531
Double working voltage-480V RMS A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional
CTR guaranteed 0-70°C
phototransistor optocouplers by reducing the base-collector
U.L. recognized (File # E90700)
capacitance of the input transistor. Applications An internal noise shield provides superior common mode rejec- tion of 10k V/µs. An improved package allows superior insulation
Line receivers
permitting a 480 V working voltage compared to industry stan-
Pulse transformer replacement dard of 220 V. Output interface to CMOS-LSTTL-TTL Wide bandwidth analog coupling
Package Schematic
N/C 8+ CC
GNDN/C GND
6N135, 6N136, HCPL-2503, HCPL-4502 HCPL-2530/HCPL-2531
Pin 7 is not connected in Part Number HCPL-4502
©2005 Fairchild Semiconductor Corporation www.fairchildsemi.com Single-channel: 6N135, 6N136 , HCPL-2503, HCPL-4502 Dual-Channel: HCPL-2530, HCPL-2531 Rev. 1.0.3
