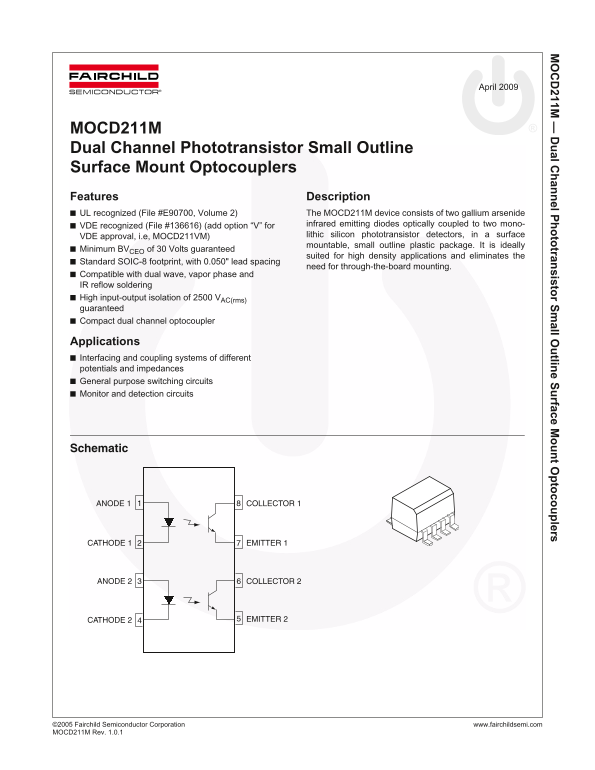

MCOD211M Fairchild Dual Channel Phototransistor Data Sheet, Small Outline Surface Mount Optocouplers User Manual
Summary
This dual-channel surface mount optocoupler provides robust signal isolation for interfacing systems of different potentials and impedances. Designed for high-density switching and monitoring circuits, it features two channels in a compact SOIC package with guaranteed 2500 V AC input-output isolation. The technical documentation is mandatory reading for electronics engineers and circuit designers, supplying comprehensive electrical characteristics, absolute maximum ratings, and detailed performance curves necessary for reliable system development.
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 10 |
| File Size | 254.49 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the electrical isolation capability of this device?
It guarantees a high input-output isolation voltage of 2500 Vac(rms) at 60Hz for 1 minute.
What size footprint is required for mounting this optocoupler?
It uses a standard SOIC-8 footprint with 0.050 inch lead spacing, suitable for through-the-board mounting.
Over what temperature range does the MOCD211M operate and store?
The ambient operating temperature range is -40 to +100 °C, and the storage temperature range is -40 to +150 °C.
What are the continuous maximum current ratings for the emitter and detector?
The continuous forward current (Emitter) rating is 60 mA, and the continuous collector current (Detector) is 150 mA.
