This specification manual details the industry standard for Surface Mount Tape and Reel packaging, essential for high-volume electronics manufacturing and automated circuit board assembly systems. It provides comprehensive guidelines for various component formats (SO-IC, PLCC) to maximize efficiency and simplify handling by pick-and-place machinery. Designed specifically for electronic manufacturers, these reliable tapes ensure quick integration, minimize static discharge risks, and maintain full compliance with standard industry specifications.

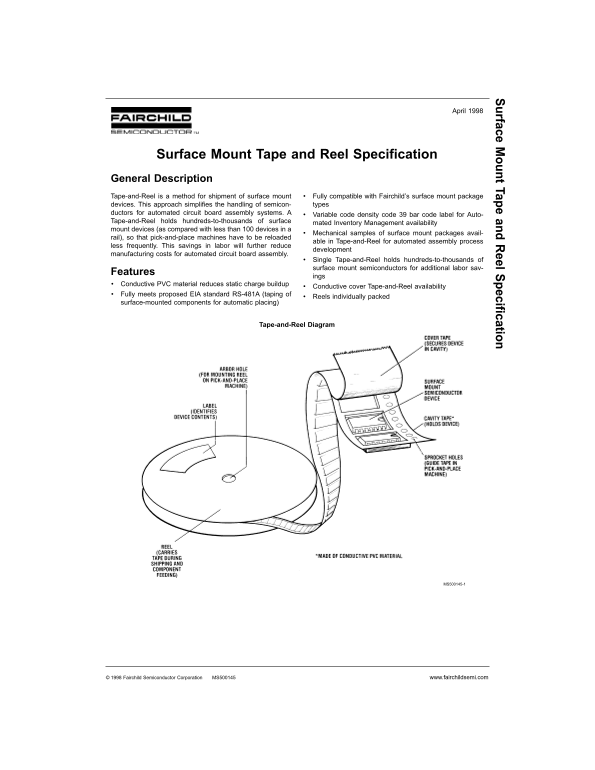

Page 1 Text Content
urface ount Tape and eel S pecification
April
Surface Mount Tape and Reel Specification General Description Tape-and-Reel is method for shipment of surface mount Fully compatible with Fairchild’s surface mount package
devices. This approach simplifies the handling of semicon- types ductors for automated circuit board assembly systems. Variable code density code bar code label for Auto- Tape-and-Reel holds hundreds-to-thousands of surface mated Inventory Management availability mount devices (as compared with less than devices in
Mechanical samples of surface mount packages avail-
rail), so that pick-and-place machines have to be reloaded
able in Tape-and-Reel for automated assembly process
less frequently. This savings in labor will further reduce
development
manufacturing costs for automated circuit board assembly.
Single Tape-and-Reel holds hundreds-to-thousands of surface mount semiconductors for additional labor sav-
Features
Conductive PVC material reduces static charge buildup
Conductive cover Tape-and-Reel availability
Fully meets proposed EIA standard RS-481A (taping of
Reels individually packed
surface-mounted components for automatic placing)
Tape-and-Reel Diagram
MS500145-1
Fairchild Semiconductor Corporation MS500145 www.fairchildsemi.com
Page Summary Contents For Fairchild Surface Mount Tape and Reel Specification Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 20 |
| File Size | 538.80 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the primary components used in the Tape-and-Reel packaging?
Materials include Conductive PVC for the Cavity Tape, Polyester for the Cover Tape, and Fibreboard (Solid or Conductive) for the Reel.
How does Tape-and-Reel simplify automated circuit board assembly?
It simplifies handling of semiconductor devices, allowing pick-and-place machines to reload less frequently compared to traditional mechanical rails.
Does this packaging method meet any industry standards?
Yes, it fully meets the proposed EIA standard RS-481A for taping of surface-mounted components.
