Fairchild Surface Mount LED Lamp Power PLCC-4 Q TLPL673C Data Sheet
Summary
These high-power, ultra-bright surface mount LED lamps are designed for reliable indicator lighting and sophisticated backlighting applications across automotive and consumer electronics sectors. Available in multiple distinct colors, they feature a flat construction ideal for automated pick-and-place manufacturing processes. This manual provides comprehensive technical data, including electrical ratings, detailed optical characteristics, mounting specifications, and performance curves to ensure optimal integration into your electronic designs.

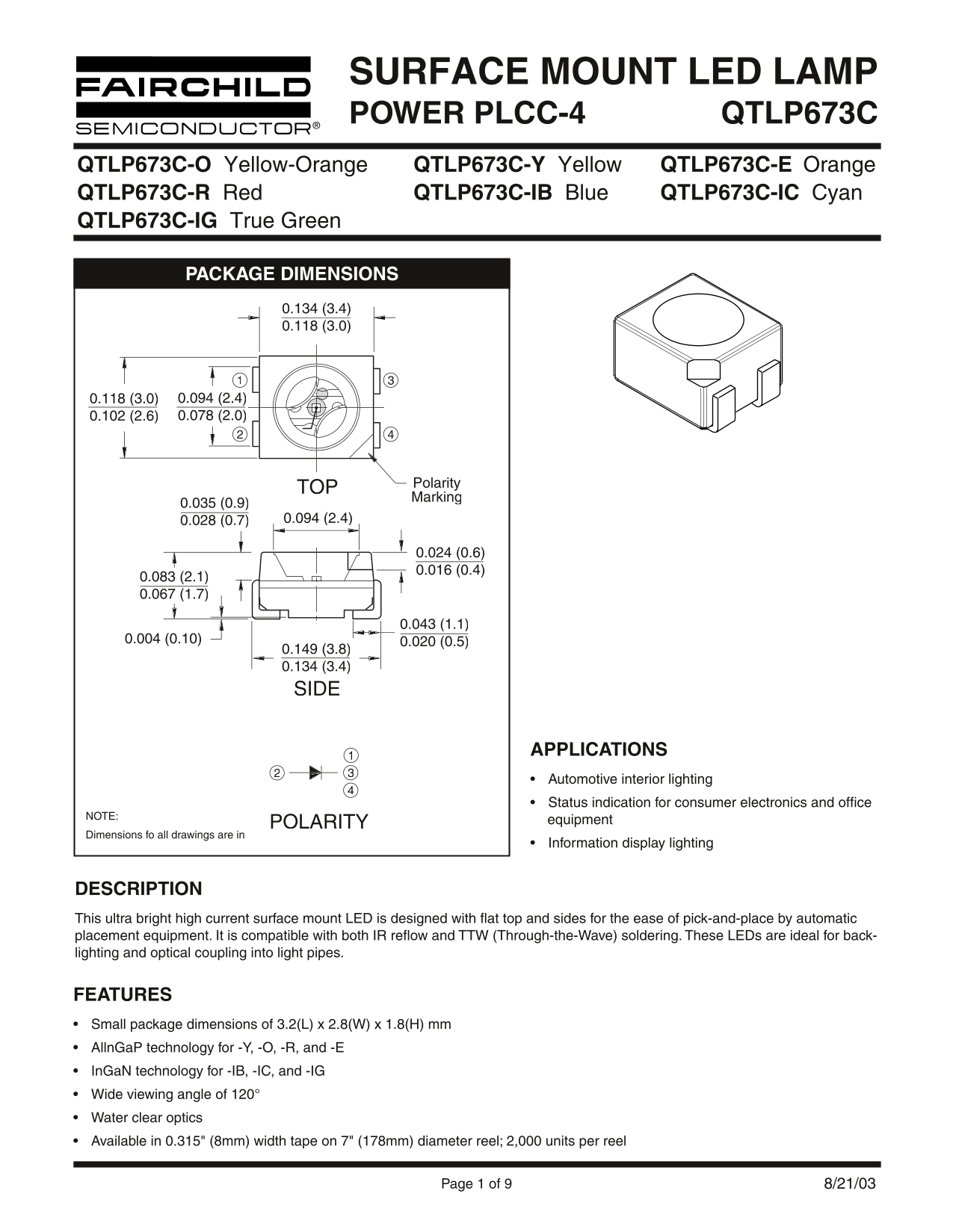

Page 1 Text Content
SURFACE MOUNT LED LAMP POWER PLCC-4 QTLP673C
QTLP673C-O Yellow-Orange QTLP673C-Y Yellow QTLP673C-E Orange QTLP673C-R Red QTLP673C-IB Blue QTLP673C-IC Cyan QTLP673C-IG True Green
PACKAGE DIMENSIONS
Polarity Marking0.035 (0.9)
0.149 (3.8) 0.134 (3.4) SIDE
APPLICATIONS Automotive interior lighting Status indication for consumer electronics and office
NOTE:
POLARITY equipment
Dimensions fo all drawings are in
Information display lighting
DESCRIPTION This ultra bright high current surface mount LED is designed with flat top and sides for the ease of pick-and-place by automatic placement equipment. It is compatible with both IR reflow and TTW (Through-the-Wave) soldering. These LEDs are ideal for back- lighting and optical coupling into light pipes.
FEATURES Small package dimensions of 3.2(L) x 2.8(W) x 1.8(H) mm Alln Ga P technology for -Y, -O, -R, and -E In Ga N technology for -IB, -IC, and -IG Wide viewing angle of 120° Water clear optics Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel
Page 1 of 9 8/21/03
