This super bright, water clear LED lamp provides reliable, high-intensity red lighting for demanding outdoor applications. This technical datasheet is essential documentation for engineers and specifiers integrating advanced illumination components. It covers comprehensive electrical and optical characteristics, including absolute maximum ratings, performance curves, current derating data, typical operating voltage ranges, and specific luminous intensity details to ensure optimal product design and integration.

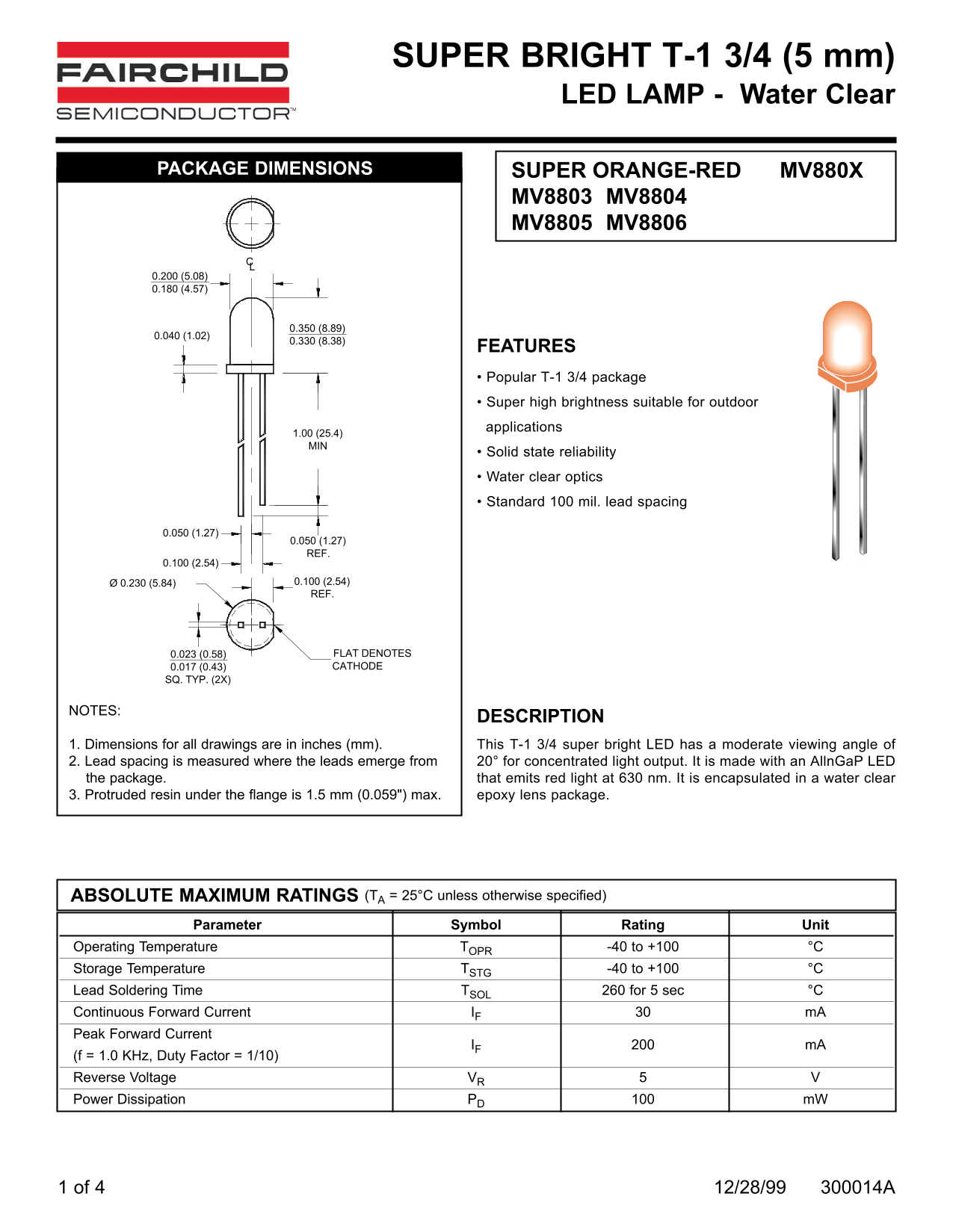

Page 1 Text Content
SUPER BRIGHT T-1 3/4 (5 mm)
LED LAMP - Water Clear
PACKAGE DIMENSIONS SUPER ORANGE-RED MV880X
MV8803 MV8804 MV8805 MV8806
FEATURES • Popular T-1 3/4 package • Super high brightness suitable for outdoor applications
1.00 (25.4) MIN
• Solid state reliability • Water clear optics • Standard 100 mil. lead spacing
0.050 (1.27) REF.
Ø 0.230 (5.84) 0.100 (2.54) REF.
0.023 (0.58) FLAT DENOTES 0.017 (0.43) CATHODE
SQ. TYP. (2X)
NOTES:
DESCRIPTION
1. Dimensions for all drawings are in inches (mm). This T-1 3/4 super bright LED has a moderate viewing angle of 2. Lead spacing is measured where the leads emerge from 20° for concentrated light output. It is made with an Alln Ga P LED the package. that emits red light at 630 nm. It is encapsulated in a water clear 3. Protruded resin under the flange is 1.5 mm (0.059") max. epoxy lens package.
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified)
Parameter Symbol Rating Unit
Operating Temperature TOPR -40 to +100 °C Storage Temperature TSTG -40 to +100 °C Lead Soldering Time TSOL 260 for 5 sec °C Continuous Forward Current IF m A Peak Forward Current
IF m A
(f = 1.0 KHz, Duty Factor = 1/10) Reverse Voltage VR Power Dissipation PD m W
1 of 4 12/28/99 300014A
Page Summary Contents For Fairchild Super Bright T-1 3 4 5 mm LED Lamp - Water Clear Technical Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 4 |
| File Size | 126.73 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum continuous forward current allowed?
The recommended limit for continuous forward current is 30 mA.
Is this lamp suitable for use in life support systems?
No, Fairchild's products are not authorized for use as critical components in life support devices or systems without express written approval.
How long can the leads be soldered?
The recommended lead soldering time is 260 degrees Celsius for 5 seconds.
What viewing angle does this LED lamp have?
It has a moderate viewing angle of 20 degrees typical for concentrated light output.
